Поз.
Артикул
Описание

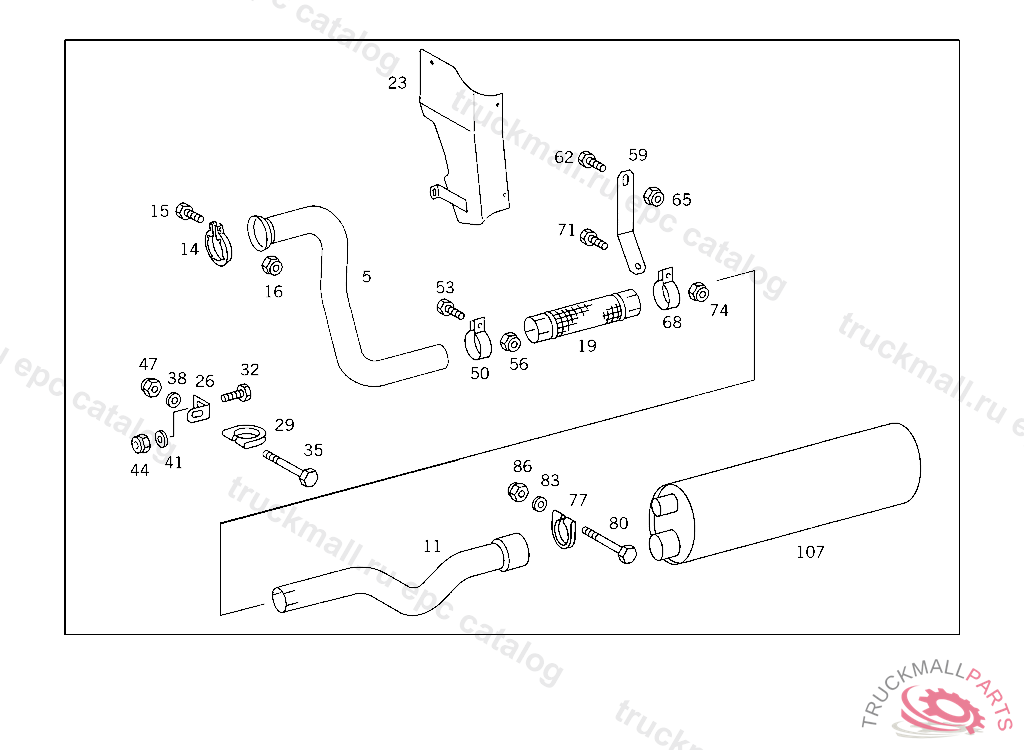

5
FRONT EXHAUST PIPE FRONT, FIRST PART
5
EXHAUST PIPE , Replaced By: A6734926101
11
FRONT EXHAUST PIPE FRONT,SECOND PART, RECOMMENDED FOR TAKING ON STOCK
14
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
15
SCREW BRACKET TO FRAME M 8X35
16
NUT BRACKET TO BRACKET
19
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE
23
PROTECTIVE PLATE FRONT EXHAUST PIPE, RECOMMENDED FOR TAKING ON STOCK
26
BRACKET FRONT EXHAUST PIPE, RECOMMENDED FOR TAKING ON STOCK
29
CLAMP REAR EXHAUST PIPE TO MUFFLER
32
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
35
SCREW , Replaced By: N910143008014
35
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
38
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
38
WASHER , Replaced By: N006902011102
38
WASHER , Replaced By: N006902011100
41
WASHER , Replaced By: N009021008213
41
WASHER BRACKET TO LEFT SIDE MEMBER
41
WASHER BRACKET TO CAB REAR PANEL
44
NUT BRACKET TO BRACKET
47
NUT , Replaced By: N913023010002
47
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
53
SCREW EXHAUST PIPE TO SIDE MEMBER
56
NUT , Replaced By: N913023010002
56
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
59
BRACKET EXHAUST PIPE TO CROSS MEMBER, RECOMMENDED FOR TAKING ON STOCK
62
SCREW EXHAUST PIPE TO SIDE MEMBER
65
NUT , Replaced By: N913023010002
65
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
68
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
71
SCREW , Replaced By: N910105010011
71
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
74
NUT , Replaced By: N913023010002
74
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
77
CLAMP EXHAUST PIPE TO MUFFLER
80
SCREW FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER
83
WASHER EXHAUST MUFFLER TO STRAP
83
WASHER , Replaced By: N000125008443
86
NUT BRACKET TO BRACKET
107
EXHAUST MUFFLER , NOT USED
