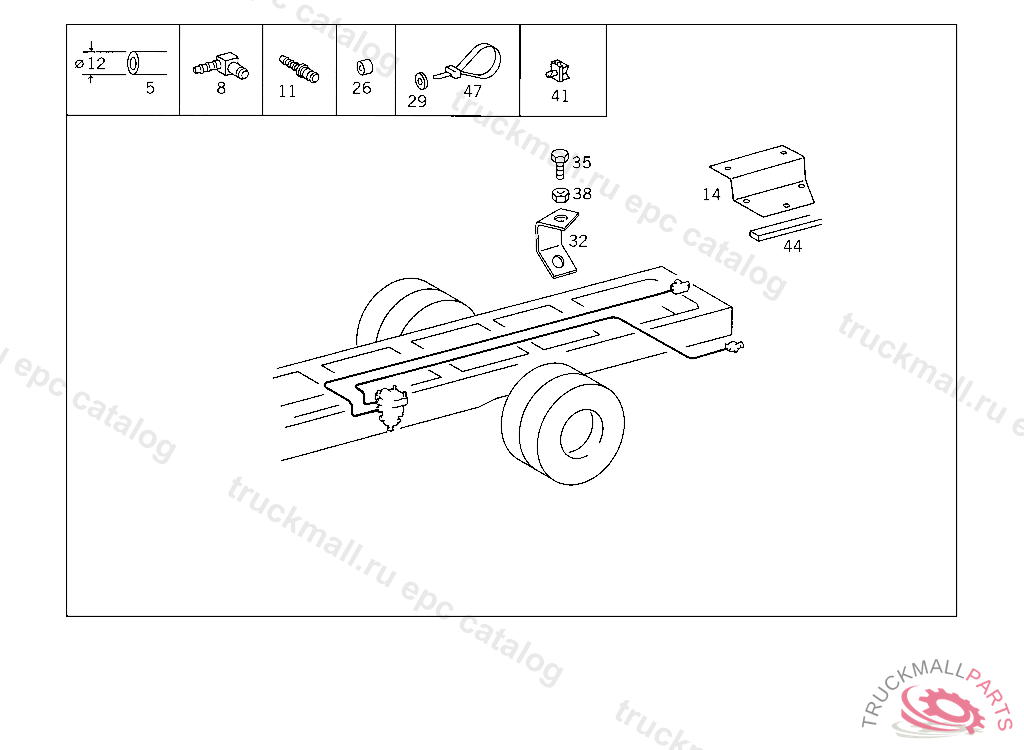

Поз.
Артикул
Описание
5
HOSE , Replaced By: A0009872827
5
FITTING (PARTS KIT),LINE RUPTURE
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
8
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
11
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
14
BRACKET BRACKET TO CAB CONSOLE
26
RUBBER BUFFER LINE MOUNTING
29
WASHER , Replaced By: A3609902340
29
WASHER BRACKET TO LEFT SIDE MEMBER
32
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
35
SCREW END PIECE TO EXHAUST PIPE M 10X25
38
NUT STRAP TO BRACKET
38
NUT , Replaced By: N910113010000
41
BRACKET RUBBER BUFFER TO BRACKET
44
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
44
EDGE GUARD SECTION , Replaced By: A0029873572
44
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
47
LOOM TIE LINE MOUNTING 280 MM
47
LOOM TIE LINE MOUNTING
999
BRACKET BRAKE BOOSTER ASSEMBLY, NOT USED
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
999
FITTING BRAKE LINE COUPLING,CONNECTION: "10",5 180857
999
WASHER , Replaced By: A3609902340
