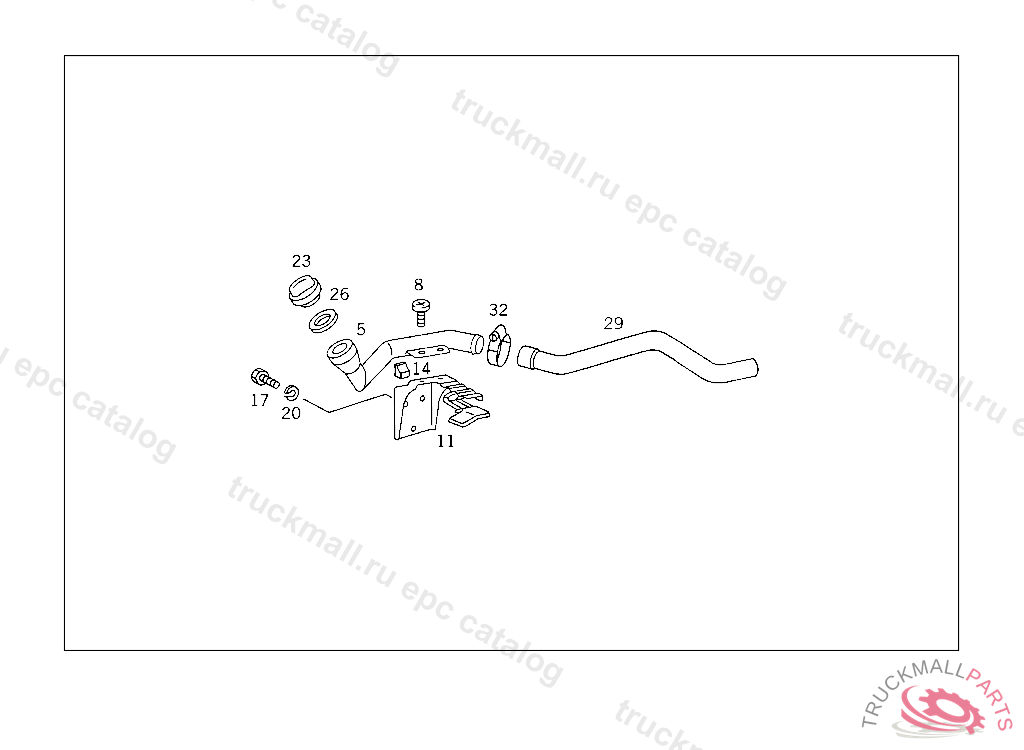

Поз.
Артикул
Описание
5
PIPE ,5 293767
5
OIL FILLER NECK , Replaced By: A3640180304
8
SCREW OIL FILLER NECK TO BRACKET,5 458408
8
SCREW OIL FILLER NECK TO BRACKET,5 458407
8
SCREW , Replaced By: N007985008182
11
BRACKET OIL FILLER PIPE TO RADIATOR
11
BRACKET ,5 458407, Replaced By: A3640101640, +002A6739900301
11
BRACKET , Replaced By: A3660100640
11
BRACKET ,5 293766, Replaced By: A3640100440, +001A3520100468, +001A3640180304
14
SHIM OIL FILLER PIPE TO RADIATOR
17
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
SCREW , Replaced By: N304017008016
20
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
23
CAP OIL REFILLING,5 293767
23
CAP OIL REFILLING
23
CAP OIL REFILLING
23
CAP OIL REFILLING
26
GASKET
26
GASKET , Replaced By: A1020180380
26
GASKET , Replaced By: A1020180080
29
HOSE FROM OIL FILLER NECK TO OIL PAN,K 056865
29
HOSE FROM OIL FILLER NECK TO OIL PAN,K 056865
29
HOSE , Replaced By: A3660181782
29
HOSE FROM OIL FILLER NECK TO OIL PAN
32
CLAMP
32
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
32
CLAMP
32
CLAMP , Replaced By: N000000000670
