Поз.
Артикул
Описание
5

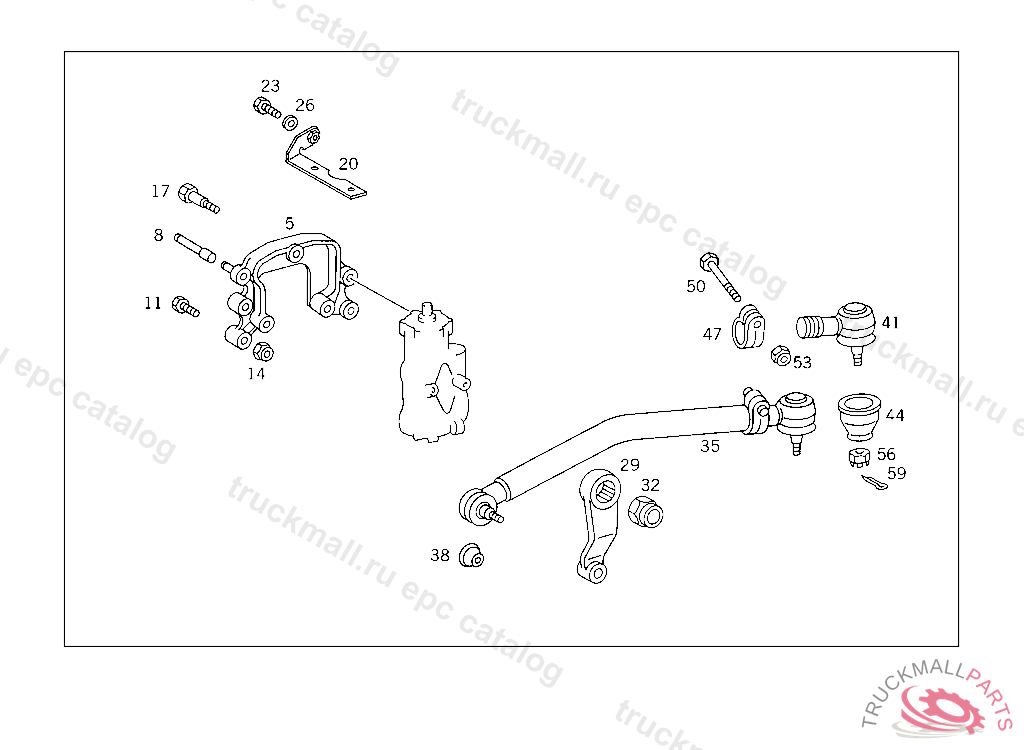

STEERING SUPPORT (STEERING BRACKET)
5
STEERING BRACKET
8
PIN
11
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
11
SCREW , Replaced By: N000960016206
14
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
14
NUT COMBINATION CYLINDER TO BEARING BRACKET
17
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
17
SCREW , Replaced By: N308676016007
17
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
17
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
29
PITMAN ARM ,5 424630
29
PITMAN ARM ,5 424630
32
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
35
DRAG LINKLEMFOERDER,5 424630
35
DRAG LINKEHRENREICH,5 424630
35
DRAG LINKLEMFOERDER,5 424630
35
DRAG LINKEHRENREICH,5 424630
38
BOOT FIXED PART OF JOINT
41
DRAG LINK END ,K 055088
41
DRAG LINK END TO BE SCREWED INTO DRAG LINK EHRENREICH
44
BOOT SCREWED PART OF JOINT
47
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
47
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
50
SCREW TORSION BAR TO SHACKLE,5 903514
50
SCREW ,5 903514, Replaced By: N000960012353
53
NUT , Replaced By: N910113012003
53
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
56
NUT , Replaced By: N000979020000
56
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
59
COTTER PINROCKINGER TYP 260 G140
