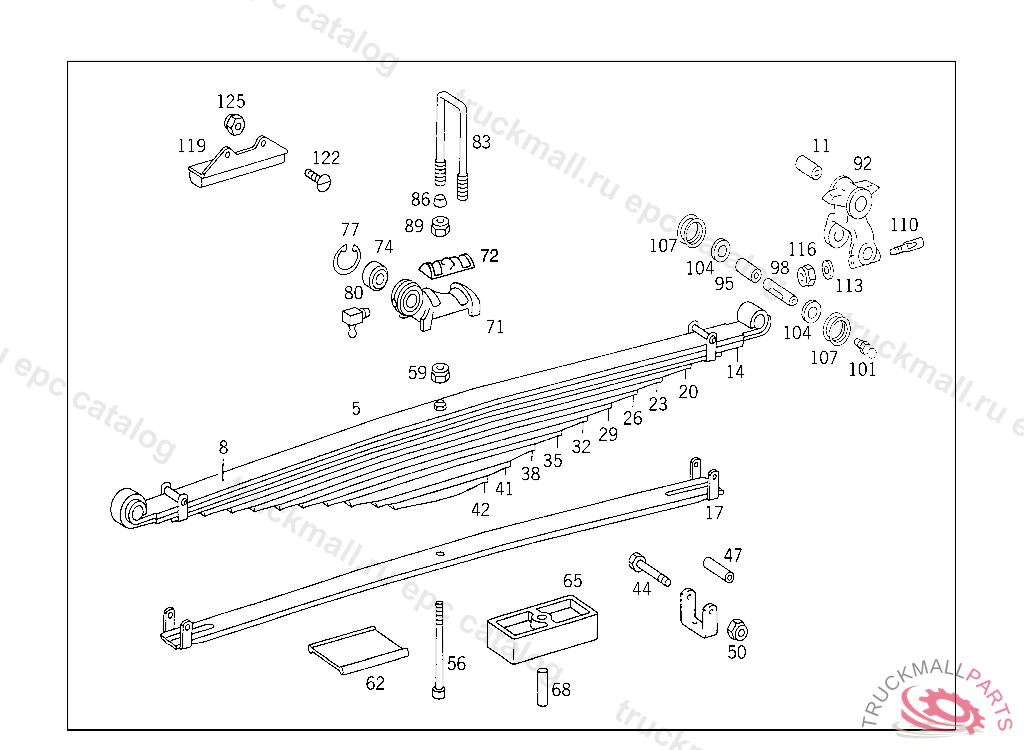

Поз.
Артикул
Описание
5
REAR SPRING 11-LEAF,D 010626
5
REAR SPRING 12-LEAF,010627
5
REAR SPRING 11-LEAF
5
REAR SPRING
8
SPRING LEAFNO.1,TO 345 320 75 06
8
SPRING LEAFNO.1
11
BUSHING
11
BUSHING
14
SPRING LEAFNO.2
14
SPRING LEAFNO.2,TO 345 320 75 06
17
SPRING LEAFNO.3,TO 345 320 75 06
17
SPRING LEAFNO.3
20
SPRING LEAFNO.4,TO 345 320 75 06
20
SPRING LEAFNO.4,TO 352 320 04 06
23
SPRING LEAFNO.5,TO 345 320 75 06
23
SPRING LEAFNO.5,TO 352 320 04 06
26
SPRING LEAFNO.6,TO 345 320 75 06
26
SPRING LEAFNO.6,TO 352 320 04 06
29
SPRING LEAFNO.7
29
SPRING LEAFNO.7,TO 345 320 75 06
32
SPRING LEAFNO.8,TO 352 320 04 06
32
SPRING LEAFNO.8,TO 345 320 75 06
35
SPRING LEAFNO.9,TO 345 320 75 06
35
SPRING LEAFNO.9,TO 352 320 04 06
38
SPRING LEAFNO.10
38
SPRING LEAFNO.10,TO 345 320 75 06
41
SPRING LEAFNO.11,TO 345 320 75 06
41
SPRING LEAFNO.11
44
SCREW
47
SPACER TUBE EXHAUST PIPE TO BRACKET
50
NUT SPRING CLAMP
56
SPRING BOLT
56
SPRING BOLT FRONT SPRINGS TO FRONT AXLE
56
SPRING BOLTM 12X195,B 969046
59
NUT SPRING BOLT
59
NUT , Replaced By: N910113012005
62
PLASTIC SECTION , ORDER BY THE METER
65
PAD REAR SPRING TO REAR AXLE
68
DOWEL PIN FRONT SPRINGS TO FRONT AXLE 38 MM
71
PLATE TORSION BAR TO REAR AXLE, 752309
72
PLATE REAR SPRING TO REAR AXLE
74
JOINT BEARING TORSION BAR TO LINK,5 903513
74
JOINT BEARING TORSION BAR TO LINK,5 903513
77
LOCK RING TORSION BAR TO LINK,5 903513
80
GREASE NIPPLE
80
GREASE NIPPLE
83
U-BOLT REAR SPRING TO REAR AXLE 400 MM
83
U-BOLT REAR SPRING TO REAR AXLE
83
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510725, +001A6793250031
83
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510625, +001A6793250031
83
U-BOLT REAR SPRING TO REAR AXLE 390 MM
83
U-BOLT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE ONLY REPLACEABLE BY PAIRS5 999999K 000001 - K 028584, Replaced By: A6793510625, +001A6793250031
86
WASHER FRONT SPRINGS TO FRONT AXLE
89
NUT STEERING SUPPORT TO FRAME
89
NUT STABILIZER TO FRONT AXLE
92
SHACKLE REAR SPRING SUSPENSION
95
BUSHING
95
BUSHING
98
SHACKLE PIN REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS
101
GREASE NIPPLE PROTECTIVE TUBE
104
WASHER AS REQUIRED 4.2 MM
104
WASHER AS REQUIRED 4.0 MM
104
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
104
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
107
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
110
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
113
WASHER GROUND CABLE
116
NUT , Replaced By: N910113010000
119
STOP ,944378
119
STOP , USED WITH AIR BRAKE,FROM CHASSIS 588186
122
SCREW RUBBER BUFFER TO FRAME M 10X35,B 990550
122
SCREW RUBBER BUFFER TO FRAME
122
SCREW STOP BUFFER TO FRAME M 10X30
125
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
