Поз.
Артикул
Описание

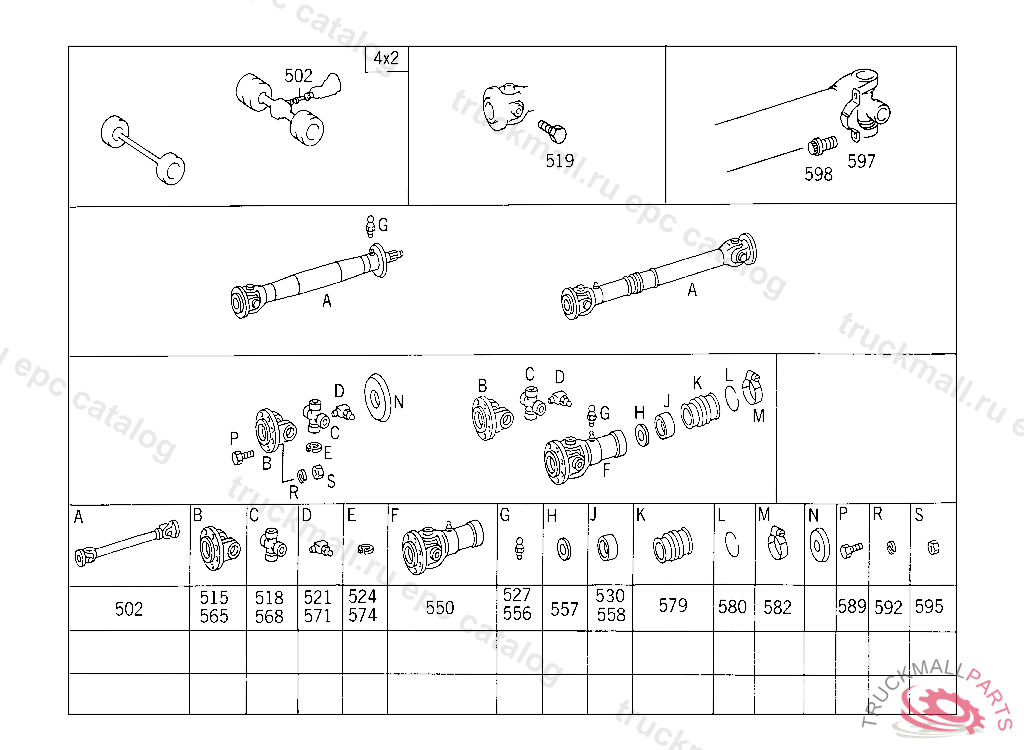

502
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE
502
PROPELLER SHAFT FROM VOITH RETARDER TO REAR AXLE 890 MM
502
PROPELLER SHAFT , Replaced By: A3844103906
502
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 945 MM
515
DRIVE FLANGETO 364 410 01 02,C 069616
515
DRIVE FLANGE
515
DRIVE FLANGE
518
UNIVERSAL JOINT CROSS WITH BUSHINGS
518
UNIVERSAL JOINT CROSS REAR PROPELLER SHAFT KRUPP
518
UNIVERSAL JOINT CROSS WITH BUSHINGS
518
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
519
SCREW
521
GREASE NIPPLE
521
GREASE NIPPLE
521
GREASE NIPPLE
524
LOCK AS REQUIRED 1,75 MM
524
LOCK1.775 MM
524
LOCK AS REQUIRED 1.70 MM
524
LOCK1.750 MM
524
LOCK1.700 MM
524
LOCK AS REQUIRED 1.80 MM
524
LOCK1.825 MM
524
LOCK AS REQUIRED 1.65 MM
524
LOCK1.725 MM
524
LOCK AS REQUIRED 1,90 MM
524
SNAP RING PARTS KIT
524
LOCK AS REQUIRED 1.85 MM
524
LOCK1.800 MM
527
GREASE NIPPLE
530
SEAL RING NOTE THREAD DIAMETER 2 1/2"
550
SLIDE. SLIDING PIECE
550
UNIVERSAL JOINT YOKE
556
GREASE NIPPLE INTERMEDIATE LEVER
556
GREASE NIPPLE
557
SEAL RING NOTE THREAD DIAMETER 2 1/2"
557
GASKET
558
SEAL HOLDER
565
DRIVE FLANGE
568
UNIVERSAL JOINT CROSS WITH BUSHINGS
571
GREASE NIPPLE
571
GREASE NIPPLE
574
LOCK1.700 MM
574
LOCK1.825 MM
574
LOCK1.725 MM
574
LOCK1.800 MM
574
LOCK1.750 MM
579
BOOT
580
CLAMPING RING BOOT TO PROPELLER SHAFT
582
CLAMP. LOOM TIE90-110
582
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
582
CLAMP HOSE 70-90X13 MM
582
LOOM TIE. CLAMP
589
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
592
LOCK WASHER PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
595
NUT PROPELLER SHAFT TO REAR AXLE M 12X1,25
597
CLAMP PROPELLER SHAFT TO TRANSMISSION
597
CLAMP PROPELLER SHAFT TO TRANSMISSION
598
SCREW PROPELLER SHAFT TO TRANSMISSION
