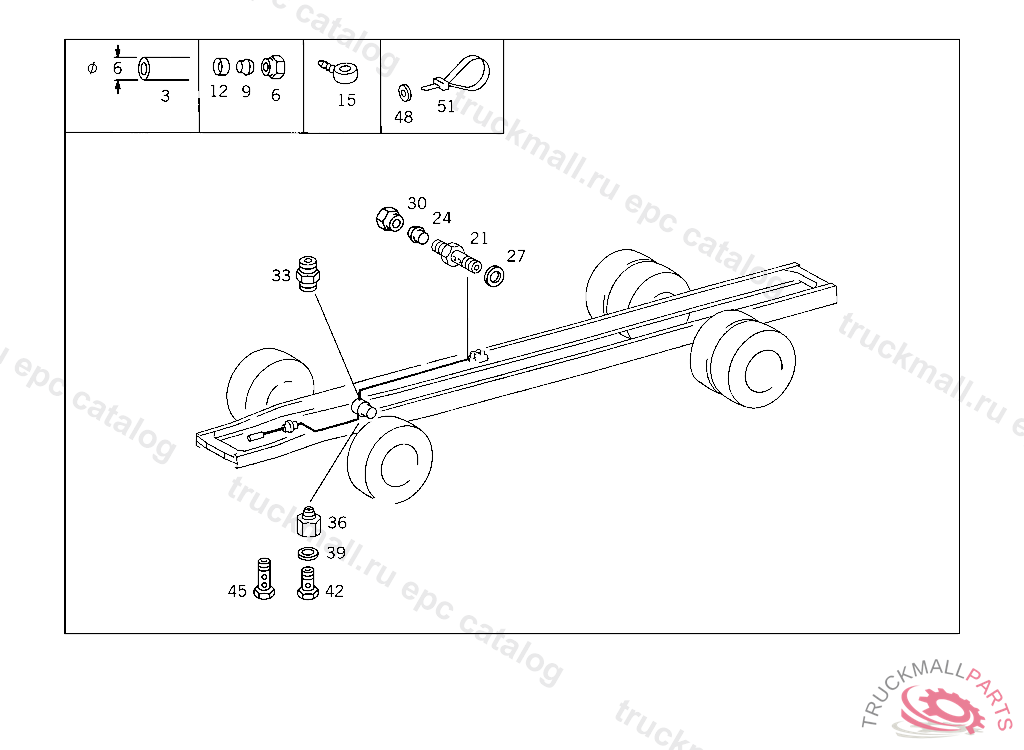

Поз.
Артикул
Описание
3
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
6
UNION NUT
9
GLAND , Replaced By: A0019901667
12
SLEEVE LEAK LINE
15
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
21
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
24
LOCKING CONE
27
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
30
NUT
33
CONNECTOR SOLENOID VALVE,CONNECTION: "2"
36
FITTING SOLENOID VALVE,CONNECTION: "2"
39
SEAL RING LINE CONNECTION
42
HOLLOW SCREW HEATING CONNECTION
999
PART NAME MISSING PLASTIC TUBE
999
PART NAME MISSING SEAL RING
999
PART NAME MISSING FITTING
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
