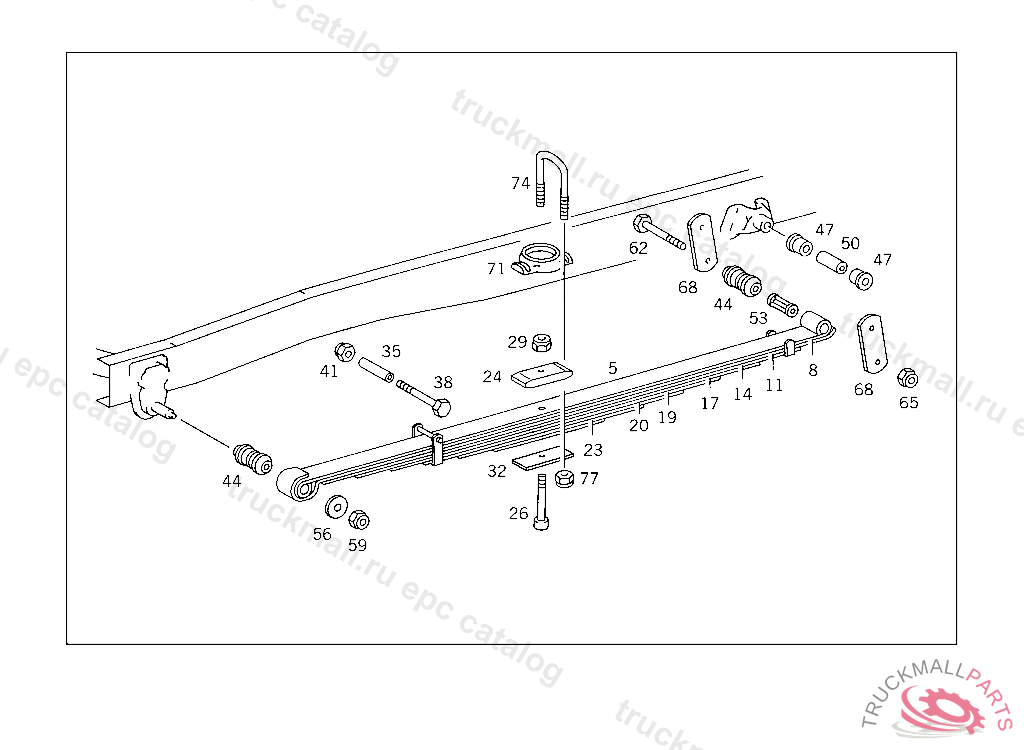

Поз.
Артикул
Описание
5
FRONT SPRING 7-LEAF
5
FRONT SPRING ,B 831781, Replaced By: A6883207002
5
FRONT SPRING 7-LEAF
5
FRONT SPRING 8-LEAF,B 831780
8
SPRING LEAFNO.1,B 831781
8
SPRING LEAFNO.1,B 831780
11
SPRING LEAFNO.2,B 831781
11
SPRING LEAFNO.2,B 831780
14
SPRING LEAFNO.3
14
SPRING LEAFNO.3, TO 688 320 70 02,76 02
17
SPRING LEAFNO.4
20
SPRING LEAFNO.6,B 831780
20
SPRING LEAFNO.6,B 831781
23
SPRING LEAFNO.7
26
SPRING BOLTM10X80
29
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
35
SPACER TUBE , Replaced By: A0003213253
38
SCREW SPRING CLAMP TO SPRING LEAF NO.4,NO.7,M 8X95
41
NUT SPRING CLAMP TO SPRING LEAF
44
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
44
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
47
BUSHING
47
BUSHING FRONT SPRING TO FRONT-SPRING REAR BRACKET
47
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,B 836389
47
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,B 836389
47
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,B 836389
50
BUSHING FRONT SPRING TO FRONT-SPRING REAR BRACKET
50
BUSHING FRONT SPRING TO FRONT-SPRING REAR BRACKET
53
SPACER TUBE O.D.,/HOLE DIA.,/I.D.,30 / 13MM(PLASTIC)
53
SPACER TUBE SPRING SHACKLE TO SPRING REAR BRACKET 22 / 12,5 MM
53
SPACER TUBE SPRING SHACKLE TO SPRING REAR BRACKET 22 / 12,5 MM
56
WASHER REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET
59
NUT , Replaced By: N910113018004
62
SCREW CONSOLE TO SUPPORT M 12X120
65
NUT BRACKET TO SIDE MEMBER M12X1.5
68
SHACKLE FRONT SPRING TO FRONT-SPRING REAR BRACKET
71
PLATE FRONT SPRINGS TO FRONT AXLE
74
U-BOLT FRONT SPRINGS TO FRONT AXLE M 14
74
U-BOLT FRONT SPRINGS TO FRONT AXLE M14X1,5X120 MM,B 914378
74
U-BOLT FRONT SPRINGS TO FRONT AXLE,B 836389
77
NUT SUPPORT TO SIDE MEMBER
77
NUT BRACKET TO BATTERY CASE
