Поз.
Артикул
Описание

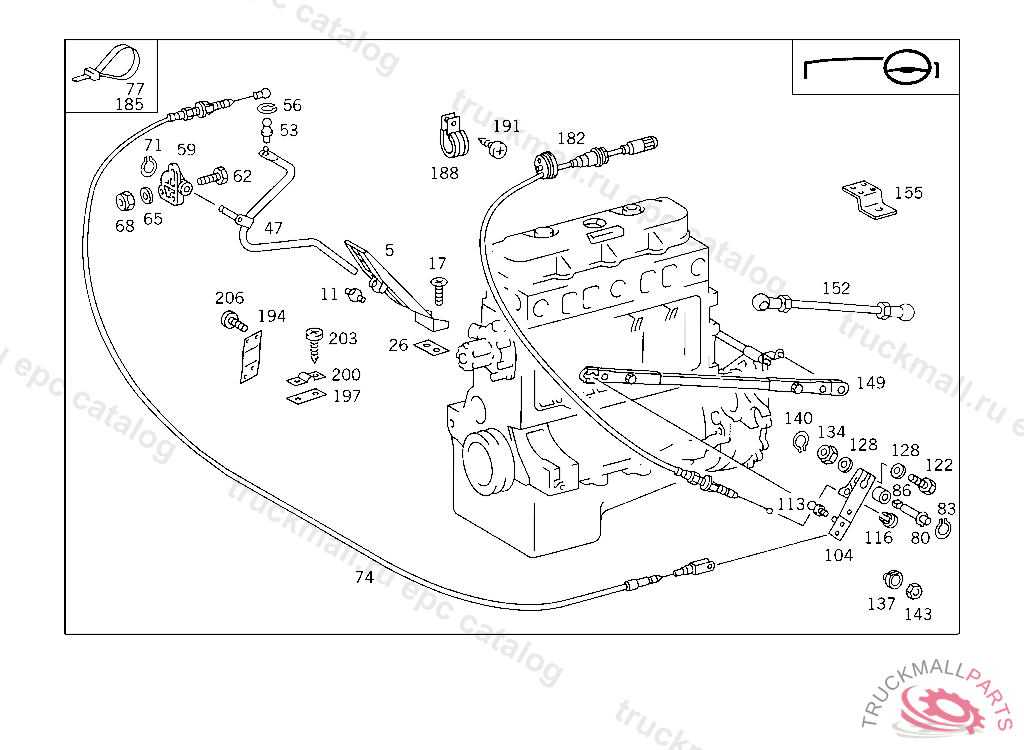

5
ACCELERATOR PEDAL ,B 859430
11
JOINT ,B 859430
17
SCREW PEDAL TO CAB FLOOR M 6X16
17
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M6X12
26
SHIM PEDAL TO CAB FLOOR
47
LEVER (PEDAL LEVER),B 859430
47
LEVER (PEDAL LEVER),B 892893
47
LEVER (PEDAL LEVER),B 859431B 892892
53
BALL PIVOT ,B 859431B 892892
53
BALL PIVOT ,B 859430
59
BEARING PEDAL LEVER
62
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
65
WASHER PLUG SOCKET TO BRACKET
68
NUT BRACKET TO FIRE WALL
71
LOCK RING
74
WIRE CABLE FROM PEDAL LEVER TO CONTROL LEVER,B 892892
77
LOOM TIE , Replaced By: A3459977390
77
LOOM TIE ELECTRIC CABLE MOUNTING
80
SHAFT CONTROL LEVER
83
LOCK RING , FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB DISCONTINUED,PART IS NO LONGER REQUIRED
86
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
86
BUSHING ,B 892893
104
LEVER ,B 892892
104
LEVER (CONTROL LEVER),B 892893
113
BALL PIVOT. BALL STUD
116
BUSHING CONTROL LEVER,B 892892
122
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
128
WASHER PLUG SOCKET TO BRACKET
134
NUT BRACKET TO FIRE WALL
137
GROMMET
140
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
143
NUT
149
ROD ,B 892893
152
ROD CONTROL LEVER TO INJECTION PUMP LEVER,B 892893
182
WIRE CABLE IDLING ADJUSTER,B 892892
182
WIRE CABLE IDLING ADJUSTER,B 892893 NO.8650I.......I I I II .......INO.9985I I I II I
182
WIRE CABLE IDLING ADJUSTER,B 892893
182
WIRE CABLE
188
CLAMP ,K 147121, Replaced By: N000000000319
188
CLAMP , Replaced By: N916016008200
191
SHEET METAL SCREW BRACKET TO CAB 4,2X13
194
BRACKET ,B 892892
197
SHIM ,B 892892
200
CLAMP ,B 892892
203
SHEET METAL SCREW BRACKET TO CAB 4,2X13
206
SCREW CONTROL UNIT
999
CLIP CABLE HARNESS TO ROOF RAIL
