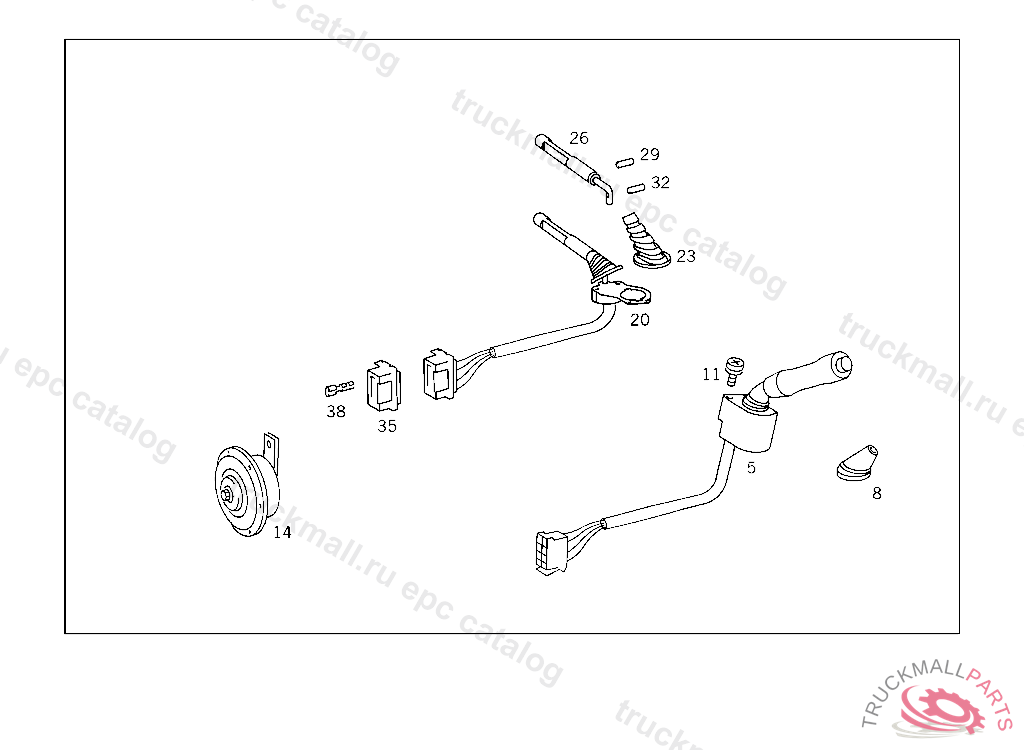

BGT-25 - 698.424 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

5

SWITCH STEERING COLUMN MOUNTED

5

SWITCH , Replaced By: A3575409545

8

BOOT STEERING COLUMN MOUNTED SWITCH

8

BOOT , Replaced By: A6555450445

11

COMBINATION BOLT STEERING COLUMN MOUNTED SWITCH AND HORN

14

20

SWITCH (STEP SWITCH)

23

BOOT , WITH MODELS: 300.1-300.4 046217:ALSO INSTALLED ON 045394,045450,045478396.3,615.0-625.3 5 220333 645.0-649.1 5 213837 600.1-600.4 049213

26

LEVER

29

CYLINDRICAL PIN

32

GROOVED PIN

35

PLUG HOUSING 8-POLE

38

PIN BUSHING HOUSING 4-POLE, BLOWER MOTOR

38

PLUG TRIPLE
