Поз.
Артикул
Описание

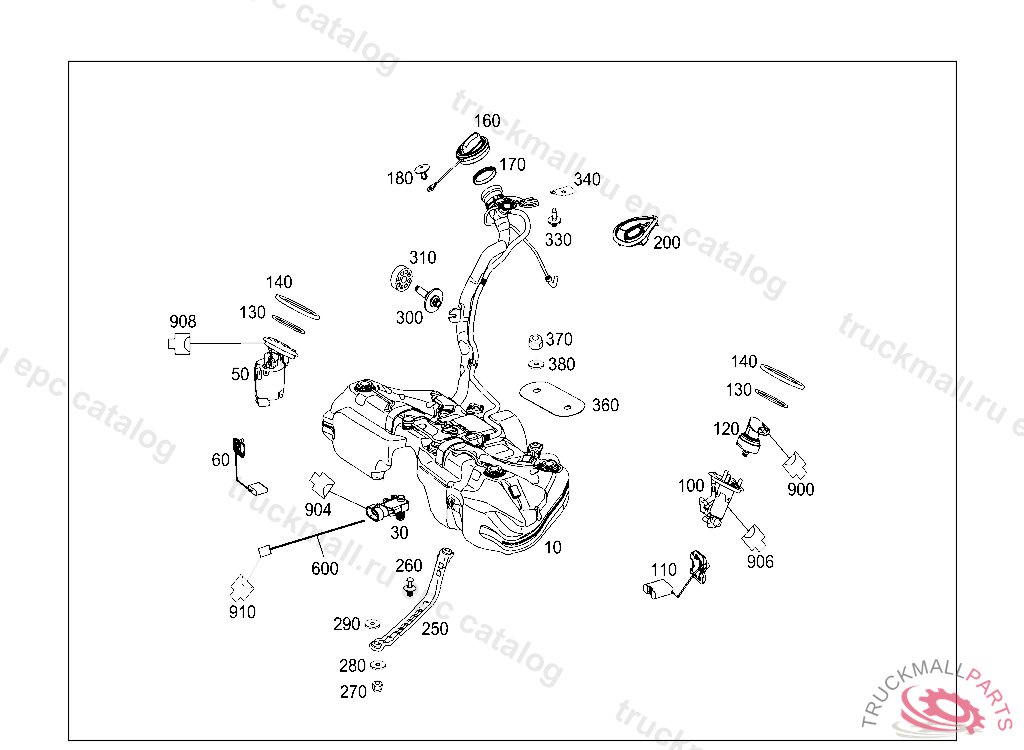

10
FUEL TANK
10
FUEL TANK , Replaced By: A2044703802
50
FUEL DELIVERY MODULE IN TANK AT RIGHT WITH FUEL LINES
60
SENDER UNIT
100
FUEL PUMP IN TANK AT LEFT WITHOUT FUEL LINES
110
SENDER UNIT
130
O-RING PUMP TO RESERVOIR
140
BAYONET TYPE CAP SUPPLY UNIT AT TANK
160
FILLER CAP
160
FILLER CAP , Replaced By: A2214700905, +001A0019902392
170
SEAL RING FILLER CAP
180
EXPANSION RIVET. RIVET
200
GROMMET SEAL FILLER NECK
250
TENSIONING STRAP TANK TO BODYSHELL
260
EXPANSION RIVET
270
COMBINATION NUT TANK TO BODYSHELL M8
280
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
290
SEAL WASHER BETWEEN TENSIONING STRAP AND BODY
300
BOLT TANK TO BODY, CENTER M8X35
310
WASHER FILLER NECK TO BODY, BOTTOM
330
EXTERNAL HEXAL. HD. BOLT FILLER NECK TO BODY, TOP
340
GASKET BETWEEN TANK LOCKING BASE AND VEHICLE SHELL
360
MOUNTING PLATE BETWEEN FUEL TANK AND CHASSIS
370
COMBINATION NUT TANK TO BODYSHELL M8
380
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
600
WIRING HARNESS TANK PRESSURE SENSOR ADAPTER LINE
900
CLUTCH FUEL PRESSURE SENSOR 3-PIN MLK1.2,B4/7
904
PIN BUSHING HOUSING 3-POLE
906
COUPLING HOUSING FUEL LEVEL SENSOR 3-PIN MLK1.2,X36/3
908
CLUTCH PLUG CONNECTION FOR FUEL PUMP WIRING HARNESS 7-PIN SLK2.8, MLK1.2,X36/3
910
PLUG THREE PIN, PLUG CONNECTOR SUN SENSOR 3-PIN MQS
