Поз.
Артикул
Описание

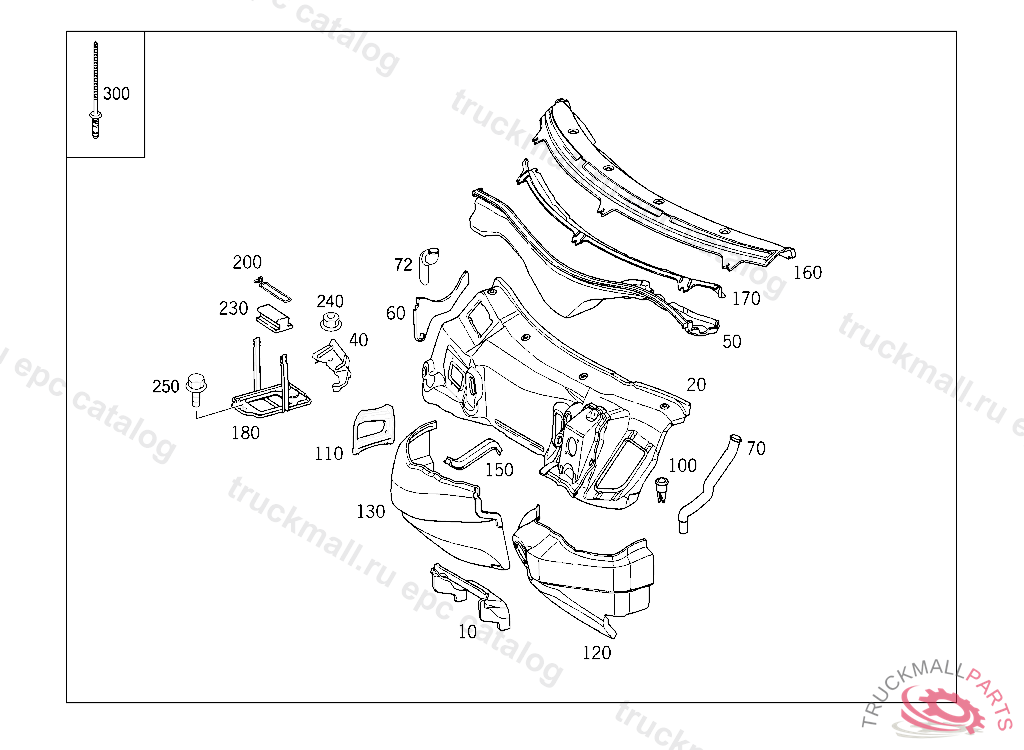

10
CONNECTION BETWEEN COWL AND FIRE WALL,TUNNEL AREA, NO LONGER AVAILABLE
20
FIREWALL CENTRAL, NO LONGER AVAILABLE
20
FIREWALL CENTRAL
40
BRACKET BATTERY FRAME TO FIRE WALL
40
BRACKET BATTERY FRAME TO FIRE WALL
50
DUCT FRESH AIR DUCT, THEFT-RELEVANT PART
50
DUCT FRESH AIR DUCT, THEFT-RELEVANT PART
60
PARTITION PANEL AIR DUCT
60
PARTITION PANEL AIR DUCT
70
DRIP MOULDING LEFT
70
DRIP MOULDING RIGHT,F 093639
72
DRIP MOULDING RIGHT,F 093639
100
DRIP MOULDING FIRE WALL,CENTER 36 MM
110
SUPPORT PEDAL UNIT
110
SUPPORT PEDAL UNIT
120
FIREWALL BOTTOM LEFT
130
FIREWALL BOTTOM RIGHT
130
FIREWALL BOTTOM LEFT
150
BRACKET RIGHT
150
BRACKET LEFT, NO LONGER AVAILABLE
160
CROSS MEMBER BELOW WINDSHIELD,BOTTOM
170
CROSS MEMBER BELOW WINDSHIELD,TOP
180
FRAME BATTERY
180
FRAME BATTERY
200
CLAMP BATTERY MOUNTING
230
PAD LOCK BRACKET
240
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
240
NUT-AND-WASHER ASSEMBLY HINGE, Replaced By: N910104006001
250
SCREW SPEED SENSOR TO REAR AXLE
300
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
