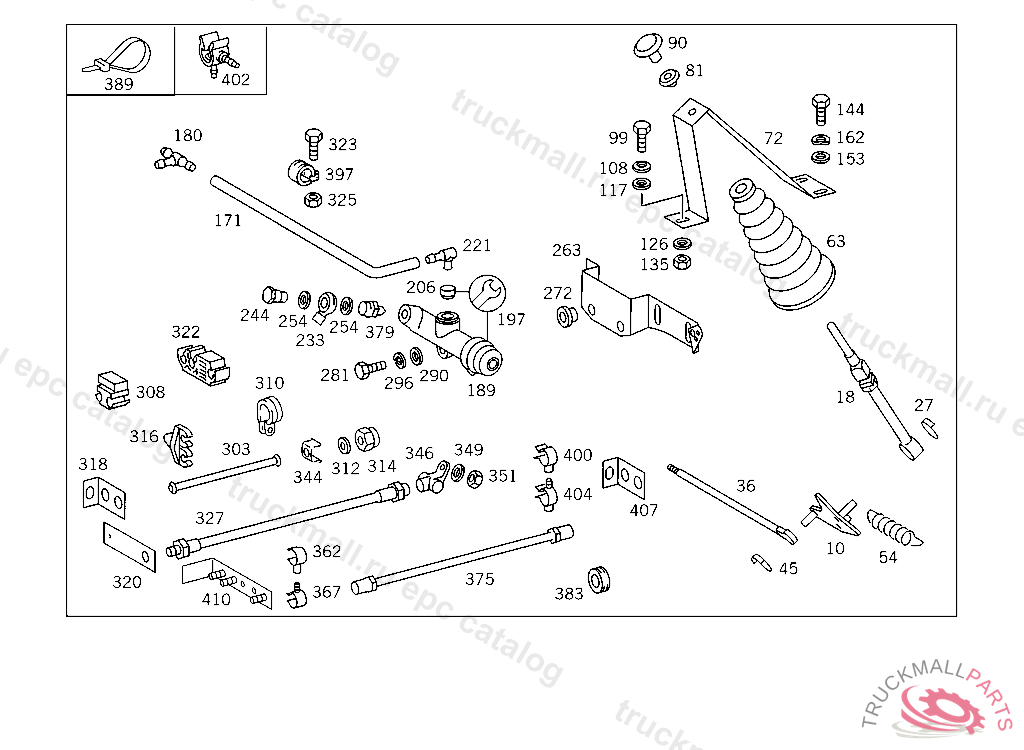

Поз.
Артикул
Описание
10
LEVER LONGITUDINAL DIFFERENTIAL LOCK CONTROL
18
ROD LONGITUDINAL DIFFERENTIAL LOCK CONTROL
27
LOCK PULL TO FASTENER
27
LOCK , Replaced By: N912002008003
36
ROD (PULL ROD)
36
ROD (PULL ROD)
45
LOCK HOSE FASTENING
54
SPRING LEVER,823343
54
SPRING LEVER,823342
63
BOOT PULL ROD
72
BRACKET PULL ROD
72
BRACKET PULL ROD
81
GROMMET AT BRACKET
90
HANDLE ON ROD:
99
SCREW CLAMP TO BRACKET AND TO PIPE
108
CONICAL SPRING WASHER CHARGING AIR INTERCOOLER TO RADIATOR
117
WASHER , Replaced By: N009021008213
117
WASHER BRACKET TO LEFT SIDE MEMBER
126
RUBBER RING AT CAB REAR PANEL
135
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
135
NUT , Replaced By: N913004008001
144
SCREW , Replaced By: A0039903701
144
SCREW BELT LOCK TO FLOOR BELOW REAR SEAT
153
WASHER
162
SPRING WASHER CAB FLOOR
171
HOSE FLUID RESERVOIR
180
T-FITTING BETWEEN THE LINES
189
CYLINDER MASTER CYLINDER
197
REPAIR KIT MASTER CYLINDER
197
PROTECTIVE CAP , Replaced By: A0003500284
197
REPAIR KIT , Replaced By: A0003500284
206
PLUG , Replaced By: A0009971186
206
PLUG
221
T-FITTING MASTER CYLINDER
233
BANJO UNION MASTER CYLINDER
244
HOLLOW SCREW MASTER CYLINDER
254
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
254
SEAL RING BRAKE CYLINDER STROKE INDICATOR
263
BRACKET MASTER CYLINDER TO SUPPORT, TO BE ADAPTED DURING ASSEMBLY
272
BUSHING
281
SCREW STRUT TO CROSS MEMBER M 10X25
290
WASHER RADIATOR TO RUBBER MOUNTING
290
WASHER , Replaced By: N000125010532
296
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
303
LINE FROM VALVE TO RIGHT REAR WHEEL 3450 MM
303
LINE FROM MASTER CYLINDER TO HOSE 3865 MM
303
LINE FROM MASTER CYLINDER TO HOSE 2890 MM
303
LINE FROM BRAKE POWER REGULATOR TO LEFT FRONT WHEEL,126.021 005796, 126.022,023 020032, 126.032,033 008371, 126.036,037 007212
303
LINE FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE
303
LINE FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR, INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
303
LINE FROM VALVE TO LEFT REAR WHEEL 3560 MM
303
LINE , Replaced By: A1234207928
303
LINE , Replaced By: A1234208428
303
LINE , Replaced By: A1234208528
303
LINE , Replaced By: A1234206428
303
LINE , Replaced By: A1234209528
303
LINE , Replaced By: A1234208828
308
CLIP CABLE HARNESS TO HOOD BRACKET, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
310
CLAMP SENSOR CABLE TO BRACKET
312
WASHER FROM SLAVE CYLINDER TO HOSE,895778
314
NUT OIL TANK TO BRACKET
314
NUT , Replaced By: N913002006009
316
BRACKET LINES TO FRAME
318
BRACKET FROM BRAKE HOSE TO REAR AXLE
318
BRACKET , Replaced By: A6014283540
318
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. P 319844, Replaced By: A6014283240
320
BRACKET AT STABILIZER TAKE-UP
322
BRACKET BRAKE LINE TO FIRE WALL
323
SCREW BRACKET ON LOAD SENSOR
325
NUT PUMP TO BRACKET
325
NUT , Replaced By: N913004006001
327
BRAKE HOSE FRONT
327
BRAKE HOSE BETWEEN THE LINES,730280
344
RETAINING SPRING BRAKE HOSE TO BRACKET
346
DISTRIBUTOR REAR AXLE
349
WASHER FROM SLAVE CYLINDER TO HOSE,895778
351
NUT OIL TANK TO BRACKET
351
NUT , Replaced By: N913002006009
362
CLAMP ELECTRIC CABLE TO BRAKE HOSE
367
CLAMP LINE MOUNTING
375
LINE FROM HYDRAULIC UNIT TO LEFT FRONT WHEEL, ONLY APPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)F039532 TO BE ADAPTED DURING ASSEMBLY
375
LINE FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE
375
LINE FROM DISTRIBUTOR TO LEFT WHEEL BRAKE CYLINDER 1165 MM
375
LINE FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE
375
LINE , Replaced By: A1234206728
375
LINE , Replaced By: A1234206728
375
LINE , Replaced By: A1234209328
375
LINE , Replaced By: A1234209728
379
BLEEDER VALVE , Replaced By: A0004205155
379
BLEEDER VALVE POWER STEERING CYLINDER
383
GROMMET O.D.,/HOLE DIA.,/I.D., 45/35/31
383
GROMMET TACHOGRAPH OR SPEEDOMETER
389
LOOM TIE LINE MOUNTING 280 MM
397
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
400
CLAMP ELECTRIC CABLE TO BRAKE HOSE
402
BRACKET OIL LINES
402
CLAMP. EXTENDABLE SPACER BREATHER LINE
404
BRACKET LINE MOUNTING 11 MM
407
BRACKET FROM BRAKE HOSE TO REAR AXLE
407
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. P 319844, Replaced By: A6014283240
410
BRACKET
