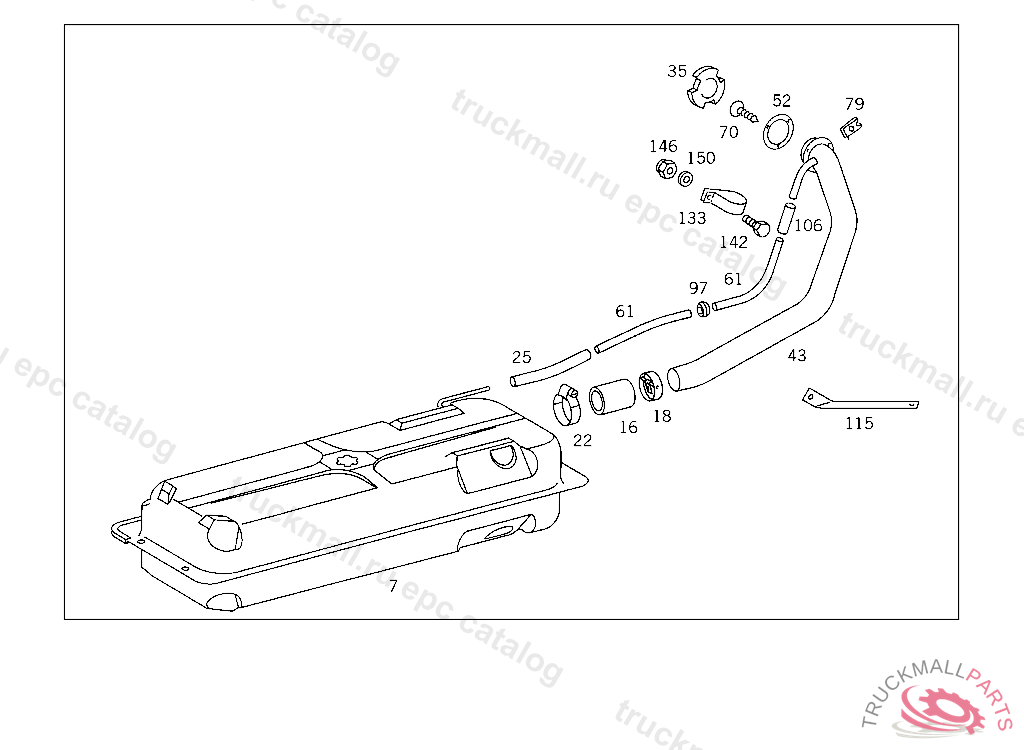

Поз.
Артикул
Описание
7
FUEL TANK
7
FUEL TANK
16
HOSE (CONNECTING LINE)
16
EXTENSION , Replaced By: A6014760126
18
FLAP
22
CLAMP HOSE FASTENING 50-70X13 MM
22
CLAMP , Replaced By: N000000000672
25
BREATHER PIPE , Replaced By: A2024766726
25
HOSE FROM FILLER PIPE TO FUEL TANK 100 MM, UP TO CHASSIS 282507 AND FROM CHASSIS 500001-606219
35
FILLER CAP LESS TUMBLER
35
FILLER CAP , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 271415 EXHAUST STOCK OF OLD PART NUMBERS FIRST FROM CHASSIS 500001 - 592810, Replaced By: A6014710330
43
FILLER NECK , UP TO IDENT NO. 826383 WHEELBASE: 3350 MM UP TO IDENT NO. 831841 WHEELBASE: 3050 MM, Replaced By: A6014700626, +001A6014700028, +001A6014760126
43
RISING PIPE RIGHT, TO BE ADAPTED DURING ASSEMBLY
52
SEAL RING FILLER PIPE TO BODY
61
HOSE FEED LINE 12X15 MM, ORDER BY THE METER
61
BREATHER PIPE , Replaced By: A0005516256
61
BREATHER PIPE , Replaced By: A0005516256
70
SHEET METAL SCREW , Replaced By: N007983004208
70
SHEET METAL SCREW
79
LOCK FUEL LINE
79
LOCK , Replaced By: A1409941045
79
LOCK , Replaced By: A0029945645
79
LOCK , Replaced By: A1409941045
97
GROMMET
106
BREATHER PIPE , Replaced By: A2024766726
106
BREATHER PIPE , Replaced By: A6014710815
106
HOSE FROM FILLER PIPE TO FUEL TANK 100 MM, UP TO CHASSIS 282507 AND FROM CHASSIS 500001-606219
115
BRACKET CLAMP TO BRACKET,AND BRACKET TO SIDE MEMBER
133
CLAMP REAR EXHAUST PIPE TO MUFFLER,619061
133
CLAMP , Replaced By: N071555055500
142
SCREW , Replaced By: N304017008021
142
SCREW PIPE CLAMP
146
NUT , Replaced By: N913004008001
146
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
150
WASHER BRACKET TO LEFT SIDE MEMBER
150
WASHER , Replaced By: N009021008213
