Поз.
Артикул
Описание

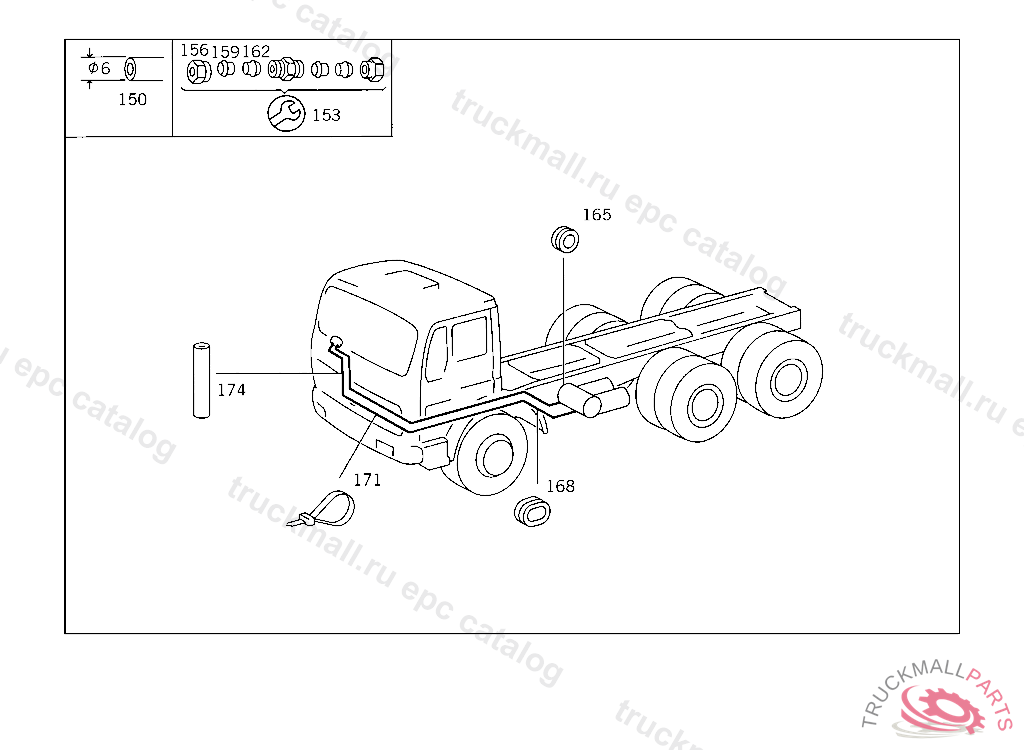

150
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
153
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
156
UNION NUT
159
GLAND , Replaced By: A0019901667
162
SLEEVE LEAK LINE
165
GROMMET42/36 MM, NOT USED
168
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
171
LOOM TIE LINE MOUNTING
171
LOOM TIE LINE MOUNTING 280 MM
174
HOSE LEAK LINE, ORDER BY THE METER
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
REPAIR KIT , Replaced By: A0004300207
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
PLUG
999
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
999
ELBOW FITTING ,5 433281
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
VALVE EMERGENCY RELEASE VALVE,CONNECTION: "23"
999
ADHESIVE FOIL GUIDE SIGN
999
HEX. HEAD. SCREW , NOT USED
999
WASHER STRAP TO SUPPORT
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
NUT , Replaced By: N913004008001
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
SEAL RING , Replaced By: N007603012121
999
BANJO UNION , Replaced By: N915052009009
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
