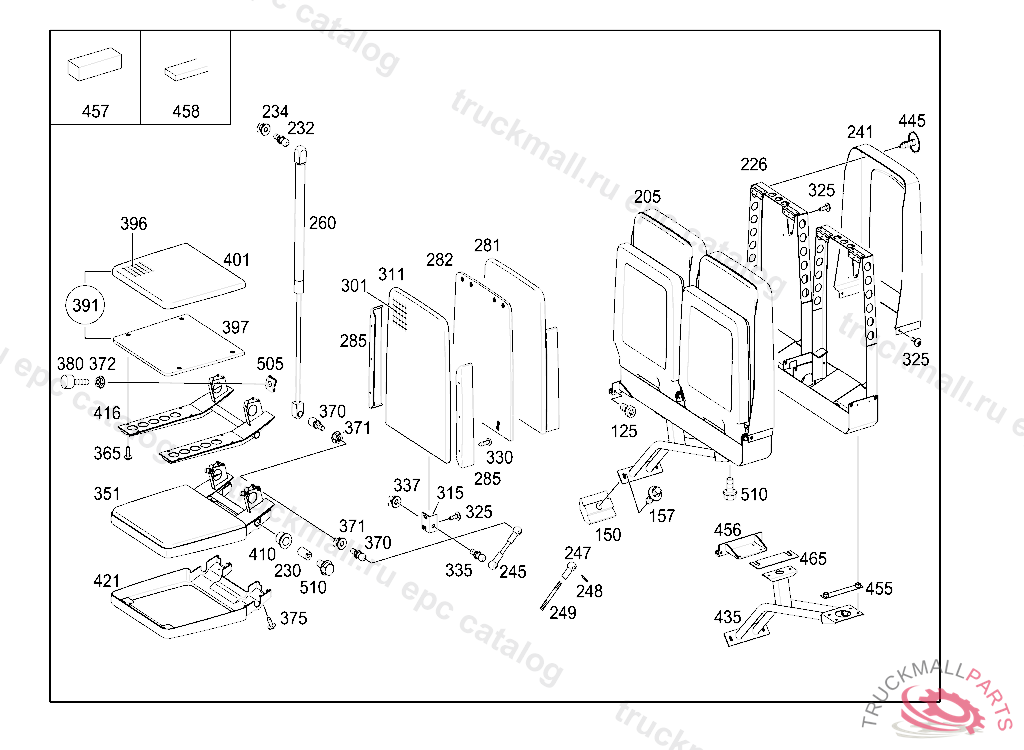

Поз.
Артикул
Описание
125
SCREW. HEXALOBULAR BOLT BRACKET TO RIGHT FRONT FENDER M8X30
125
HEXALOBULAR BOLT. SCREW STRAP TO BRACKET M 10X20
125
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
125
SCREW BRACKET TO COVERING
150
SLIDE
157
HEXALOBULAR BOLT SUPPORT TO CRANKCASE M8X20
205
FOLDING SEAT DOUBLE FOLDING SEAT, RIGHT OPPOSITE DIRECTION OF TRAVEL
205
FOLDING SEAT DOUBLE FOLDING SEAT, LEFT OPPOSITE DIRECTION OF TRAVEL
226
SEAT FRAMEWORKTO A6289300005 / A6289300105, .......I.......INO.7E87I.......I II
230
SUPPORT SEAT FRAMEWORK
232
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
234
NUT BRACKET TO FIRE WALL
241
PANELLING BACKREST
245
ROD
247
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
248
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
249
STUD BOLT. STUD
260
GAS PRESSURE SPRING BACKREST
281
BACKRESTTO A6289300005 / A6289300105
282
285
COVERING RIGHT, .......INO.7E86I.......I.......I II
285
COVERING LEFT, .......INO.7E86I.......I.......I II
301
COVER , STATE COLOR WHEN ORDERING
311
PAD
315
ANGLE
325
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
330
TAPPING SCREW4,2X16
335
BALL PIVOT ACCELERATOR PEDAL,4 859026
337
NUT , Replaced By: N913023006001
351
SEAT CUSHIONTO A6289300005 / A6289300105
365
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
370
BALL PIVOT ACCELERATOR PEDAL,4 859026
371
NUT BRACKET TO FIRE WALL
372
NUT , Replaced By: N913023006001
375
TAPPING SCREW CONTROL UNIT TO FIRE WALL
380
BUFFER , Replaced By: A2019880511
391
SEAT CUSHIONTO A6289300621
396
COVER , STATE COLOR WHEN ORDERING
397
401
PAD
410
BUSHING
416
SEAT CUSHION FRAME
421
COVERING
435
SEAT BASE SEAT FRAME, DUAL SEAT
445
RIVET COVERING TO BODY
455
PLATE
456
SUPPORT
457
MOUNTING STRIP80X30X20
458
ADHESIVE TAPE15X4
465
PLATE TOLERANCE COMPENSATION
505
NUT RETAINER , Replaced By: A3229900091
