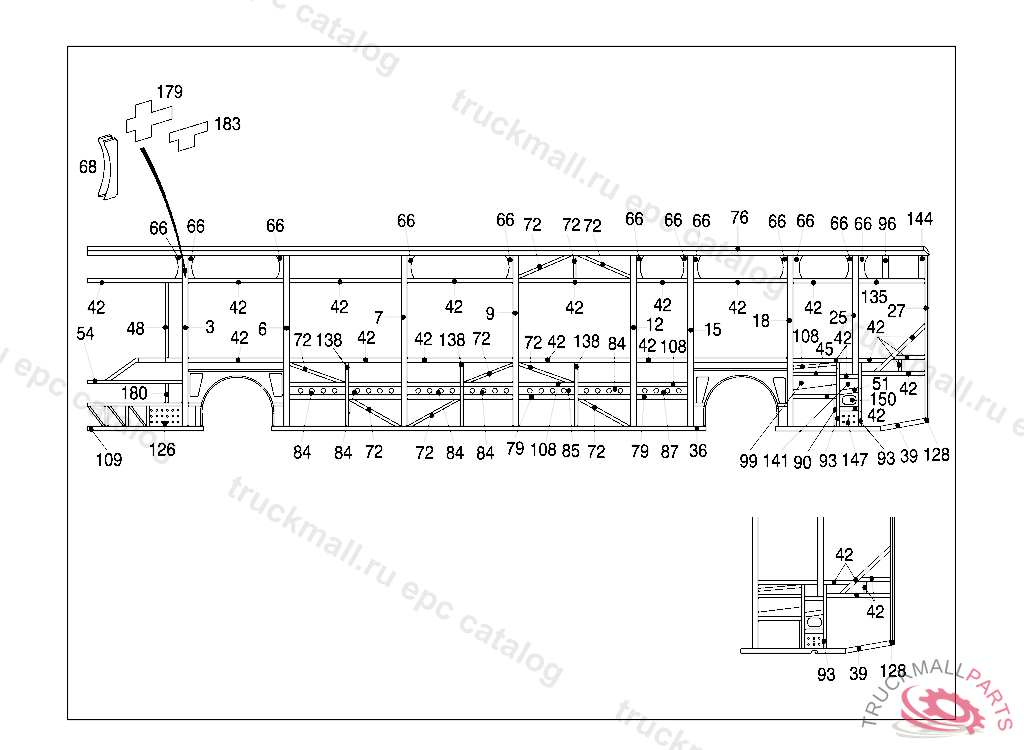

O 530 N3 EURO 3 - 628.050 - 63 SIDE PANELS
Поз.
Артикул
Описание
3
PILLARNO. 1
6
PILLARNO. 2
9
PILLAR PART
12
PILLAR
15
PILLAR
18
PILLARNO. 4
27
PILLAR PART REAR END
36
SUPPORT BOTTOM
39
SUPPORT WITHOUT CUTOUT
42
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
48
PILLAR PART DRIVER'S WINDOW
54
SUPPORT DRIVER'S WINDOW
66
REINFORCEMENT TOP
68
REINFORCEMENT
72
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
76
SUPPORT TOP
84
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
87
WEB
108
SUPPORT. RECTANGULAR TUBE50X40X2X1480MM, TO BE ADAPTED DURING ASSEMBLY
109
SUPPORT
126
PLATE
128
PLATE
138
PILLAR PART
179
PLATE
180
CONSOLE
183
PLATE
