Mercedes N910105010002 - Болт м10х35

CITARO G BLUETEC-HYBRID 628.293

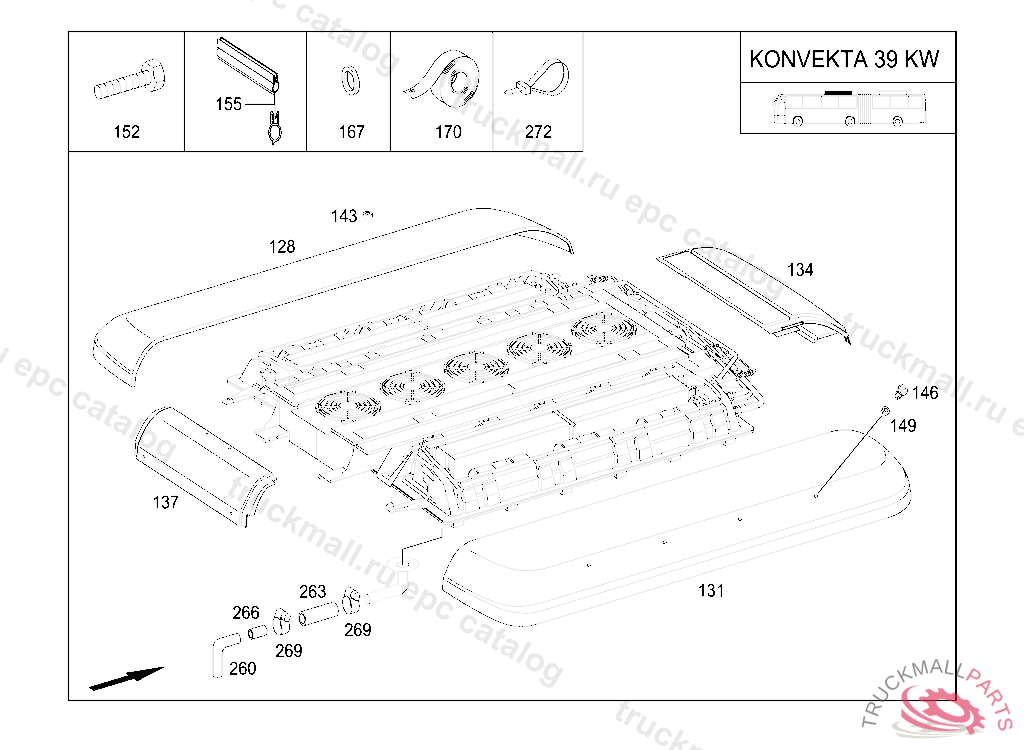

83 HEATING AND VENTILATION - 092 AIR CONDITIONER MAKE KONVEKTA IL. 1

Поз.
Артикул
Описание
128
A0008308013
COVERING LEFT
131
A0008307913
COVERING RIGHT
134
A0018300413
137
A0018300313
143
A0009982705
GROMMET, OPEN, SMOOTH. GROMMET
146
A0009913212
LOCKING PIN. PIN
149
A0009971842
SEALING WASHER. SEAL WASHER RUBBER 8,2X30,0X1,5MM
152
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
152
N910105010002
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
155
A6289870051
RUBBER SEAL
167
A0009979149
GASKET34X42 MM
170
A0069896285
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
260
A0009872927
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
263
A0269973582
HOSE WATER DRAIN 16 X 23 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
266
N915062012000
SLEEVE
269
N000000000665
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
272
A0029975890
CABLE TIE LINE MOUNTING 375X8.4MM
