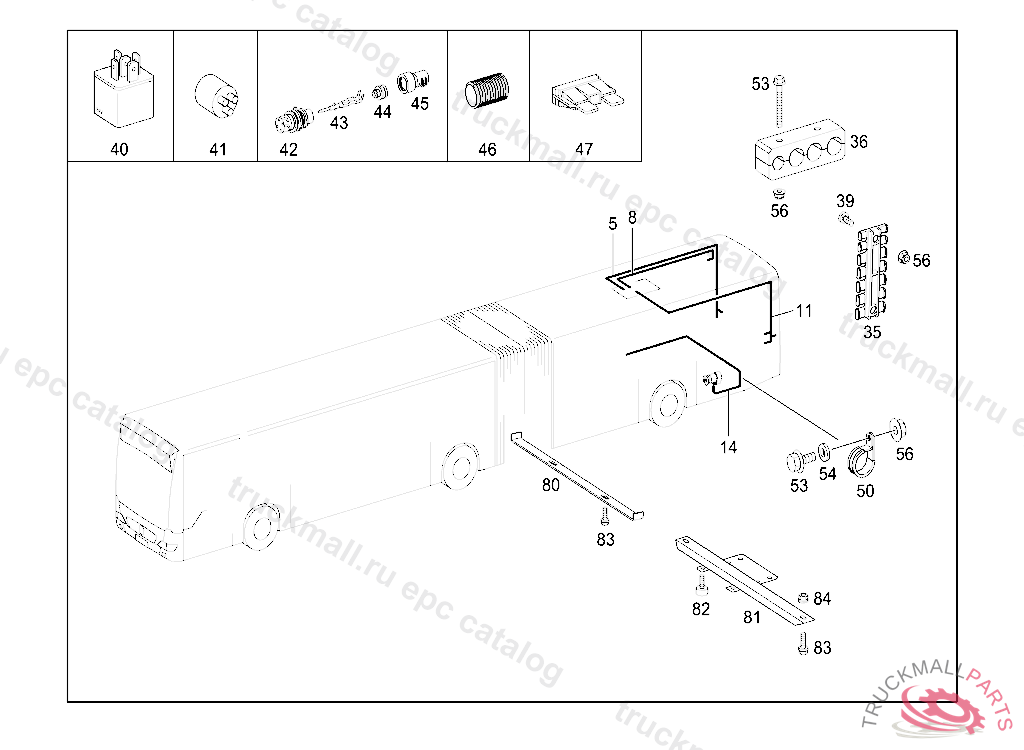

Поз.
Артикул
Описание
5
ELECTRIC CABLE ADDITIONAL HEATER X0344 - 54R01 - 54B01
8
ELECTRICAL WIRING HARNESS FIRE EXTINGUISHER SYSTEM
8
ELECTRICAL WIRING HARNESS FIRE-ALARM SYSTEM
11
14
35
35
36
39
SCREW BRACKET TO COVERING
39
SCREW CLAMP MOUNTING M 6X16
39
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
40
RELAY RELAY WITH ERASE DIODE 24V-10/20A,A32, K1, K3, K5
40
RELAYA33
41
GROMMET ELECTRIC CABLE
42
PLUG , Replaced By: A0065459328
43
CONTACT PIN1.0-2.5MM
44
CORE BUNDLE SEALING1.0-2.5 MM2
45
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
46
CORRUGATED HOSE , ORDER BY THE METER, Replaced By: A0005461630
47
FUSE LINK IN FUSE BOX AND SPARE FUSE 7,5 A
50
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
50
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
50
MOUNTING CLAMP16/15
53
SCREW BRACKET AND CLAMP M6X20
53
HEXAGON HEAD BOLT
53
SCREW , Replaced By: N914146006102
53
SCREW. HEXAGON HEAD BOLT BATTERY CABLE M6X50
54
WASHER P.T.O. TO TRANSMISSION
54
WASHER
56
LOCK NUT. SPRING NUT MOUNTING PARTS
56
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
56
HEXAGON NUT. NUT LINE TO SIDE MEMBER
56
NUT , Replaced By: N913023006001
80
BRACKET ELECTRIC CABLE TO SUBSTRUCTURE
81
BRACKET STARTING CABLE
82
BUFFER
83
HEXAGON HEAD BOLT
84
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
