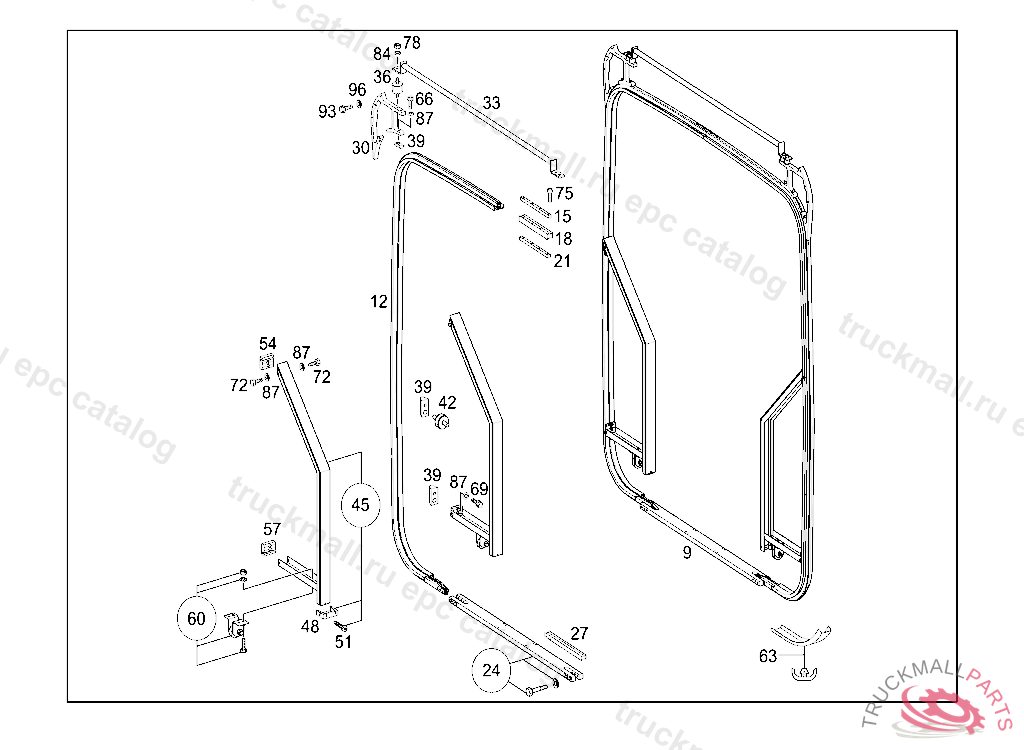

CITARO G BLUETEC-HYBRID - 628.293 - 89 VEHICLE ACCESSORIES
Поз.
Артикул
Описание
9
12
FRAME
15
METAL SECTION
18
METAL SECTION
21
METAL SECTION
24
FRAME
27
FRAME
30
33
36
39
SLIDE
42
RUBBER BUFFER
45
FRAME
48
CAP
51
SHEET METAL SCREW
54
PROFILE SECTION CONNECTOR
57
PROFILE SECTION CONNECTOR
60
ROLLER COMPLETE
63
SHAPED SECTION
66
SCREW , Replaced By: N304017008034
69
SCREWM8X30
72
TAPPING SCREW
75
SCREW HOUSING TO INSTRUMENT PANEL
78
NUT REAR EXHAUST PIPE TO BRACKET
84
WASHER8,4MM
87
WASHER EXHAUST MUFFLER TO STRAP
93
HEX. HEAD SCREW. SCREW BATTERY POS. CABLE TO BATTERY CASE,A 027955
96
WASHER COMPRESSED AIR LINE TO BRACKET
