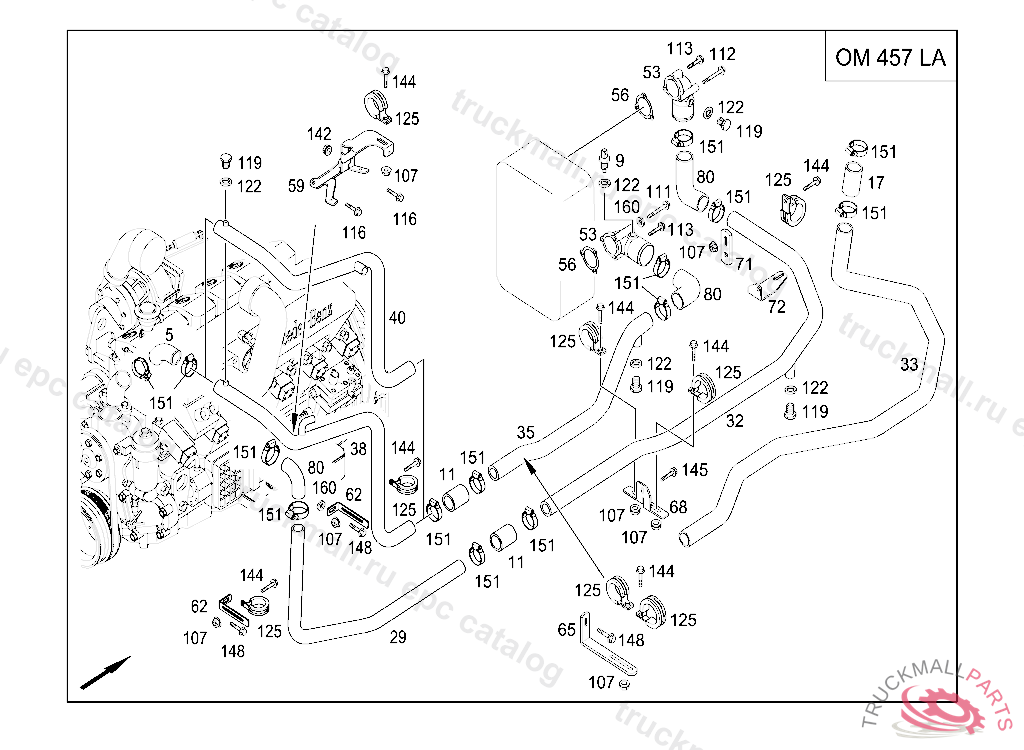

Поз.
Артикул
Описание
5
MOLDED HOSE ARC REDUCED 45 DEGREES 65/60MM
9
TEMPERATURE SENSOR RETARDER TEMPERATURE
11
HOSE60 X 72 X 100 MM, TO BE ADAPTED DURING ASSEMBLY
11
HOSE COOLING WATER LINE TO COOLING WATER LINE
17
HOSE FEED AND RETURN LINES TO OIL COOLER, Replaced By: A0015013782
17
MOLDED HOSE NARROWED STRAIGHT SURFACE 65/60
29
COOLING WATER PIPE FEED D60MM
32
LINE FEED D60
33
LINE60MM
35
COOLANT PIPE RETURN D60
38
LINE. RETURN LINE60MM
40
COOLING WATER PIPE RETURN
53
CONNECTION FITTING
56
GASKET
59
BRACKET
59
BRACKET , Replaced By: A6295013322
62
BRACKET
65
BRACKET
68
BRACKET
71
BRACKET
72
BRACKET
80
MOLDED HOSE 90 DEGREES 60/60MM
80
RADIATOR HOSE ARC REDUCED 90 DEGREES 65/60MM, Replaced By: A0015013982
80
MOLDED HOSE ARC REDUCED 90 DEGREES 65/60MM, Replaced By: A0025012082
80
COOLANT HOSE 90 DEGREES 60/60MM, Replaced By: A6285017782
107
NUT , Replaced By: N913023010002
111
HEXAGON HEAD BOLTM8X90
112
HEXAGON HEAD BOLTM8X85
113
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
113
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
116
SCREW BRACKET TO CAB REAR PANEL M 8X20
119
SCREW PLUG, FILLINGM14X1,5
119
SCREW PLUG FUEL TANK
122
SEAL RINGTO 000 553 03 05,000 553 18 05,
125
CLAMP60/25
125
CLAMP60/25RSGU
142
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
144
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
144
SCREWM 10X20
145
SCREW BRACKET TO SIDE MEMBER M10X35
148
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
148
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
151
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
151
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
160
WASHER PUMP TO CONSOLE
160
WASHER BRACKET MOUNTING
