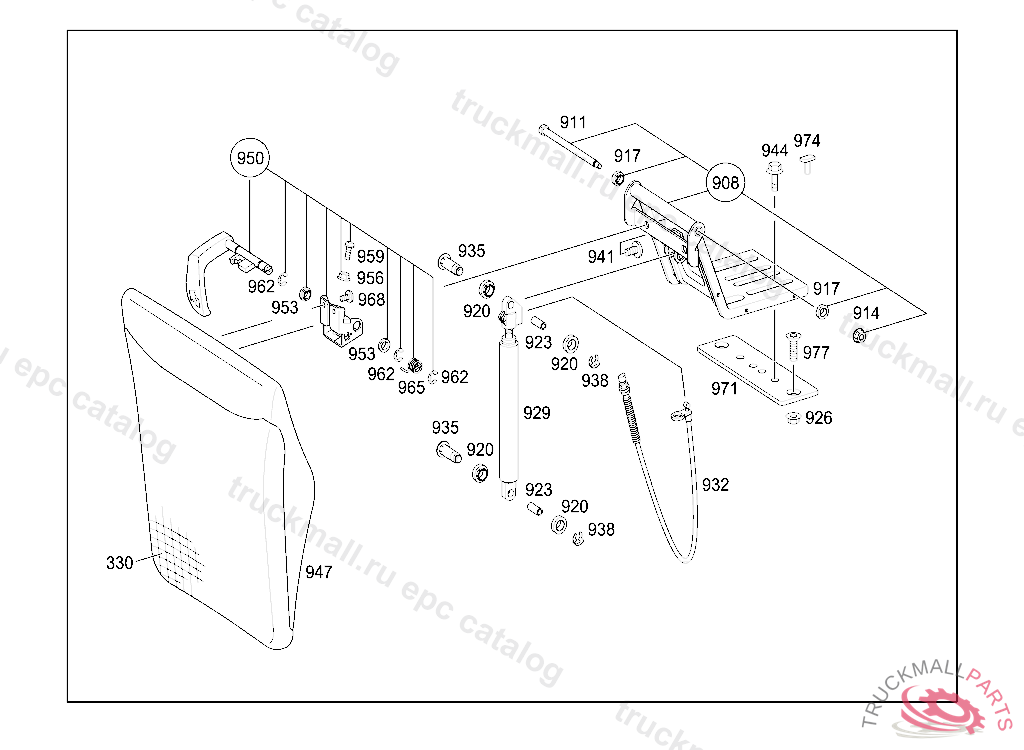

TRAVEGO 15 SHD 2 - ACHSER - 632.285 - 97 SEAT ACCESSORIES
Поз.
Артикул
Описание
330
COVER FABRIC
908
ADJUSTMENT
911
THREADED PIN W STUD
914
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
917
BUSHING
920
BUSHING16X12/10X4X2,5MM
923
BUSHING16X10X8MM
926
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
929
STAY MAXIMUM 10/27
932
BOWDEN CABLE
935
BEARING BOLT
938
WASHER
941
HEXALOBULAR BOLTM8X16
944
SCREW FOR T-CHANNELM8X20
947
PADDING
950
ADJUSTMENT
953
BUSHING
956
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
959
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
962
SHAFT RETAINER
965
TORSION SPRING
968
HEXALOBULAR BOLTM5X12
971
BRACKET
974
SCREW SHIFT LEVER TO BRACKET M8X30
977
HEXAL. SOCKET CSK. BOLTM8X25
