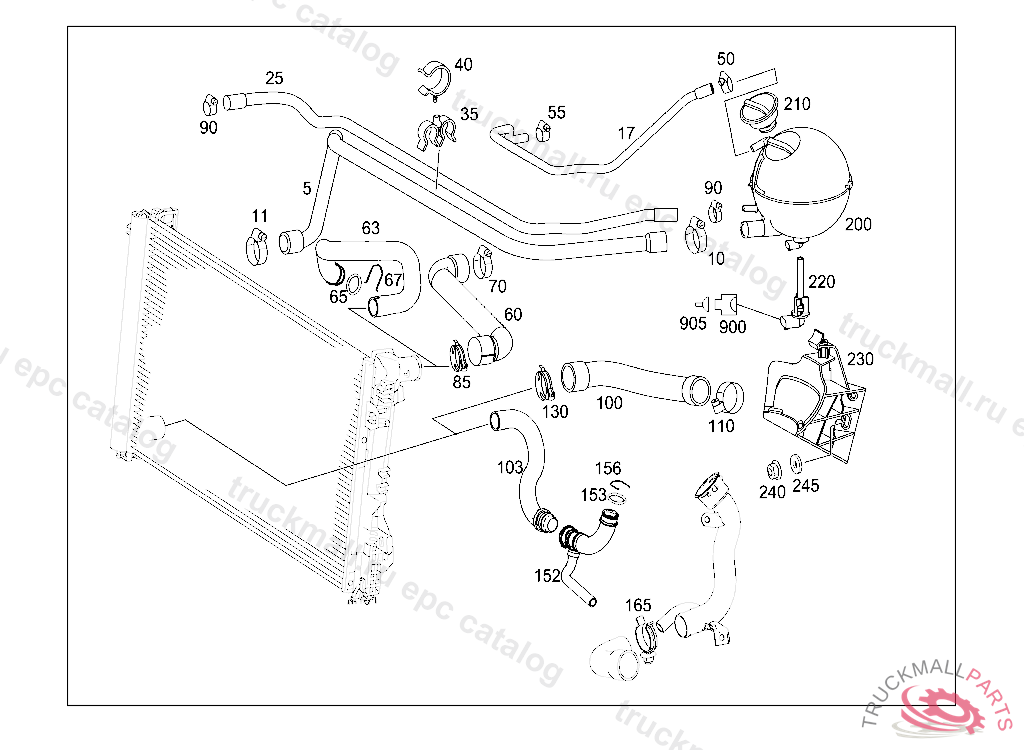

Поз.
Артикул
Описание
5
COOLANT HOSE FROM EXPANSION TANK TO RADIATOR
10
SPRING HOSE CLAMP HOSE FASTENING,230301
11
CLAMP25-40X13 MM
17
COOLANT HOSE EXPANSION RESERVOIR TO ENGINE
17
COOLANT HOSE EXPANSION RESERVOIR TO ENGINE
25
COOLANT HOSE FROM EXPANSION TANK TO RADIATOR
35
CLAMP , J 59826320010420
40
CLAMP , J 59826320010420
40
CLAMP BRAKE HOSE
50
HOSE CLAMP LINE MOUNTING
50
SPRING HOSE CLAMP
55
CLAMP ENGINE RETURN LINE 12-18X9 MM
60
COOLANT HOSE FROM THERMOSTAT TO RADIATOR
63
COOLANT HOSE FROM THERMOSTAT TO RADIATOR
63
COOLANT HOSE FROM THERMOSTAT TO RADIATOR
65
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
65
SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
65
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
67
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
67
STOP SPRING TO RIGHT RADIATOR
70
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
85
CLAMP HOSE TO RADIATOR
90
HOSE CLAMP LINE MOUNTING
90
SPRING HOSE CLAMP
100
COOLANT HOSE FROM RADIATOR TO PUMP
103
COOLANT HOSE FROM RADIATOR TO PUMP
103
COOLANT HOSE FROM RADIATOR TO PUMP
110
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
130
CLAMP HOSE TO RADIATOR
152
COOLANT HOSE AT WATER PUMP
153
O-RING COOLANT HOSE, RIGHT, TO RADIATOR
153
SEALING RING COOLANT HOSE, RIGHT, TO RADIATOR 39.3 MM, Replaced By: A0269976745
156
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
165
LINE HOLDER FITTING ON ENGINE
200
EXPANSION TANK COOLING WATER EXPANSION TANK
200
EXPANSION TANK
200
EXPANSION TANK COOLING WATER EXPANSION TANK
210
RADIATOR CAP
220
SWITCH,AUTOMATIC COOLING WATER LEVEL INDICATOR
220
FILL-LEVEL SENSOR WATER LEVEL SWITCH TO RESERVOIR
230
BRACKET ON EXPANSION RESERVOIR
240
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
245
WASHER A 6,4 DIN 9021. WASHER OIL LINE TO BRACKET,K 093236
900
SOCKET HOUSING. PIN BUSHING HOUSING PRESSURE CONVERTER THROTTLE VALVE
905
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
