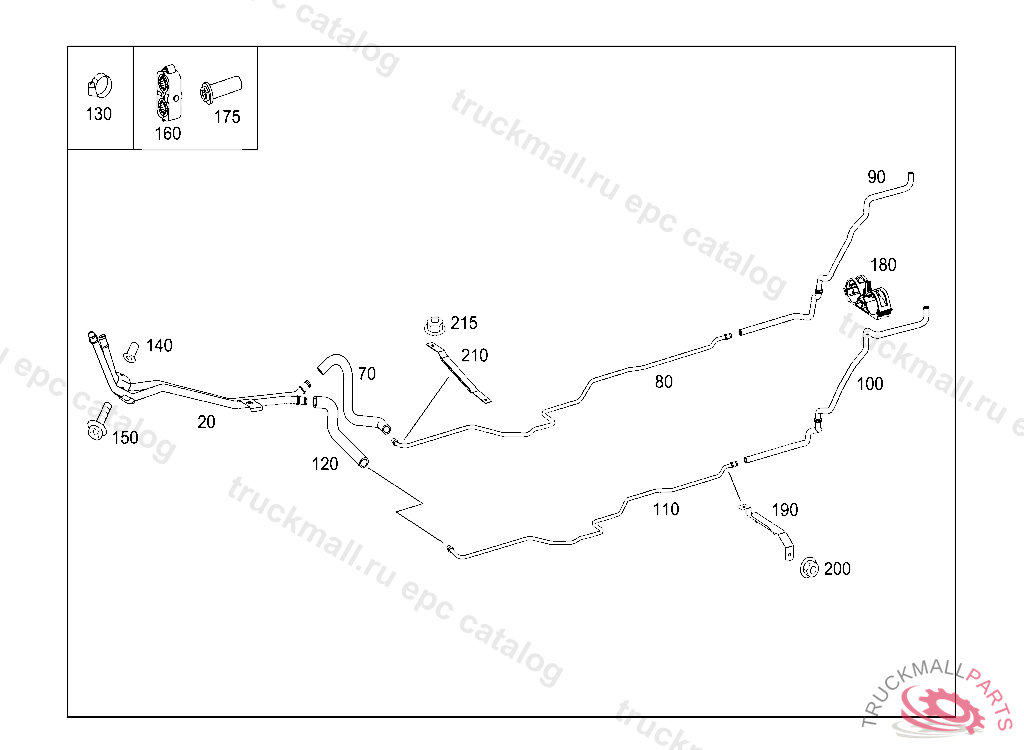

KOMBI - 636.705 - 83 HEATING/VENTILATION
Поз.
Артикул
Описание
20
PIPELINE FRONT PIPE SYSTEM
70
MOLDED HOSE FRONT
80
PIPELINE CENTRAL
90
MOLDED HOSE REAR
100
MOLDED HOSE REAR
110
PIPELINE CENTRAL
120
MOLDED HOSE FRONT
130
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
140
RIVETED NUT
150
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
160
CLAMP2X 16-19 MM
175
THREADED BUSHING CABLE HOLDER
180
CLAMP2X 23-28 MM
190
BRACKET PIPE LINE TO SIDE MEMBER
200
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
210
BRACKET PIPE LINE TO SIDE MEMBER
215
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
