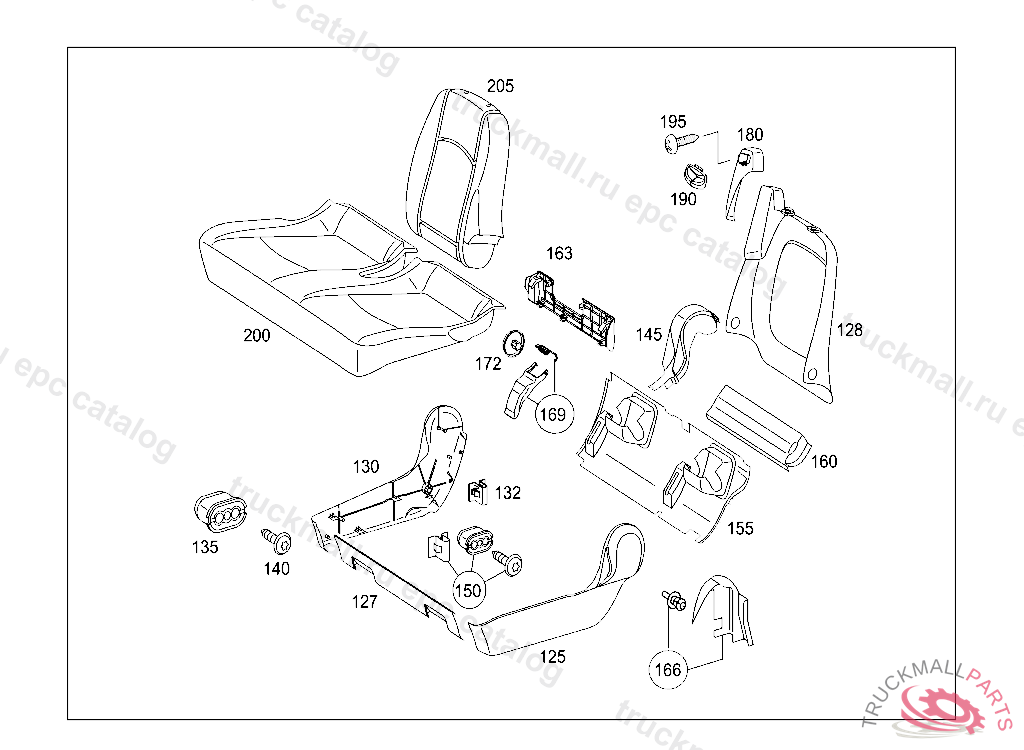

KOMBI - 636.705 - 95 PASSENGER SEATS, MULTI-PASSENGER SEAT
Поз.
Артикул
Описание
125
COVER LATERAL LEFT
127
COVER FRONT
128
COVER BACKREST
130
COVER LATERAL RIGHT
132
SPRING BRACKET FASTENING FOR LINING
135
CLIP FASTENING FOR LINING
140
BOLT FASTENING FOR LINING, Replaced By: N000000000521
140
TAPPING SCREW CONTROL UNIT TO FIRE WALL
145
COVER CONSOLE
150
COVER MOUNTING KIT
155
COVER REAR SEAT FRAMEWORK
160
COVER TABLE POSITION WITH PICTOGRAM
160
COVER TABLE POSITION
163
COVER TABLE POSITION
166
COVER HINGE
169
COVER HINGE
172
COVER ARMREST
180
COVER BELT OUTLET
190
COVER BELT OUTLET
195
TAPPING SCREW CONTROL UNIT TO FIRE WALL
195
BOLT FASTENING FOR LINING, Replaced By: N000000000521
200
SEAT CUSHION
200
SEAT CUSHION
205
CUSHION BACKREST
