Поз.
Артикул
Описание

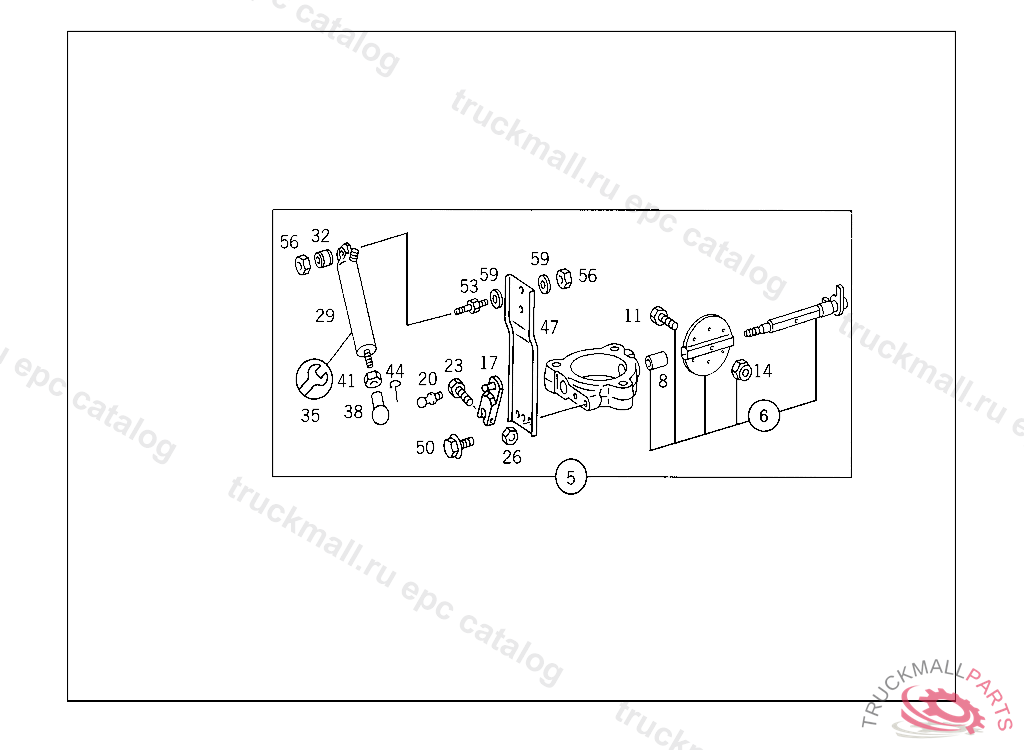

5
THROTTLE HOUSING , Replaced By: A3661405353
6
VALVE PARTS KIT,K 181318N 817421 - N 825202
8
BUSHING
8
BUSHING THROTTLE VALVE SHAFT
11
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
11
SCREW , Replaced By: A0099900101
14
NUT POWER CYLINDER TO BRACKET
17
LEVER , Replaced By: A3661400232, +001N913017006000, +001N914126006025
17
LEVER EXHAUST-BRAKE THROTTLE VALVE
20
BALL PIVOT BOTTOM B13X5 MM
23
SCREW , Replaced By: N000000001479
23
SCREW , Replaced By: N910105006005
23
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
23
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
26
NUT BALL PIVOT TO LEVER
26
NUT , Replaced By: N913023006001
26
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
26
NUT , Replaced By: N910112006001
29
CYLINDER INCREASE IN NUMBER OF REVOLUTIONS KNORR
29
CYLINDER , Replaced By: A0004305926
29
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
29
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
29
CYLINDER INTERMEDIATE SPEED STOP
32
BUSHING"WABCO"
35
REPAIR KITTO 000 430 48 26,KNORR
38
BALL SOCKET SHIFTING CYLINDER TO SHIFT LEVER
38
BALL SOCKET
41
NUT , Replaced By: N304035008001
41
NUT
44
SECURING CLIP. CIRCLIP
47
BRACKET POWER CYLINDER, TO BE ADAPTED DURING ASSEMBLY
47
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 077169/N 817421 - 825202, Replaced By: A3661440440
50
SCREW BRACKET TO THROTTLE HOUSING M 8X14,B 898894
53
PIN INTERMEDIATE SPEED STOP
56
NUT INTERMEDIATE SPEED STOP
59
WASHER INTERMEDIATE SPEED STOP
