Поз.
Артикул
Описание

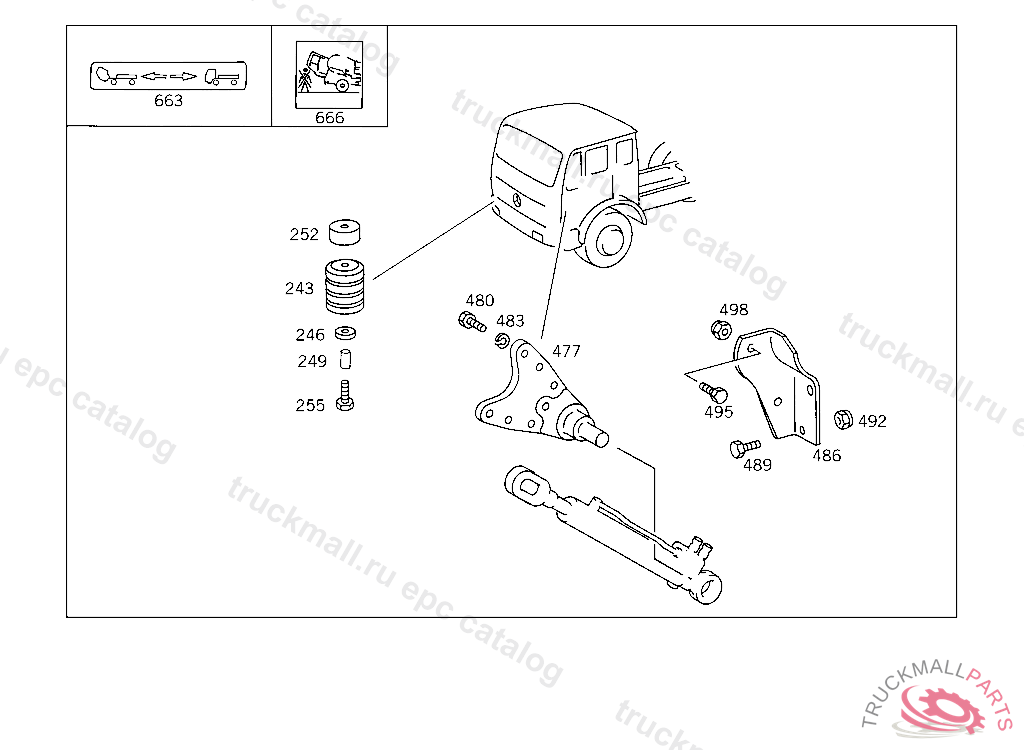

243
BUFFER (HOLLOW RUBBER SPRING),CAB
246
FLANGE HOLLOW RUBBER SPRING
249
SPACER TUBE HOLLOW RUBBER SPRING,5 956657
249
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
252
WASHER HOLLOW RUBBER SPRING
252
WASHER HOLLOW RUBBER SPRING,5 956657
255
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
255
SCREW HOLLOW RUBBER SPRING TO CAB,5 956658
255
SCREW , Replaced By: N304017010049
477
BEARING BRACKET HYDRAULIC CYLINDER
477
BEARING BRACKET HYDRAULIC CYLINDER
477
BEARING BRACKET HYDRAULIC CYLINDER
477
BEARING BRACKET HYDRAULIC CYLINDER
480
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
480
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
480
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X30
480
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
480
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
480
SCREW , Replaced By: N308676012012
483
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
486
REINFORCEMENT RIGHT SHOCK ABSORBER
486
REINFORCEMENT LEFT SHOCK ABSORBER, TO BE ADAPTED DURING ASSEMBLY
489
REINFORCEMENT RIGHT SHOCK ABSORBER
489
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
489
SCREW , Replaced By: N308676014020
489
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
492
NUT , Replaced By: N910113014001
492
NUT BRACKET TO SIDE MEMBER
495
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
495
SCREW , Replaced By: N308676012012
498
NUT SUPPORT TO SIDE MEMBER
663
GUMMED LABEL CAB LOCKING MECHANISM
666
GUIDE SIGN DANGER AREA IN FRONT OF TILTED CAB
