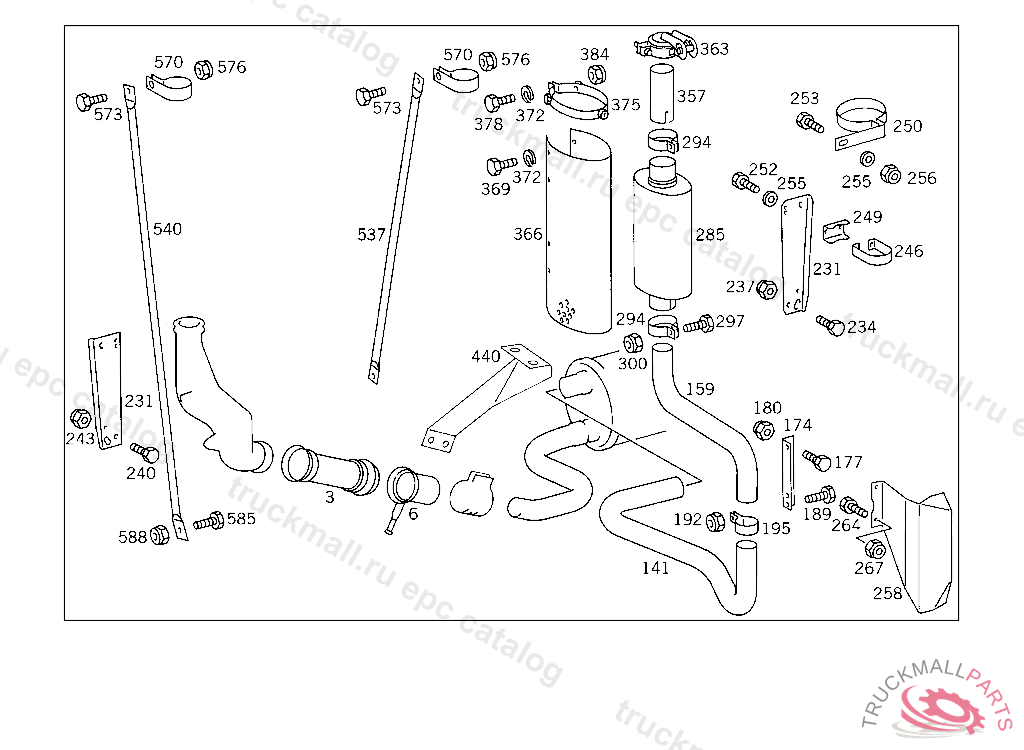

Поз.
Артикул
Описание
3
FLEXIBLE METAL TUBE FRONT
3
FLEXIBLE METAL TUBE CONNECTOR
6
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
6
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
141
INTERMEDIATE PIECE EXHAUST PIPE TO MUFFLER,K 035197
141
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
141
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
159
CONNECTOR REAR EXHAUST PIPE TO MUFFLER
159
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
174
BRACKET TAIL PIPE
174
BRACKET TAIL PIPE
177
SCREW EXHAUST PIPE TO SIDE MEMBER
177
SCREW BRACKET TO SIDE MEMBER
177
SCREW , Replaced By: N304017010002
180
NUT STRAP TO BRACKET
180
NUT EXHAUST PIPE TO SIDE MEMBER
180
NUT , Replaced By: N910113010000
189
SCREW , Replaced By: N304017012020
189
SCREW , Replaced By: N304017010002
189
SCREW EXHAUST PIPE TO SIDE MEMBER
189
SCREW END PIECE TO EXHAUST PIPE M 12X30
189
SCREW BRACKET TO SIDE MEMBER
189
SCREW EXHAUST PIPE TO BRACKET ON SIDE MEMBER
192
NUT STRAP TO BRACKET
192
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
192
NUT , Replaced By: N910113012003
192
NUT , Replaced By: N910113010000
192
NUT EXHAUST PIPE TO SIDE MEMBER
195
CLAMP EXHAUST PIPE
195
CLAMP , Replaced By: A6554920340
195
CLAMP EXHAUST PIPE
231
BRACKET BRACKET TO CROSS CONNECTION STRUT
234
SCREW , Replaced By: N308676014020
234
SCREW , Replaced By: N304017008034
234
SCREW , Replaced By: N304017008021
234
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
234
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
234
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
234
SCREW BRACKET TO CAB CONSOLE,K 035197
234
SCREW PIPE CLAMP
234
SCREW BRACKET TO CROSS CONNECTION STRUT
237
NUT BRACKET TO CAB CONSOLE
237
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
237
NUT BRACKET TO SIDE MEMBER
237
NUT , Replaced By: N913004008001
237
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
237
NUT PARTICLE FILTER M14
237
NUT , Replaced By: N910113014001
240
SCREW , Replaced By: N304017008034
240
SCREW , Replaced By: N304017008021
240
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
240
SCREW PIPE CLAMP
240
SCREW BRACKET TO CROSS CONNECTION STRUT
243
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
243
NUT , Replaced By: N910113014001
243
NUT , Replaced By: N913004008001
243
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
243
NUT BRACKET TO SIDE MEMBER
246
CLAMP EXHAUST PIPE TO BRACKET
249
BASE PLATE BRACKET TO SIDE MEMBER
249
BASE PLATE , Replaced By: A6524920118
250
BRACKET BRACKET TO CROSS CONNECTION STRUT
252
SCREW CLAMP TO BRACKET,5 597426
252
SCREW BRACKET TO CROSS CONNECTION STRUT
252
SCREW , Replaced By: N304017008034
252
SCREW , Replaced By: N910142008009
253
SCREW , Replaced By: N910142008001
253
SCREW BRACKET TO BRACKET
255
WASHER EXHAUST MUFFLER TO STRAP
255
WASHER , Replaced By: N000125008443
256
NUT BRACKET TO BRACKET
258
PROTECTIVE PLATE FUEL TANK
258
PROTECTIVE PLATE (HEAT SHIELD)
258
PROTECTIVE PLATE (HEAT SHIELD) 510 MM
258
PROTECTIVE PLATE (HEAT SHIELD)
264
SCREW BRACKET TO SIDE MEMBER
264
SCREW EXHAUST PIPE TO SIDE MEMBER
264
SCREW , Replaced By: N304017010002
267
NUT , Replaced By: N910113010000
267
NUT EXHAUST PIPE TO SIDE MEMBER
267
NUT STRAP TO BRACKET
285
EXHAUST MUFFLER (POSTERIOR MUFFLER)
294
CLAMP , Replaced By: N071555090502
294
CLAMP EXHAUST PIPE
294
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
297
SCREW BRACKET TO SIDE MEMBER
297
SCREW EXHAUST PIPE TO SIDE MEMBER
297
SCREW , Replaced By: N304017010002
300
NUT , Replaced By: N910113010000
300
NUT EXHAUST PIPE TO SIDE MEMBER
300
NUT STRAP TO BRACKET
357
END PIECE BEHIND CAB,UPWARD
357
END PIECE , Replaced By: A6524928614
363
FLAP (RAIN DEFLECTOR)
366
PROTECTIVE PLATE , Replaced By: A6504920030
366
PROTECTIVE PLATE (HEAT SHIELD)
369
SCREW , Replaced By: N304017008008
369
SCREW PROTECTIVE PLATE TO CLAMP
369
WASHER PROTECTIVE PLATE TO CLAMP
369
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
369
SCREW CLAMP TO BRACKET AND TO PIPE
372
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
375
CLAMP HEAT SHIELD TO TAILPIPE
378
SCREW EXHAUST PIPE TO SIDE MEMBER
378
SCREW BRACKET TO SIDE MEMBER
378
SCREW , Replaced By: N304017010002
378
SCREW EXHAUST PIPE TO BRACKET
384
NUT EXHAUST PIPE TO SIDE MEMBER
384
NUT , Replaced By: N910113010000
384
NUT STRAP TO BRACKET
440
BRACKET REAR EXHAUST PIPE
440
BRACKET , Replaced By: A3464910441
537
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
537
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
540
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
570
CLAMP EXHAUST PIPE TO BRACKET
570
CLAMP HEAT SHIELD TO TAILPIPE
573
SCREW BRACKET TO SIDE MEMBER
573
SCREW BRACKET TO CROSS CONNECTION STRUT
573
SCREW END PIECE TO EXHAUST PIPE M 10X25
573
SCREW EXHAUST PIPE TO SIDE MEMBER
573
SCREW , Replaced By: N304017010002
573
SCREW , Replaced By: N304017008034
576
NUT , Replaced By: N910113010000
576
NUT , Replaced By: N913004008001
576
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
576
NUT EXHAUST PIPE TO SIDE MEMBER
576
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
576
NUT STRAP TO BRACKET
585
SCREW SUPPORT TO FENDER
585
SCREW PIPE CLAMP
585
SCREW , Replaced By: N304017008018
585
SCREW , Replaced By: N304017008021
588
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
588
NUT , Replaced By: N913004008001
588
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
CLAMP , Replaced By: N071555090502
999
WASHER , Replaced By: N000125008443
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
CLAMP REAR EXHAUST PIPE TO MUFFLER
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
CONNECTOR ,K 035197
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET , Replaced By: A3464910441
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET TAIL PIPE TO SIDE MEMBER,5 760772
999
END PIECE (TAIL PIPE)
999
CONNECTOR ,5 953233K 035196
999
END PIECE (TAIL PIPE),5 5975185 758825
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE
999
END PIECE
999
END PIECE (TAIL PIPE)
999
END PIECE TAIL PIPE
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT,5 484828
999
END PIECE RIGHT
999
BRACKET
999
PROTECTIVE PLATE , NOT USED
999
END PIECE (TAIL PIPE),5 564478
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE (TAIL PIPE),5 597517
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE TAIL PIPE,FRONT,K 027551
999
SUPPORT TAIL PIPE
999
END PIECE RIGHT
999
END PIECE (TAIL PIPE)
999
SUPPORT TAIL PIPE
999
END PIECE LEFT
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
999
EXHAUST PIPE FRONT
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
EXHAUST PIPE ,5 953233
999
EXHAUST PIPE FRONT,REAR PART,5 564479
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
STRAP , Replaced By: A6524900442
999
BRACKET , Replaced By: A6205240140
999
CLAMP EXHAUST PIPE TO BRACKET
999
BRACKET COVERING
999
SPACER TUBE , Replaced By: A3140720253
999
FLEXIBLE METAL TUBE CONNECTOR
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
BRACKET , Replaced By: A6524921441
999
BRACKET TAIL PIPE
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET EXHAUST PIPE TO SUPPORT
999
END PIECE
999
END PIECE
999
BRACKET REAR EXHAUST MUFFLER TO SUPPORT
999
END PIECE BEHIND CAB,UPWARD
999
BRACKET , Replaced By: A6174926341
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
999
SUPPORT EXHAUST PIPE
