Mercedes
CAR
C 350 CGI
204.057
68 PANELLING
205 DETACHABLE COMPONENTS,INSTRUMENT PANEL

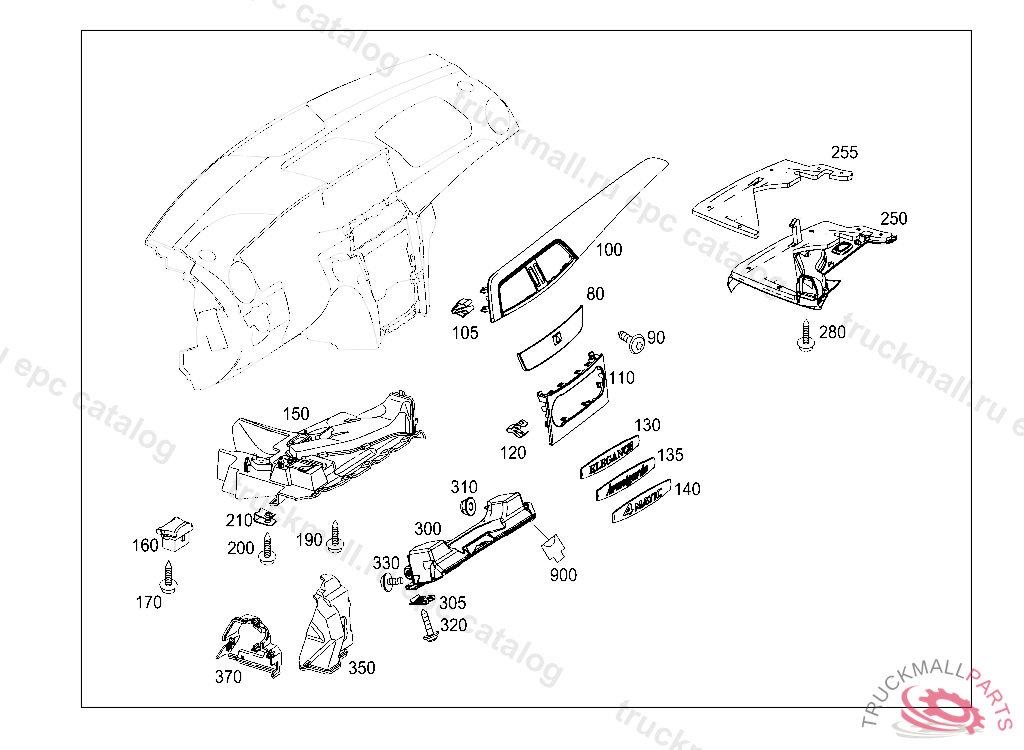

C 350 CGI - 204.057 - 68 PANELLING

Поз.
Артикул
Описание
90
A0019846529
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
90
A0019845529
BOLT. SCREW
100
A2046801771
MOULDING
100
A2046801471
MOULDING
100
A2046802971
MOULDING
100
A2046802871
MOULDING
100
A2046804871
MOULDING
100
A2046809171
MOULDING
100
A2046808671
MOULDING
100
A2046801871
MOULDING
100
A2046802171
MOULDING
100
A2046801371
MOULDING
100
A2046801671
MOULDING
100
A2046801971
MOULDING
100
A2046802271
MOULDING
100
A2046802071
MOULDING
100
A2046804971
MOULDING
100
A2046801571
MOULDING
105
A2039882878
CLIP PANELLING
110
A2046803508
COVER OPERATING UNIT, HEATER AND AIR COND., A 72491920120329 L 05940620120430 V 00473420120430 F 90441820120401 L 19131720120717
110
A2046809208
COVER OPERATING UNIT, HEATER AND AIR COND., A 72492020120329 L 05940720120430 V 00473520120430 F 90441920120401 L 19131820120717
120
A1696890022
CLIP AT COVERING
130
A2126800074
SYMBOL STRIP
135
A2126800174
SYMBOL STRIP
150
A2046801608
COVER DRIVER SIDE UNDER INSTRUMENT PANEL, WITH RELEASE HANDLE
150
A2046800108
COVER DRIVER SIDE UNDER INSTRUMENT PANEL, WITH RELEASE HANDLE
160
A2025402373
BRACKET DIAGNOSIS PLUG SOCKET,V 202043
170
A0019847429
BOLT. SCREW LINE MOUNTING
190
N000000000888
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
200
N000000000888
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
210
A2029940245
CLIP FASTENER MOUNTING, FOOTWELL COVER DRIVER SIDE 4,2
250
A2046800282
COVER PASSENGER SIDE, BELOW INSTRUMENT PANEL, Replaced By: A2046808208
250
A2046808208
COVER, FOOTWELL PASSENGER SIDE, BELOW INSTRUMENT PANEL
250
A2046800382
COVER PASSENGER SIDE, BELOW INSTRUMENT PANEL, F 94200220120710
250
A2046808108
COVER, FOOTWELL PASSENGER SIDE, BELOW INSTRUMENT PANEL, A 20120711 L 06258120120731 V 00516720120731 F 94200320120710 R 25609220120905
255
A2046823704
INSULATION PASSENGER SIDE, BELOW INSTRUMENT PANEL
280
A0019846529
HEX. ROUND SCREWS. SCREW BRACKET TO SUPPORT M5 X 20
300
A2048601902
AIR BAG KNEE AIRBAG
300
A2048602002
AIR BAG KNEE AIRBAG
305
A0009907956
NUT MOUNTING, KNEEBAG TO INSTRUMENT PANEL 4,2
310
N000000003477
NUT BRACKET TO BODY SHELL M6
320
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
330
A0019846229
BOLT CONTACT PLATE FASTENER M5X10
350
A2046890408
COVER PEDAL ASSEMBLY
350
A2046890008
COVER PEDAL ASSEMBLY
370
A2046891308
COVER PARKING BRAKE
900
A0025402305
REP.SET CONTACT WINDOWBAG SQUIB, REAR 2-PIN 0.5MM2,R12/22 R12/23
