Поз.
Артикул
Описание

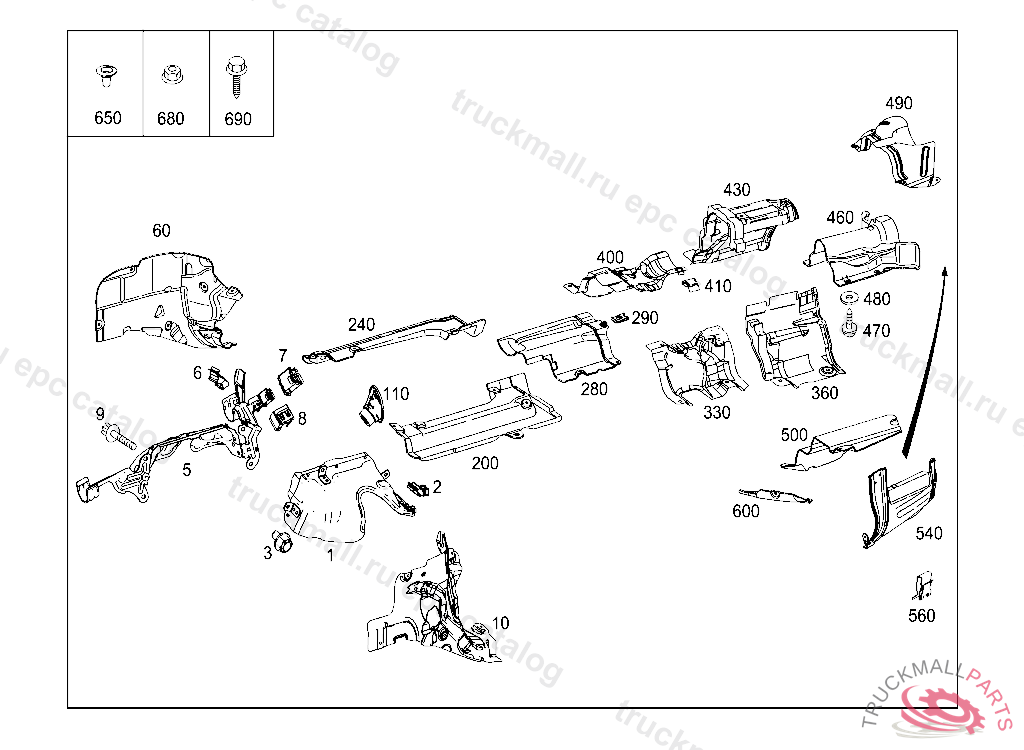

1
SCREENING PLATE LEFT
2
LINE FASTENER
3
SCREW STEERING SHAFT BEARING TO CAB
5
SCREENING PLATE RIGHT
6
CABLE HOLDER
7
SPRING CLAMP FOR SENSOR CONNECTOR 28X24 MM
8
SPRING CLAMP FOR 4-PIN SENSOR
9
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
10
SHIELDING TO FIRE WALL,LEFT, F 19550820080601 R 02095520080512
10
SHIELDING TO FIRE WALL,LEFT, F 56284020100831
60
SHIELDING TO FIRE WALL,RECHTS
60
SHIELDING TO FIRE WALL,RECHTS, A 20111219 L 05683920120131 V 00432720120131 F 84944820120108 R 22276320120215
60
SHIELDING TO FIRE WALL,RECHTS, A 20111219 L 05683820120131 V 00432620120131 F 84944720120108 R 22276220120215
60
SHIELDING TO FIRE WALL,RECHTS, Replaced By: A2046820272
110
SHIELDING STEERING JOINT BOOT
110
SHIELDING STEERING JOINT BOOT
200
SCREENING TO MAIN FLOOR LEFT, F 84944720120108
200
SHIELDING TO MAIN FLOOR LEFT
240
SHIELDING FLOOR,RIGHT
280
SCREENING OVER CATALYST, F 84944720120108
280
SHIELDING OVER CATALYST
290
LOCK RIGHT PANELLING TO SIDE MEMBER
330
SCREENING OVER FRONT LEFT CENTER MUFFLER
360
SCREENING OVER REAR LEFT CENTER MUFFLER
400
SCREENING OVER FRONT RIGHT CENTER MUFFLER
410
SPRING CLAMP FOR REAR MUFFLER SHIELDING TO TOPBUMPER
430
SCREENING OVER REAR RIGHT CENTER MUFFLER
460
SCREENING PLATE BELOW FUEL TANK
460
SCREENING PLATE BELOW FUEL TANK
470
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
480
WASHER AIR VENT FASTENING
490
SCREENING ABOVE PROPELLER SHAFT
500
SCREENING REAR MUFFLER RIGHT, INSIDE
500
SCREENING REAR MUFFLER, LEFT, INSIDE
540
SCREENING REAR MUFFLER, LEFT, OUTER
540
SCREENING REAR MUFFLER, RIGHT, OUTER
560
SPRING CLAMP FOR REAR MUFFLER SHIELDING TO TOPBUMPER
600
SCREENING SPARE WHEEL WELL,RIGHT
600
SCREENING SPARE WHEEL WELL,LEFT
650
HEXAGON NUT W COLLAR BRACKET MOUNTING
680
NUT , Replaced By: N913023006001
690
TAPPING SCREW ATTACHMENT SHIELD 4.8X13
