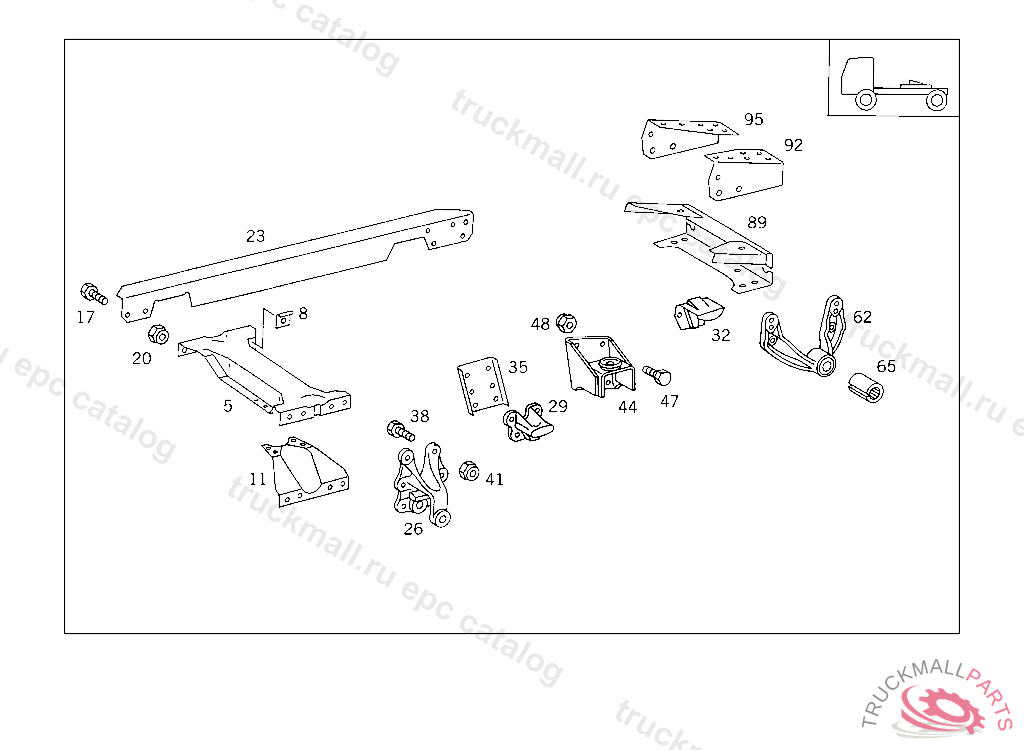

Поз.
Артикул
Описание
5
CROSS MEMBERNO.2A
8
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
11
STRUT LEFT AND RIGHT
17
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
20
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
20
NUT , Replaced By: N910113012003
23
ANGLE SADDLE PLATE,RIGHT
23
ANGLE SADDLE PLATE,LEFT
26
REAR SPRING BRACKET FRONT
29
HELPER SPRING BRACKET FRONT AND REAR
32
HELPER SPRING BRACKET FRONT
35
STIFFENING HELPER SPRING BRACKET,FRONT
38
SCREW STEERING SUPPORT TO FRAME M 14X50
38
SCREW STEERING SUPPORT TO FRAME M 14X55
41
NUT STEERING SUPPORT TO FRAME
41
NUT , Replaced By: N910113014000
44
BRACKET BUMPER,LEFT
44
BRACKET BUMPER,RIGHT
47
SCREW APPARATUS SUPPORT TO FRAME
47
SCREW , Replaced By: A9429901304
47
SCREW , Replaced By: N308676014008
47
SCREW MOUNTING TO CONSOLE M 14X35
48
NUT , Replaced By: N910113014000
48
NUT STEERING SUPPORT TO FRAME
62
SPRING BRACKET REAR
65
RUBBER MOUNTING
65
RUBBER MOUNTING
89
CROSS MEMBER (REAR CROSS MEMBER)
89
CROSS MEMBER , Replaced By: A6553120335
92
GUSSET PLATE CROSS MEMBER TO LEFT SIDE MEMBER
95
GUSSET PLATE CROSS MEMBER TO RIGHT SIDE MEMBER
999
HEX. HEAD SCREW. SCREW STRUT TO SIDE MEMBER
999
NUT CROSS MEMBER TO SIDE MEMBERS
