Поз.
Артикул
Описание

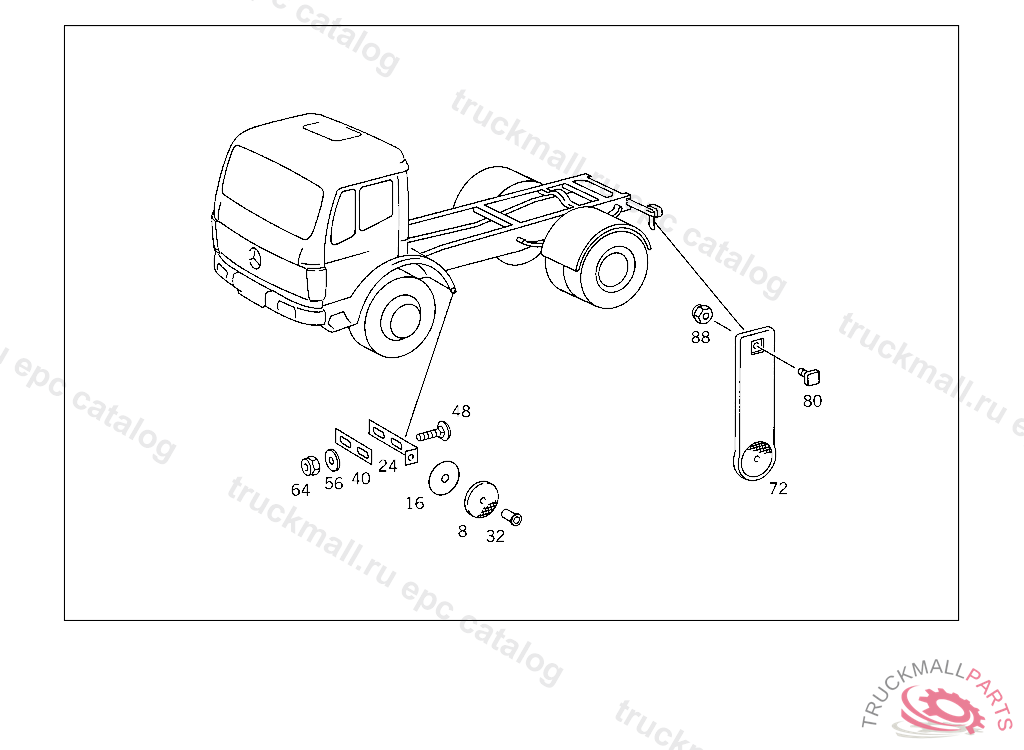

8
REFLECTOR FENDER
8
REFLECTOR FENDER
16
ADHESIVE TAPE REFLECTOR TO CHASSIS
24
BRACKET REFLECTOR TO FENDER,5 952572
32
RIVET REFLECTOR TO BRACKET,5 952572
40
SHIM BRACKET TO FENDER,5 952572
48
SCREW BRACKET TO FENDER,5 952572
56
WASHER COMPRESSED AIR LINE TO BRACKET
56
WASHER , Replaced By: N009021006208
64
NUT PUMP TO BRACKET
64
NUT , Replaced By: N913004006001
72
BRACKET REFLECTOR
72
BRACKET REFLECTOR
80
SCREW REFLECTOR BRACKET TO DUMPER PLATFORM SUBSTRUCTURE
88
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
88
NUT , Replaced By: N913004008001
999
SCREW LINE MOUNTING
999
NUT TWO-WAY VALVE TO BRACKET
