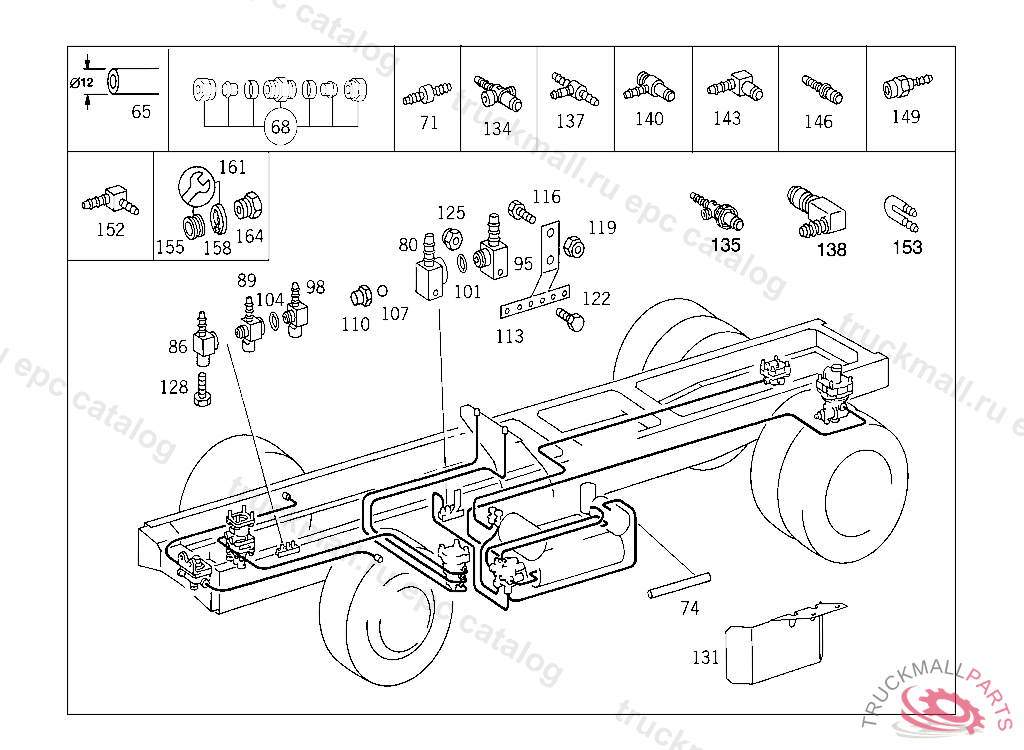

Поз.
Артикул
Описание
65
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
65
HOSE , Replaced By: A0009872827
68
FITTING (PARTS KIT),LINE RUPTURE
71
CONNECTOR REPAIR SIZE
74
INSULATING HOSE AIR DEHYDRATOR, ORDER BY THE METER
80
CONNECTOR DISTRIBUTOR TO FRAME
80
CONNECTOR , Replaced By: A0019903978
86
CONNECTOR DISTRIBUTOR TO CAB
95
CONNECTOR DISTRIBUTOR TO FRAME
101
SEAL RING , Replaced By: A0229973948
101
SEAL RING CONNECTOR 11.8X2 MM
104
SEAL RING
113
BRACKET CONNECTOR TO FRAME
116
SCREW , Replaced By: N304017012020
116
SCREW END PIECE TO EXHAUST PIPE M 12X30
119
NUT END PIECE TO EXHAUST PIPE
122
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
125
NUT , Replaced By: N913004006001
125
NUT PUMP TO BRACKET
128
SCREW EXHAUST BRAKE SEPARATION POINT
134
DISTRIBUTOR LINE CONNECTION
135
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 MM/ 9 MM
137
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
138
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
140
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
143
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
146
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
149
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
152
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
153
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
155
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
158
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
161
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
164
SCREW. UNION SCREW LINE CONNECTION
999
BRACKET AT LEFT SIDE MEMBER
999
BRACKET COMPRESSED AIR LINE TO ENGINE
