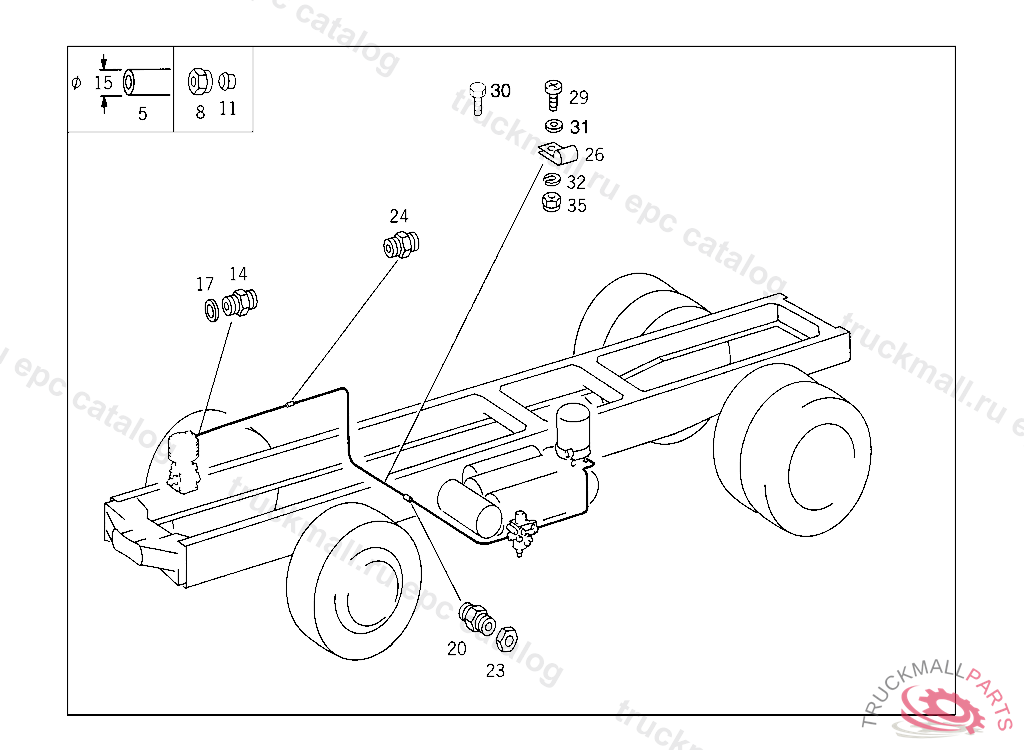

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
17
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
20
BULKHEAD FITTING THROUGH SIDE MEMBER
23
NUT CHECK VALVE TO AIR RESERVOIR
24
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
26
CLAMP DELIVERY AND SUCTION LINES TO STEERING
26
CLAMP , Replaced By: A6739950001
29
SCREW CLAMP MOUNTING M 6X16
29
SCREW , Replaced By: N000000001146
30
SCREW PUMP TO BRACKET
30
SCREW , Replaced By: N304017006016
32
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
35
NUT PUMP TO BRACKET
35
NUT , Replaced By: N913004006001
