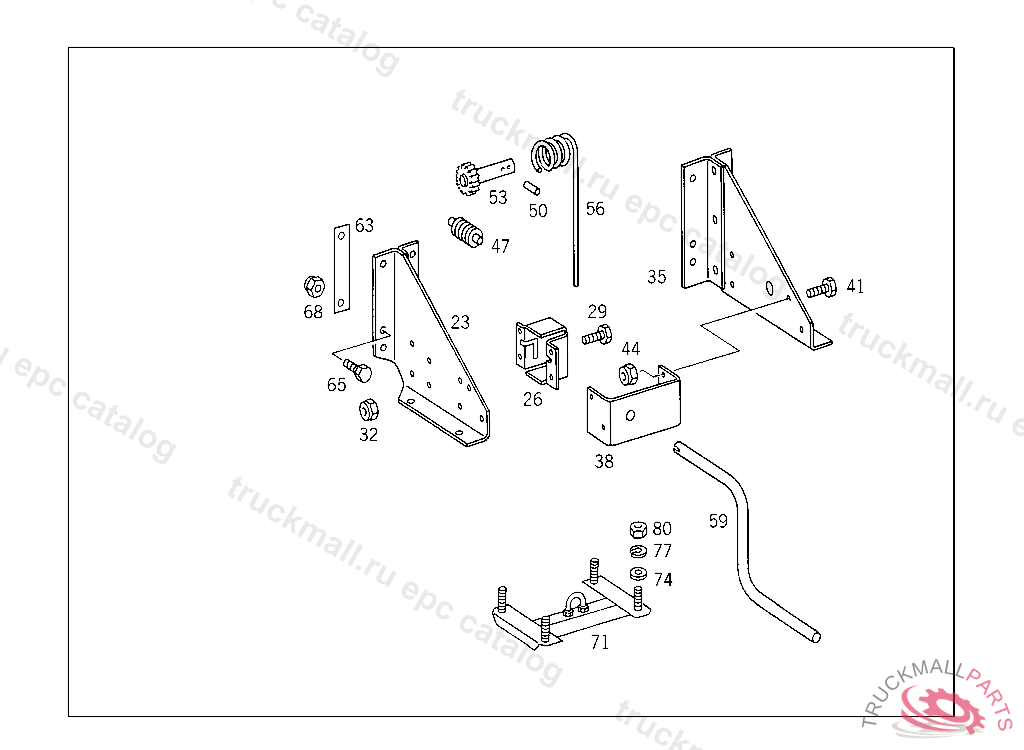

Поз.
Артикул
Описание
23
BRACKET SPARE WHEEL MOUNTING,5 962476
23
BRACKET LEFT
26
BEARING BRACKET AT BRACKET
29
SCREW BRACKET TO SIDE MEMBER
29
SCREW , Replaced By: N304017010002
32
NUT STRAP TO BRACKET
32
NUT , Replaced By: N910113010000
35
BRACKET SPARE WHEEL MOUNTING,5 962476
35
BRACKET RIGHT
38
BRACKET SPARE WHEEL CARRIER
41
SCREW CONSOLE TO SIDE MEMBER
41
SCREW CONSOLE TO SIDE MEMBER
44
NUT SUPPORT TO SIDE MEMBER
44
NUT SUPPORT TO SIDE MEMBER
47
WORM
50
CLAMPING SLEEVE CRANK TO BUSHING
53
STOP GEAR SPARE WHEEL CARRIER,5 127460
56
WIRE CABLE
59
CRANK SPARE WHEEL HOIST 340MM
59
CRANK , Replaced By: A6504030045
63
BASE BRACKET TO FRAME
65
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
68
NUT BRACKET TO SIDE MEMBER
68
NUT , Replaced By: N910113014001
71
BRACKET SPARE WHEEL
74
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
74
WASHER , Replaced By: N000125015019
77
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
80
NUT BRACKET TO SIDE MEMBER,K 035196
80
NUT , Replaced By: N308673014001
