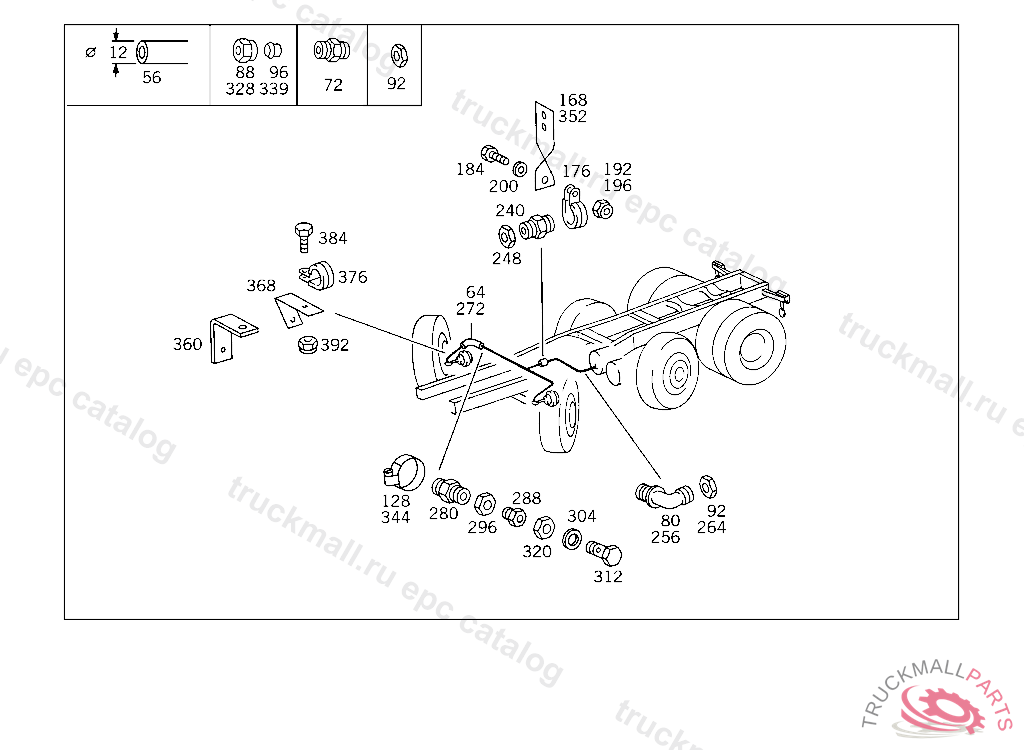

Поз.
Артикул
Описание
56
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
64
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
72
FITTING DELIVERY LINE TO FRAME
72
FITTING PRESSURE LIMIT,CIRCUIT II
72
FITTING AIR RESERVOIR,CONNECTION: "13"
72
FITTING DIAPHRAGM CYLINDER,CONNECTION:
72
FITTING DIAPHRAGM CYLINDER,CONNECTION:
80
ELBOW FITTING , Replaced By: A0029901271
88
UNION NUT LINE CONNECTION
88
UNION NUT BUTT SCREW CONNECTION
88
UNION NUT LINE CONNECTION
88
UNION NUT LINE CONNECTION, Replaced By: N000000006239
92
NUT CHECK VALVE TO AIR RESERVOIR
96
GLAND LINE CONNECTION
96
SEAL CONE LINE CONNECTION
96
GLAND , Replaced By: A0019901967
128
CLAMP HOSE TO FITTING AND TO OIL TANK
168
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
168
BRACKET , Replaced By: A3224923319
176
CLAMP 3/2-WAY SOLENOID VALVE
176
CLAMP DELIVERY AND SUCTION LINES TO STEERING
176
CLAMP , Replaced By: A6739950001
176
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
176
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
176
CLAMP ,K 147121, Replaced By: N000000000319
176
CLAMP , Replaced By: N916016008200
176
CLAMP , Replaced By: A3604300143
176
CLAMP LINE MOUNTING
176
CLAMP LINE MOUNTING
176
CLAMP HOSE TO FITTING AND TO OIL TANK
184
SCREW LICENSE PLATE TO BRACKET
184
SCREW , Replaced By: N304017006020
184
SCREW CLAMP TO BRACKET
184
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
184
SCREW PUMP TO BRACKET
184
SCREW PUMP TO BRACKET M 6X20
184
SCREW , Replaced By: N304017006016
192
NUT PUMP TO BRACKET
192
NUT , Replaced By: N913004006001
196
NUT PUMP TO BRACKET
196
NUT , Replaced By: N913004006001
200
WASHER COMPRESSED AIR LINE TO BRACKET
200
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
240
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
248
NUT CHECK VALVE TO AIR RESERVOIR
256
ELBOW FITTING DELIVERY LINE TO PUMP
256
FITTING , Replaced By: A0019902771
264
NUT BRACKET TO SIDE MEMBER
272
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
272
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
280
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
280
FITTING DIAPHRAGM CYLINDER,CONNECTION:
280
FITTING DIAPHRAGM CYLINDER,CONNECTION:
288
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
296
NUT CHECK VALVE TO AIR RESERVOIR
304
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
312
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
320
NUT BRACKET TO SIDE MEMBER
328
UNION NUT LINE CONNECTION
328
UNION NUT LINE CONNECTION, Replaced By: N000000006239
339
SEAL CONE LINE CONNECTION
339
GLAND , Replaced By: A0019901967
344
CLAMP HOSE TO FITTING AND TO OIL TANK
352
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
352
BRACKET , Replaced By: A3224923319
360
BRACKET COMPRESSED AIR LINE MOUNTING
368
BRACKET COMPRESSED AIR LINE TO TRANSMISSION CASE
368
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
368
BRACKET , Replaced By: A3604292940
376
CLAMP LINE MOUNTING
384
SCREW PUMP TO BRACKET
384
SCREW , Replaced By: N304017006016
392
NUT PUMP TO BRACKET
392
NUT , Replaced By: N913004006001
999
CLAMP LINE MOUNTING
999
BRACKET LOCKING STRIP
