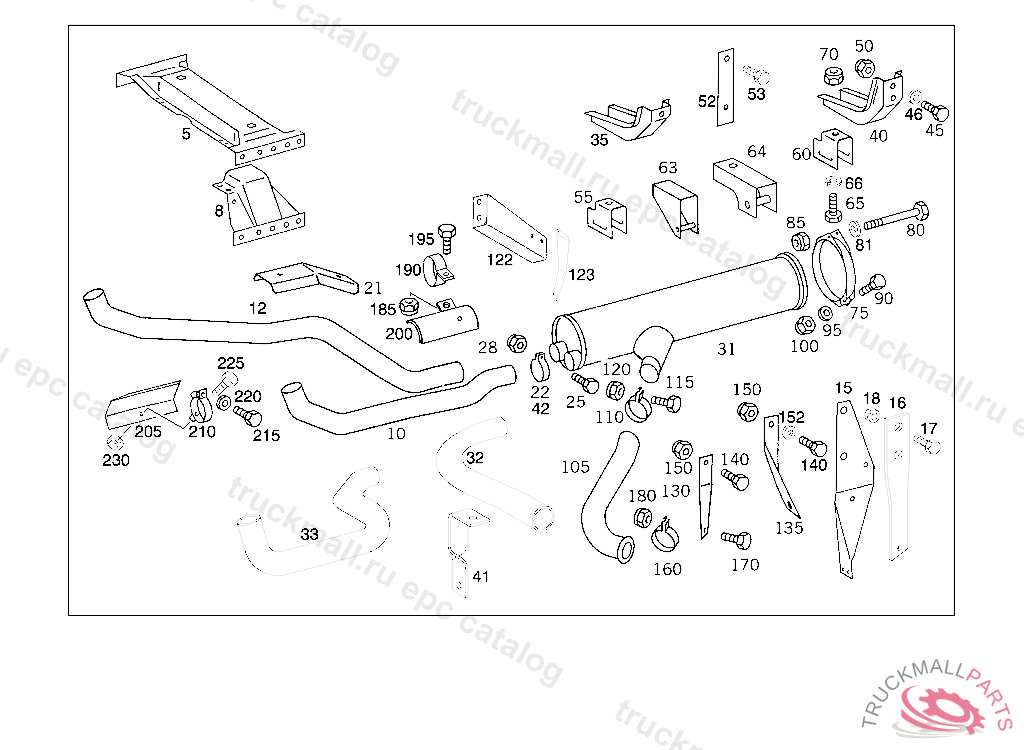

Поз.
Артикул
Описание
5
CROSS MEMBERNO.3A
5
CROSS MEMBER , Replaced By: A6243120025, +002A6243120261
5
CROSS MEMBER , Replaced By: A6593100836
8
STRUT LEFT AND RIGHT
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER,K 005042
10
EXHAUST PIPE FRONT
10
EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 058090, Replaced By: A6554904720
10
EXHAUST PIPE , Replaced By: A6554905620
10
EXHAUST PIPE FRONT
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FRONT,REAR LEFT PART
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
10
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
12
EXHAUST PIPE FRONT,REAR RIGHT PART
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER, RIGHT
12
EXHAUST PIPE FRONT
12
EXHAUST PIPE , Replaced By: A6554903720
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
12
EXHAUST PIPE FRONT
12
EXHAUST PIPE FROM SLIDING PIECE TO EXHAUST MUFFLER
15
BRACKET FRONT EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
16
BRACKET EXHAUST PIPE TO SIDE MEMBER
17
SCREW BRACKET TO SIDE MEMBER
18
NUT , Replaced By: N308673014001
18
NUT BRACKET TO SIDE MEMBER,K 035196
21
PROTECTIVE PLATE FUEL TANK
21
PROTECTIVE PLATE FUEL TANK
21
PROTECTIVE PLATE FUEL TANK
21
PROTECTIVE PLATE FUEL TANK
21
PROTECTIVE PLATE FUEL TANK
22
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
22
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
22
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
22
CLAMP , Replaced By: N071555100501
22
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
25
SCREW BRACKET TO SIDE MEMBER
25
SCREW BRACKET TO SIDE MEMBER
25
SCREW BRACKET TO SIDE MEMBER
25
SCREW BRACKET TO SIDE MEMBER
25
SCREW , Replaced By: N304017010002
28
NUT STRAP TO BRACKET
28
NUT STRAP TO BRACKET
28
NUT STRAP TO BRACKET
28
NUT STRAP TO BRACKET
28
NUT , Replaced By: N910113010000
31
EXHAUST MUFFLER ,5 535800
31
EXHAUST MUFFLER ,5 518156
31
EXHAUST MUFFLER
31
EXHAUST MUFFLER (POSTERIOR MUFFLER)
31
EXHAUST MUFFLER ,5 535800
31
EXHAUST MUFFLER
31
EXHAUST MUFFLER
31
EXHAUST MUFFLER
32
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
33
CONNECTOR INTERMEDIATE PIECE TO FRONT EXHAUST PIPE AND TO EXHAUST MUFFLER
33
CONNECTOR INTERMEDIATE PIECE TO FRONT EXHAUST PIPE AND TO EXHAUST MUFFLER
35
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
35
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
35
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
35
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
40
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
40
CONSOLE , Replaced By: A6204910215
40
CONSOLE REAR EXHAUST MUFFLER 200 MM
40
CONSOLE REAR EXHAUST MUFFLER 132 MM
40
CONSOLE REAR EXHAUST MUFFLER 132 MM
40
CONSOLE REAR EXHAUST MUFFLER 276 MM
40
CONSOLE REAR EXHAUST MUFFLER 126 MM
40
CONSOLE REAR EXHAUST MUFFLER 200 MM
40
CONSOLE EXHAUST MUFFLER,FRONT
41
BRACKET
42
CLAMP TAIL PIPE TO APPARATUS SUPPORT
45
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
45
SCREW , Replaced By: N308676012011
45
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
45
SCREW CONSOLE TO SIDE MEMBER
45
SCREW CONSOLE TO SIDE MEMBER
45
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
45
SCREW CONSOLE TO SIDE MEMBER
45
SCREW BRACKET TO SIDE MEMBER
45
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
45
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
45
SCREW CONSOLE TO SIDE MEMBER
45
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
45
SCREW , Replaced By: N308676012026
46
WASHER BRACKET TO COVERING
46
WASHER , Replaced By: N009021010209
50
NUT SUPPORT TO SIDE MEMBER
50
NUT SUPPORT TO SIDE MEMBER
50
NUT STRAP TO BRACKET
50
NUT , Replaced By: N910113010000
50
NUT SUPPORT TO SIDE MEMBER
50
NUT SUPPORT TO SIDE MEMBER
52
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X1.5X75
53
BASE CONSOLE TO SIDE MEMBER
55
BRACKET AT SUPPORT
55
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
60
BRACKET REAR EXHAUST PIPES
60
BRACKET EXHAUST MUFFLER SUSPENSION
60
BRACKET EXHAUST MUFFLER SUSPENSION
60
BRACKET AT SUPPORT
60
BRACKET REAR EXHAUST MUFFLER
60
BRACKET STRAP
60
BRACKET EXHAUST MUFFLER SUSPENSION
60
BRACKET AT SUPPORT
60
BRACKET EXHAUST MUFFLER SUSPENSION
60
BRACKET REAR EXHAUST PIPE
60
BRACKET EXHAUST MUFFLER
60
BRACKET STRAP
60
BRACKET STRAP
60
BRACKET REAR EXHAUST PIPES
60
BRACKET REAR EXHAUST PIPES
60
BRACKET REAR EXHAUST MUFFLER
60
BRACKET REAR EXHAUST MUFFLER
63
BRACKET EXHAUST MUFFLER SUSPENSION
63
BRACKET STRAP
64
BRACKET REAR EXHAUST MUFFLER
64
BRACKET BRACKET TO SIDE MEMBER
65
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
65
SCREW , Replaced By: N910105010009
65
SCREW END PIECE TO EXHAUST PIPE M 10X25
65
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
65
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
66
LOCK WASHER BRACKET TO TRANSMISSION CASE,5 537500
70
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
70
NUT , Replaced By: N913023010002
70
NUT STRAP TO BRACKET
70
NUT , Replaced By: N910113010000
75
STRAP , Replaced By: A6204900042, +001N000933008165
75
STRAP EXHAUST MUFFLER TO BRACKET
75
STRAP EXHAUST MUFFLER TO BRACKET
75
STRAP EXHAUST MUFFLER TO BRACKET
75
STRAP , Replaced By: A6204900042
80
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
80
SCREW , Replaced By: N910105010012
80
SCREW STRAP TO BRACKET
80
HEXALOBULAR BOLT STRAP TO BRACKET
80
SCREW STRAP TO BRACKET, Replaced By: N000000005874
80
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
80
SCREW BRACKET TO BELL HOUSING
80
SCREW PIPE ELBOW TO BRACKET M 10X50
80
SCREW STRAP TO BRACKET
80
SCREW STRUT TO SUPPORT
80
SCREW PIPE ELBOW TO BRACKET M 10X50
80
SCREW , Replaced By: N304017010053
80
SCREW , Replaced By: N304017010030
80
SCREW STRAP TO BRACKET
81
WASHER RADIATOR TO RUBBER MOUNTING
81
WASHER , Replaced By: N000125010532
85
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
85
NUT , Replaced By: N913023010002
85
NUT STRAP TO BRACKET
85
NUT , Replaced By: N910113010000
90
HEXALOBULAR BOLT TRAVEL SENSOR TO BRACKET,K 186868
90
SCREW , Replaced By: N910143008021
90
SCREW BRACKET TO CROSS MEMBER M 8X45
90
SCREW EXHAUST MUFFLER TO STRAP
95
WASHER EXHAUST MUFFLER TO STRAP
95
WASHER , Replaced By: N000125008443
100
NUT , Replaced By: N913004008001
100
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
100
NUT
105
REAR EXHAUST PIPE ,5 444690
105
REAR EXHAUST PIPE ,5 444691
105
REAR EXHAUST PIPE ,5 444690
105
REAR EXHAUST PIPE , Replaced By: A6554922914
105
END PIECE
105
END PIECE
105
REAR EXHAUST PIPE
105
REAR EXHAUST PIPE ,5 444690
105
EXHAUST PIPE REAR
105
REAR EXHAUST PIPE
105
END PIECE , Replaced By: A6554926905
105
REAR EXHAUST PIPE TAIL PIPE ON THE RIGHT
105
EXHAUST PIPE ,5 953233
105
END PIECE ,K 005042
105
END PIECE TAIL PIPE ON THE RIGHT
105
END PIECE , NOT USED
