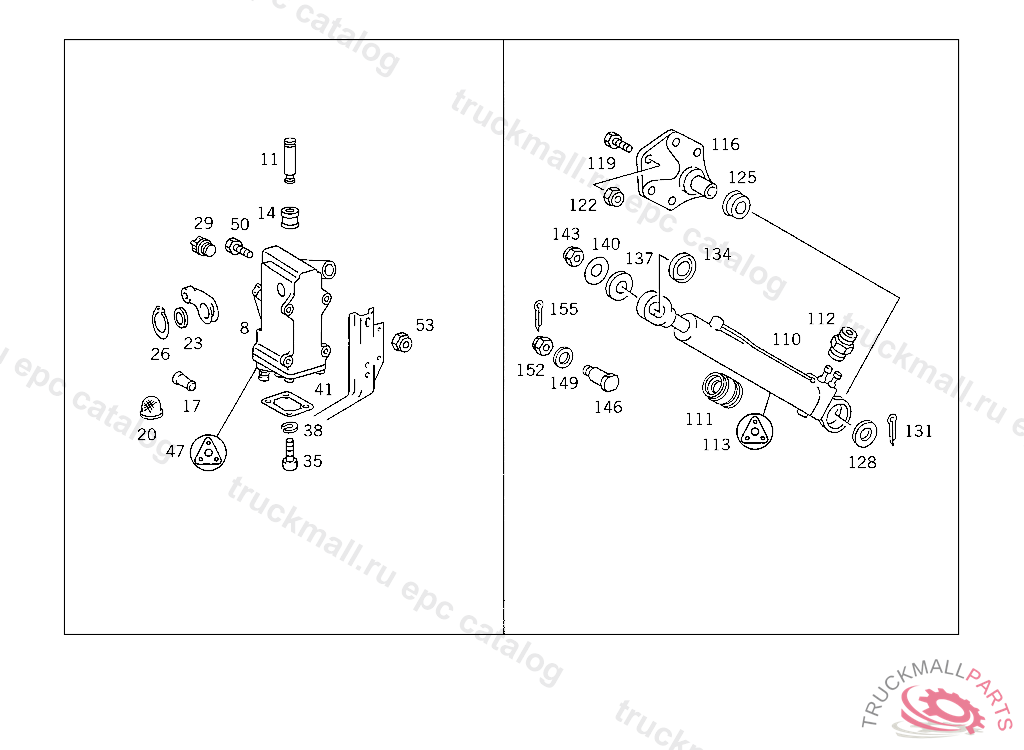

Поз.
Артикул
Описание
8
PUMP (HAND PUMP) POWER PACKER
8
PUMP (HAND PUMP) WEBER
11
PISTONTO 000 553 79 01,WEBER
14
VALVETO 000 553 79 01,WEBER
17
FILTER
23
FITTED WASHER
26
LOCK RING
29
SCREWTO 000 553 65 01,000 553 69 01,
29
SCREW
35
SCREW
35
SCREW , Replaced By: N000000000190
38
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
47
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
47
GASKET KIT HAND PUMP
50
SCREW BRACKET TO SIDE MEMBER
50
SCREW , Replaced By: N304017010002
50
SCREW END PIECE TO EXHAUST PIPE M 10X25
53
NUT STRAP TO BRACKET
53
NUT , Replaced By: N910113010000
110
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
110
CYLINDER , Replaced By: A0015533505
110
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
111
GUIDEWEBER
112
FITTINGWEBER,TO 001 553 35 05
113
GASKET KIT HYDRAULIC CYLINDER WEBER
116
BEARING BRACKET HYDRAULIC CYLINDER
119
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
119
SCREW , Replaced By: N308676016006
119
SCREW BEARING BRACKET TO FRAME M 14X20, MODEL 415/416/417 FOR USE WITH SHORT CAB MERCEDES BENZ
122
NUT CONSOLE TO SUPPORT
122
NUT , Replaced By: N910113016001
125
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
128
WASHER HYDRAULIC CYLINDER TO CAB
131
COTTER PIN6,3X36 MM
134
WASHER HYDRAULIC CYLINDER TO CAB
137
WASHER HYDRAULIC CYLINDER TO CAB
140
WASHER HYDRAULIC CYLINDER TO CAB
143
NUT COMBINATION CYLINDER TO BEARING BRACKET
143
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
146
PIN HYDRAULIC CYLINDER TO SWIVEL ARM
149
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
155
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
