Поз.
Артикул
Описание

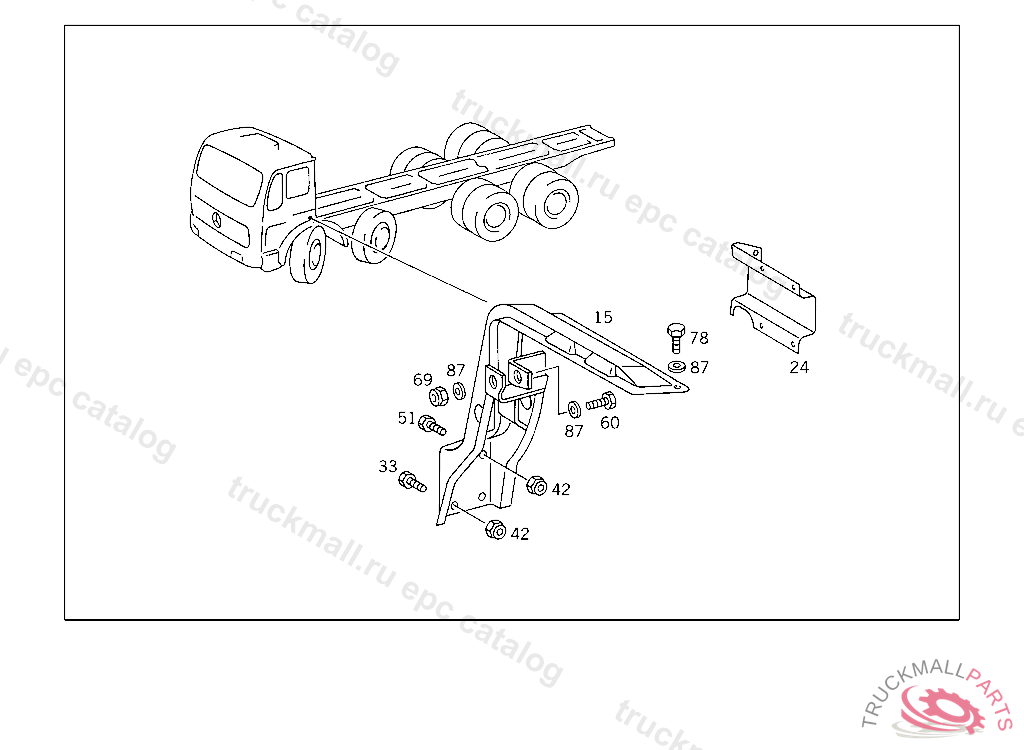

15
BRACKET LEFT FENDER
15
BRACKET RIGHT FENDER
24
BRACKET LEFT FENDER
33
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 14X48
42
NUT , Replaced By: N910113014001
42
NUT BRACKET TO SIDE MEMBER
51
SCREW MOUNTING TO CONSOLE M 14X55
60
SCREW REAR BRACKET TO FRAME
69
NUT , Replaced By: N910113014000
69
NUT STEERING SUPPORT TO FRAME
78
SCREW SUPPORT TO SIDE MEMBER M 14X45
78
SCREW , Replaced By: N308676014012
87
WASHER , Replaced By: N000125015019
87
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
WASHER CROSS MEMBER TO SUPPORT
999
FRONT FENDER REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET FENDER
999
FRONT FENDER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3818800306
