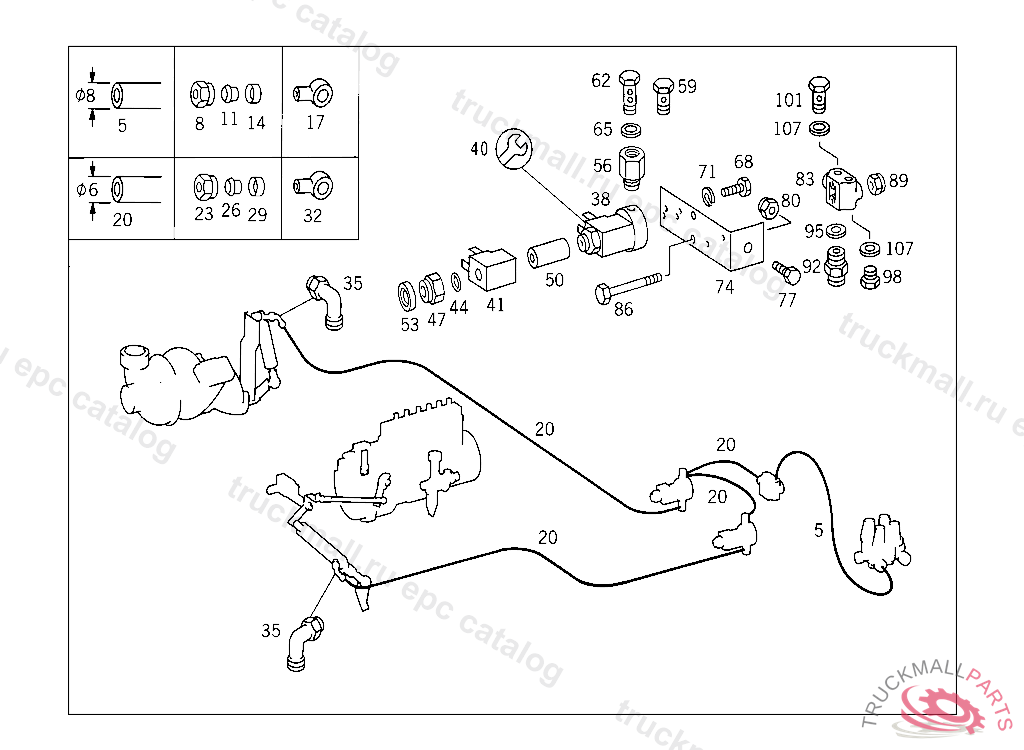

Поз.
Артикул
Описание
5
PLASTIC PIPE8X6 MM, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
SLEEVE LINE CONNECTION
14
FITTING , Replaced By: N915062006000
17
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
17
BANJO UNION HOSE WIDTH, / I.D., 6/14 MM
20
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
23
UNION NUT
26
GLAND , Replaced By: A0019901667
29
SLEEVE LEAK LINE
32
BANJO UNION6/12 MM
35
FITTING , Replaced By: A0019909871
38
VALVE , Replaced By: A3649977136, +001A3454297736, +001A3509977472
38
VALVE , Replaced By: A3869977336, +001A3454297736, +001A3509977472
38
VALVE (THREE-WAY SOLENOID VALVE)
40
REPAIR KITTO 388 997 88 36
40
REPAIR KITTO 388 997 81 36
41
SOLENOIDTO 386 997 73 36
41
MAGNET24 V, TO 364 997 71 36
44
SEAL RING
47
NUT
50
VALVE PART
53
PROTECTIVE CAP
56
FITTING SOLENOID VALVE,CONNECTION: "2"
59
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
62
HOLLOW SCREW LEFT DISTRIBUTOR,CONNECTION: "70"
65
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
68
SCREW 3/2-WAY VALVE TO BRACKET
71
LOCK WASHER T-FITTING TO BRACKET
74
BRACKET DISTRIBUTOR
77
SCREW CROSS MEMBER TO SIDE MEMBERS
80
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
83
DISTRIBUTOR
83
DISTRIBUTOR EXHAUST BRAKE VALVE LINE CONNECTION
86
SCREW BRACKET TO FRAME
89
NUT PUMP TO BRACKET
92
SCREW-IN FITTING ,D 091465
95
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
98
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
101
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
107
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
SCREW-IN FITTING OIL LINE CONNECTION
