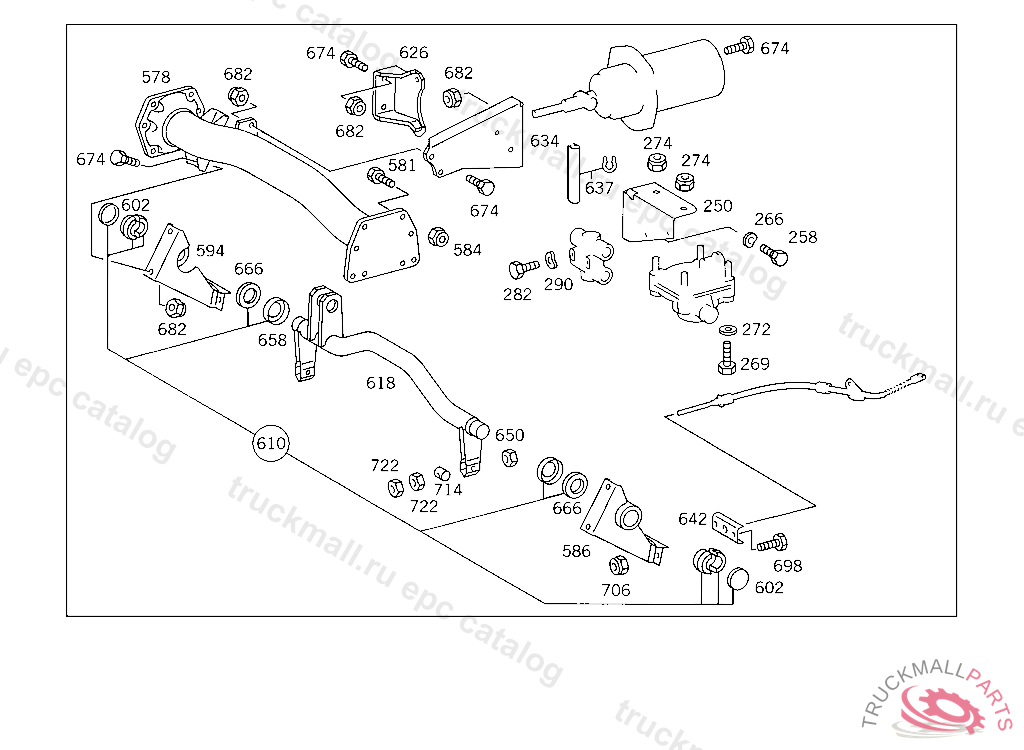

Поз.
Артикул
Описание
250
BRACKET RELAY VALVE, N 000001 P 108936
250
BRACKET , N 000000 P 108935, Replaced By: A6684302710
258
SCREW PRESSURE RELIEF VALVE TO BRACKET, UP TO CHASSIS 830917
266
SPRING WASHER , Replaced By: N000137008212
266
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
269
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
269
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
272
WASHER EXHAUST MUFFLER TO STRAP
272
WASHER
274
NUT STRAP TO BRACKET
282
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
282
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
290
SPRING WASHER , Replaced By: N000137008212
290
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
578
CROSS MEMBER REAR SPRING BRACKET NO.5, TO BE ADAPTED DURING ASSEMBLY
578
CROSS MEMBER , Replaced By: A6683104037
581
SCREWM 14X15X21X38
581
SCREWM 14X15X17X34
581
SCREWM 12X13X15X32
581
SCREWM 12X13X21X38
584
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
584
NUT STEERING SUPPORT TO FRAME
584
NUT , Replaced By: N910113014000
586
BEARING BRACKET AT CROSS MEMBER
594
BEARING BRACKET AT CROSS MEMBER
602
EXPANSION PLUG
610
BALL CUP BRAKE INTERMEDIATE SHAFT BEARING
618
BRAKE INTERMEDIATE SHAFT
626
BRACKET SPRING LOAD ACCUMULATOR TO FRAME
634
BRACKET SPRING LOAD ACCUMULATOR CYLINDER TO CROSS MEMBER
634
BRACKET , Replaced By: A6684311240
637
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
642
BRACKET CABLE
650
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
658
SEAL HOLDER
666
SEAL RING BEARING BRACKET
666
SEAL RING
674
SCREW STRUT TO CROSS MEMBER M 10X25
674
HEXAGON HEAD BOLT BRACKET TO BRACKET
682
NUT CROSS MEMBER TO SIDE MEMBERS
698
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
706
NUT STRAP TO BRACKET
714
PIN CABLE TO LEVER
722
NUT CABLE TO LEVER
722
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
FITTING ,4 261891
