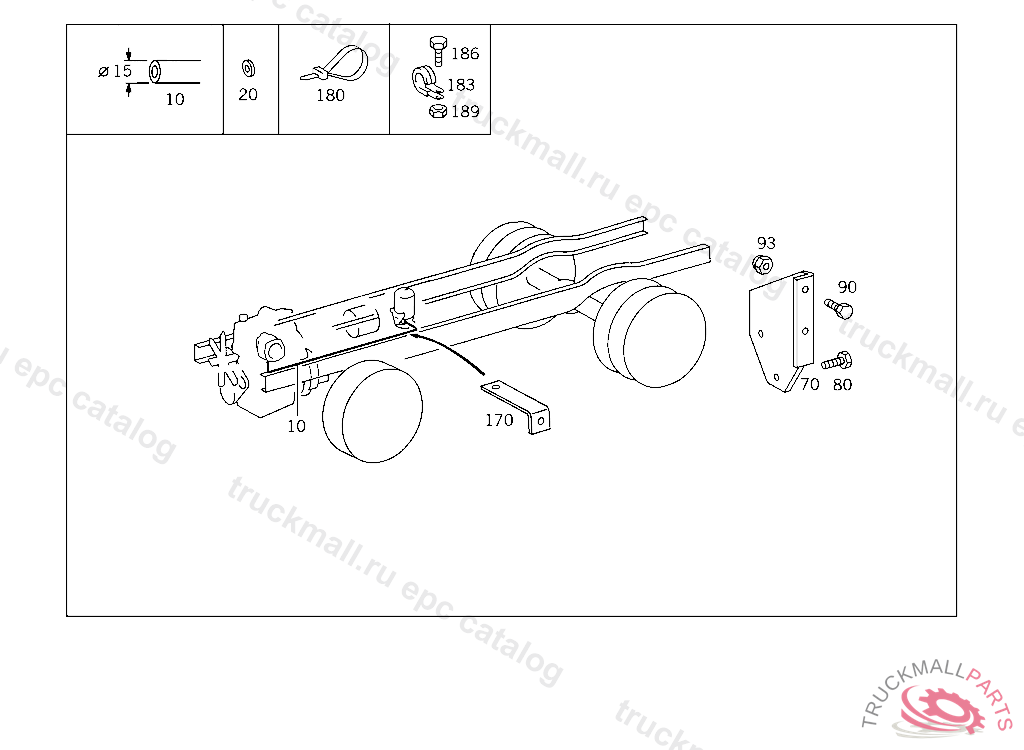

Поз.
Артикул
Описание
10
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
20
WASHER EXHAUST MUFFLER TO STRAP
70
BRACKET PRESSURE REGULATOR TO BRACKET
70
BRACKET PRESSURE REGULATOR TO BRACKET, NOT CARRIED AS A SPARE PART
80
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
90
SCREW STRUT TO CROSS MEMBER M 10X25
93
NUT CROSS MEMBER TO SIDE MEMBERS
170
BRACKET OIL LINE MOUNTING
170
BRACKET , Replaced By: A3464296040
180
LOOM TIE LINE MOUNTING 280 MM
183
CLAMP LINE MOUNTING
183
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
186
SCREW AIR COMPRESSOR LINE
189
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
