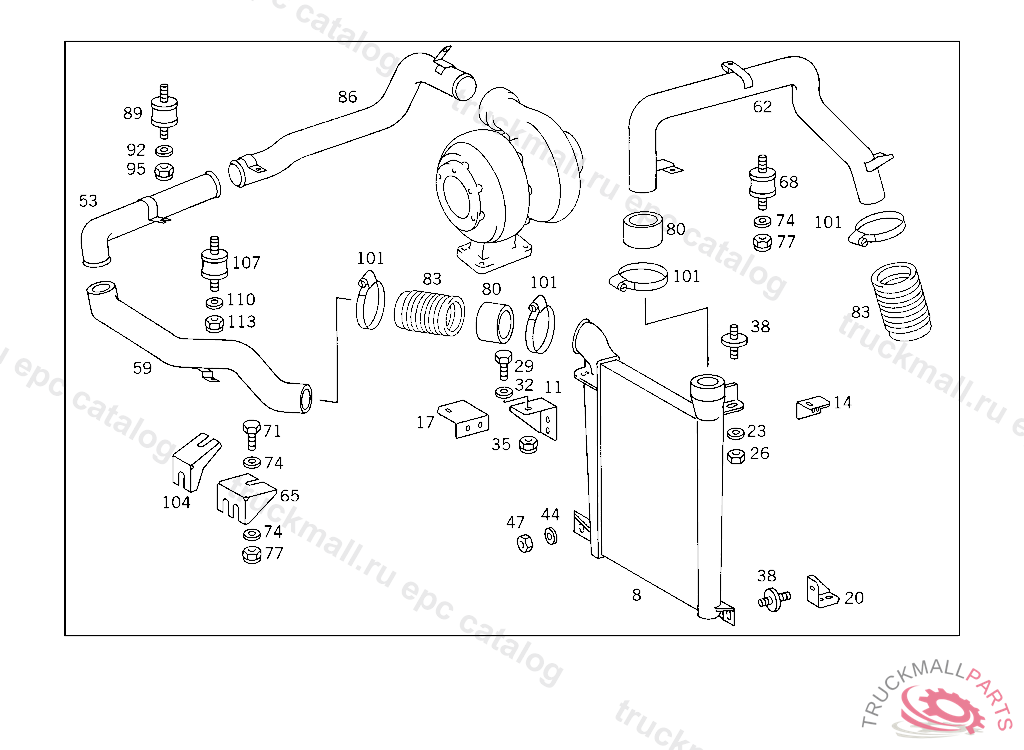

Поз.
Артикул
Описание
8
RADIATOR CHARGE AIR INTERCOOLER
11
BRACKET ON SIDE PANEL,TOP
14
BRACKET AT LEFT SIDE MEMBER
17
BRACKET CHARGE AIR INTERCOOLER
20
BRACKET CHARGE AIR INTERCOOLER
23
WASHER P.T.O. TO TRANSMISSION
23
WASHER BEARING BRACKET TO SIDE MEMBER
26
NUT , Replaced By: N913023010002
29
SCREW CLAMP TO EXHAUST PIPE
32
WASHER RADIATOR TO RUBBER MOUNTING
35
NUT STRAP TO BRACKET
38
BUFFER RADIATOR TO SUPPORT
44
WASHER P.T.O. TO TRANSMISSION
44
WASHER BEARING BRACKET TO SIDE MEMBER
47
NUT , Replaced By: N913023010002
53
59
PIPE ELBOW FROM HOSE CONNECTION TO CHARGE AIR INTERCOOLER
62
65
CONSOLE PIPE ELBOW TO SUBSTRUCTURE
68
RUBBER BUFFER COVERING TO FRAME
71
SCREW BRACKET TO CAB REAR PANEL M 8X20
74
WASHER PUMP TO CONSOLE
77
80
HOSE AIR INTAKE PIPE TO ENGINE
83
CHARGE AIR HOSE. HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
83
CHARGE AIR HOSE FROM CHARGING AIR INTERCOOLER TO ENGINE
86
86
PIPE ELBOW FROM MOLDED HOSE TO RUBBER HOSE
89
RUBBER BUFFER COVERING TO FRAME
92
WASHER PUMP TO CONSOLE
95
NUT HORN TO BRACKET M8
101
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
104
107
RUBBER BUFFER COVERING TO FRAME
110
WASHER PUMP TO CONSOLE
113
NUT HORN TO BRACKET M8
