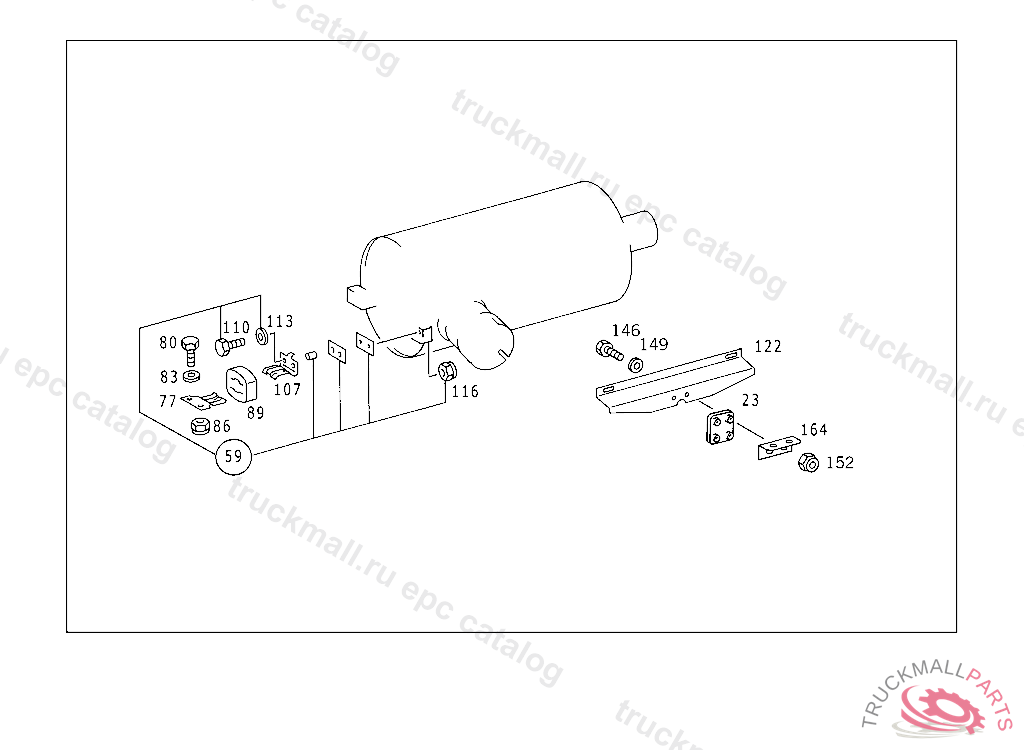

Поз.
Артикул
Описание
23
DAMPING PAD EXHAUST MUFFLER TO SUBSTRUCTURE,047203
59
SUSPENSION EXHAUST MUFFLER SUSPENSION
77
CONSOLE EXHAUST MUFFLER TO SUBSTRUCTURE
80
SCREW CLAMP TO EXHAUST PIPE
83
WASHER
83
WASHER P.T.O. TO TRANSMISSION
86
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
89
DAMPING PAD EXHAUST MUFFLER SUSPENSION
107
CONSOLE EXHAUST MUFFLER
110
SCREW BRACKET TO CAB REAR PANEL M 8X20
110
SCREW VALVE TO BRACKET M 8X60
110
SCREW , Replaced By: N304017008053
110
SCREW PIPE CLAMP
113
WASHER PULL ROD TO SHIFT LEVER
116
NUT HORN TO BRACKET M8
116
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
122
BRACKET SENDER UNIT TO BRACKET
122
146
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
146
SCREW BRACKET TO CAB REAR PANEL M 8X20
146
SCREW PIPE CLAMP
146
SCREW SHOCK ABSORBER TO CONSOLE
149
WASHER TRAILER PLUG SOCKET TO BRACKET
149
WASHER EXHAUST MUFFLER TO STRAP
152
NUT HORN TO BRACKET M8
152
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
164
BRACKET
