Поз.
Артикул
Описание

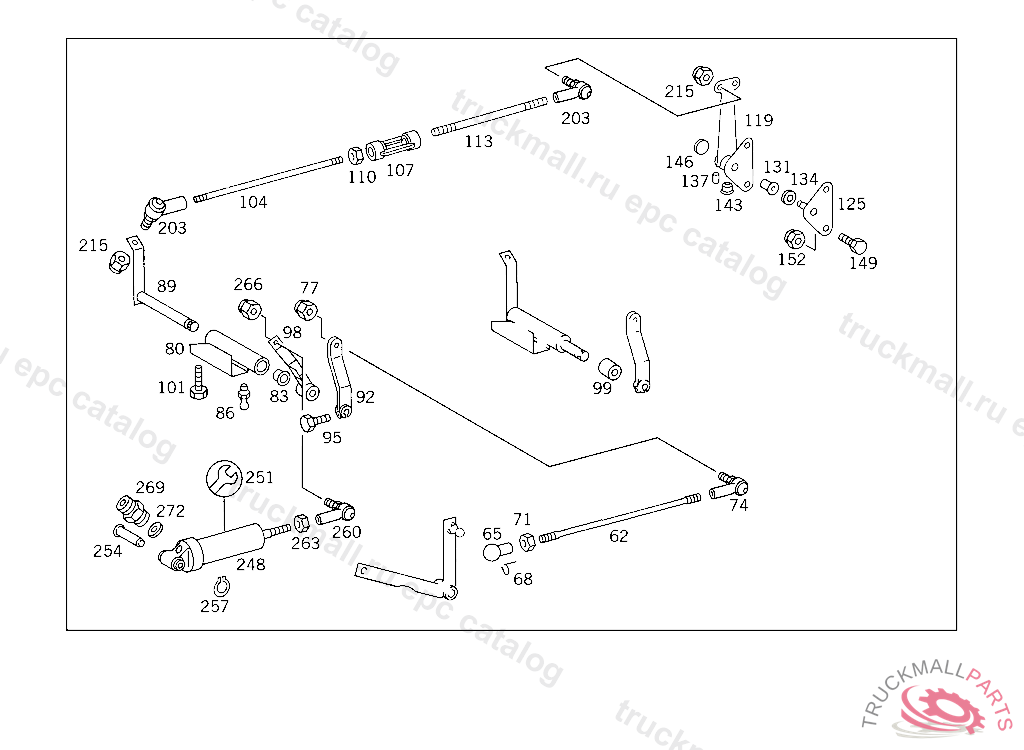

62
PULL ROD FROM REVERSING LEVER TO CONTROL LEVER 6X1100X50/50
65
BALL SOCKET L.H. THREAD
68
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
71
NUT BRACKET TO FIRE WALL
74
JOINT PULL ROD
77
NUT HORN TO BRACKET M8
77
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
80
83
BUSHING
86
GREASE NIPPLE
86
GREASE NIPPLE INTERMEDIATE LEVER
89
92
LEVER CONTROL LEVER
95
SCREW COVERING TO BODY M 6 X 20,230416
98
99
101
SCREW , Replaced By: N910143008000
101
SCREW. HEXAGON HEAD BOLT ON AIR INTAKE PIPE BRACKET M 8X16
104
107
TURNBUCKLE FROM TURNBUCKLE IN FRONT OF REAR AXLE TO TURNBUCKLE BEHIND REAR AXLE
110
NUT L.H. THREAD
113
119
LEVER (INTERMEDIATE LEVER)
125
PIN
131
BUSHING ,950252
134
SEAL RING
137
CYLINDRICAL PIN
143
GREASE NIPPLE , Replaced By: A0009970488
146
EXPANSION PLUG SHUT-OFF LEVER
149
SCREWM 8X20
149
SCREW BRACKET TO CAB REAR PANEL M 8X20
152
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
152
NUT HORN TO BRACKET M8
203
JOINT PULL ROD
215
NUT HEATING PIPE TO BRACKET
248
CYLINDER ENGINE SHUT-OFF, NOT FOR USE WITH MERCEDES-BENZ BODY FROM IDENT NO.033579 ALSO INSTALLED ON 033627 EXCEPT FOR 033588,033589,033610,033620,033621,033641,033649,033650. FOR USE WITH MERCEDES-BENZ BODY FROM IDENT NO.033581 ALSO INSTALLED ON 033627 EXCEPT FOR 033588,033589,033610,033620,033621,033641,033649,033650.
251
REPAIR KIT POWER CYLINDER
254
257
260
JOINT
263
NUT HORN TO BRACKET M8
266
NUT HORN TO BRACKET M8
269
TS DOUBLE FITTING SOLENOID VALVE
272
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
