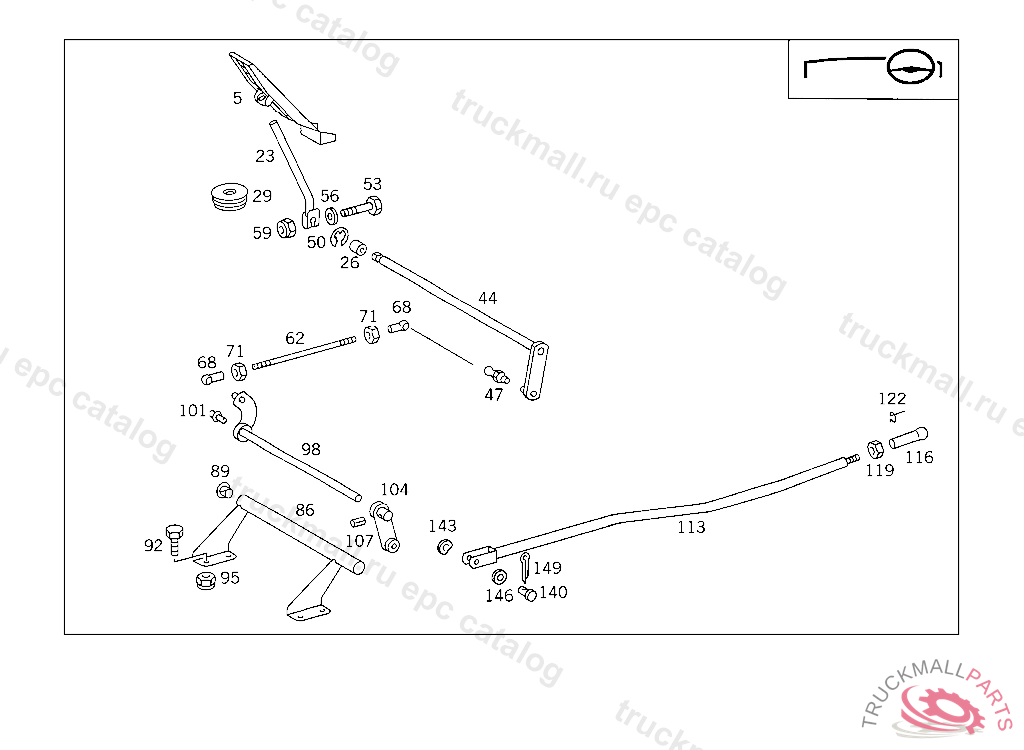

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
23
LEVER ACCELERATOR PEDAL
26
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
29
GROMMET CONTROL ROD COVERING
44
SHAFT CONTROL, DELIVER ADDITIONALLY:1X006799 0090025 552122
44
SHAFT CONTROL,5 552123
47
BALL PIVOT
50
LOCK PLATE
50
RETAINING RING CONTROL SHAFT TO CAB,5 188249
53
SCREW , Replaced By: N304017006012
53
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
56
WASHER COMPRESSED AIR LINE TO BRACKET
56
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
59
NUT PUMP TO BRACKET
59
NUT , Replaced By: N913004006001
62
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
68
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
68
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
71
NUT BALL PIVOT TO LEVER
86
BEARING TUBE CONTROL SHAFT
89
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
92
SCREW , Replaced By: N304017008016
92
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
95
NUT , Replaced By: N913004008001
98
SHAFT (CONTROL SHAFT)
101
BALL PIVOT
104
LEVER (CONTROL LEVER)
107
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
107
CLAMPING SLEEVE , Replaced By: N308752004001
113
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE,5 4232975 573246
116
BALL SOCKET ROD TO BALL PIVOT
119
NUT
122
SECURING CLIP. CIRCLIP
140
PIN WIRE CABLE TO LEVER
143
SPRING WASHER , Replaced By: N000137008212
143
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
146
WASHER BRACKET TO CROSS MEMBER
149
COTTER PIN LEVER TO ROD
149
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE
999
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE
