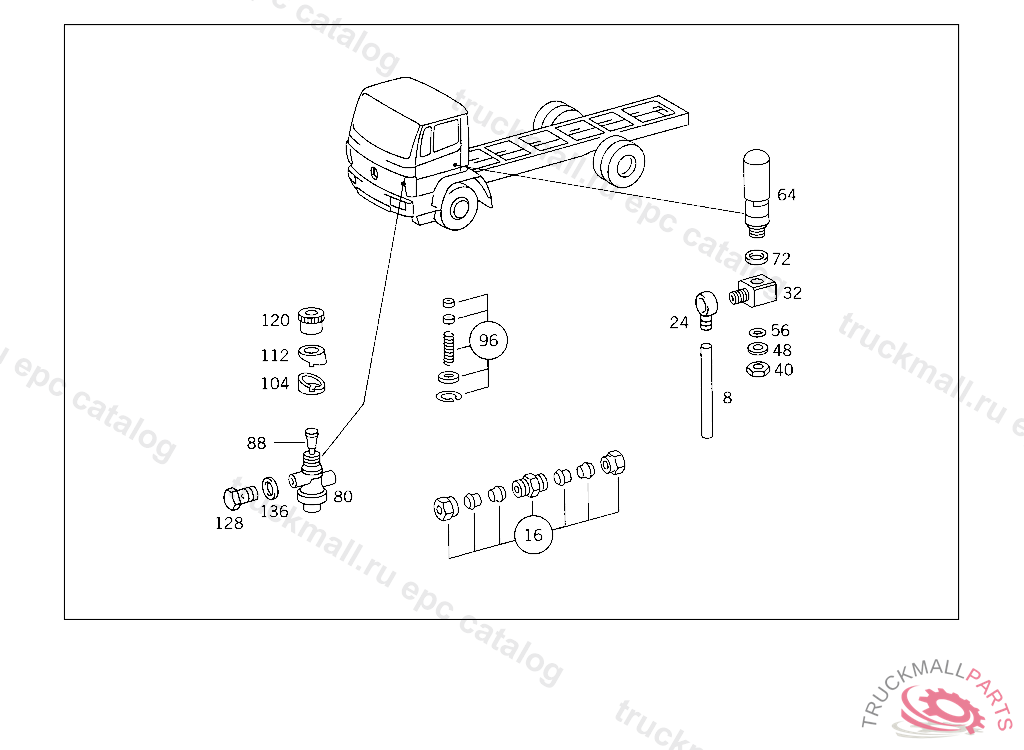

Поз.
Артикул
Описание
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
16
FITTING , Replaced By: A0029905971
16
FITTING (PARTS KIT),LINE RUPTURE
24
BANJO UNION HEATING CONNECTION,K 169122
32
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"
40
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
48
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
56
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
64
VALVE PRESSURE LIMIT,K 025180
64
VALVE ,K 025179, Replaced By: A0044297044
72
SEAL RING VALVE TO VALVE,K 025179
80
VALVE TWO-WAY,4 685151
88
KNOB ,5 558612
96
REPAIR KITTO 001 429 55 44
104
SPACER RING STARTER PILOT PUMP TO WINDOW SILL
112
SPACER RING STARTER PILOT PUMP TO WINDOW SILL
120
NUT STARTER PILOT PUMP TO WINDOW SILL
128
HOLLOW SCREW , Replaced By: N915036010108
128
HOLLOW SCREW FUEL LINE TO FEED PUMP
136
SEAL RING FUEL LINE TO FEED PUMP
999
NUT CHECK VALVE TO AIR RESERVOIR
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
999
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
999
VALVE (SAFETY VALVE) WABCO 10 BAR
999
T-FITTING LINE CONNECTION
999
SCREW. UNION SCREW LINE CONNECTION
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
CROSS FITTING AIR RESERVOIR,CONNECTION: "32"
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
