Поз.
Артикул
Описание

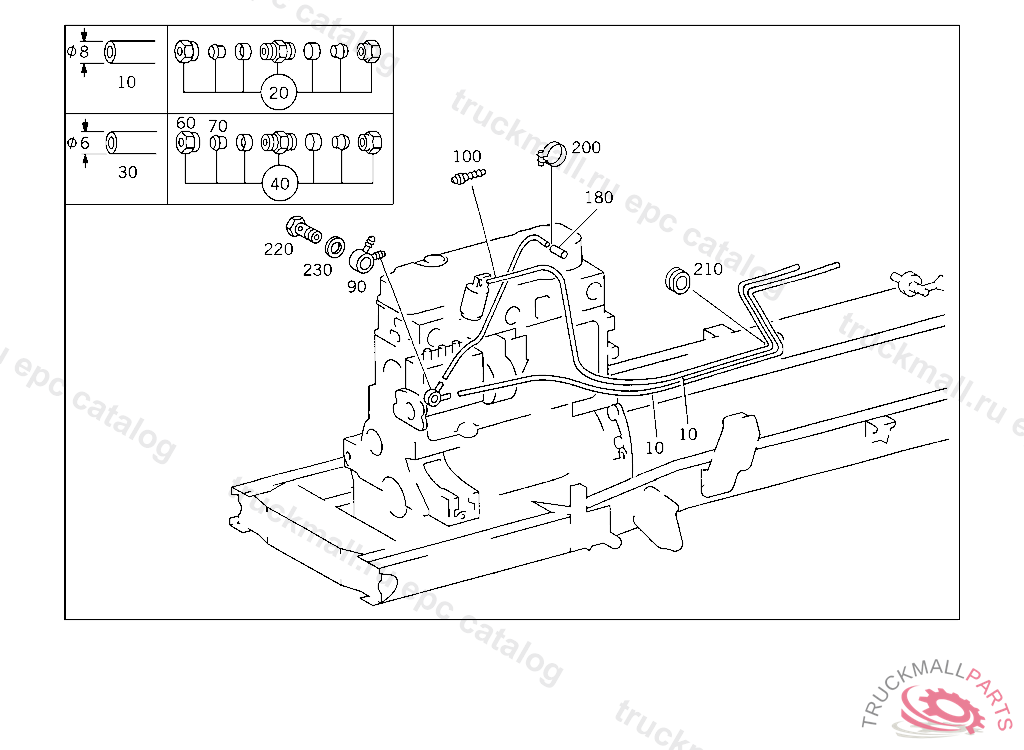

10
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
20
FITTING (PARTS KIT),LINE RUPTURE
30
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
30
PLASTIC PIPE RISING PIPE 4X6 MM
30
PLASTIC PIPE RISING PIPE 4X6 MM
40
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
60
UNION NUT
70
SLEEVE LEAK LINE
90
BANJO UNION FEED LINE,K 169122
90
BANJO UNION FEED LINE
100
FITTING RETURN LINE,K 169122
100
FITTING RETURN LINE
180
HOSE LEAK LINE, ORDER BY THE METER
180
HOSE LEAK LINE, ORDER BY THE METER
180
HOSE LEAK LINE, ORDER BY THE METER
200
CLAMP , Replaced By: N000000000665
200
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
200
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
200
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
200
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
210
GROMMET FOR PASSAGE OF LINE
220
HOLLOW SCREW FUEL LINE TO FEED PUMP
220
HOLLOW SCREW HAND PUMP,K 169122
220
HOLLOW SCREW , Replaced By: N915036010108
230
SEAL RING FUEL LINE TO FEED PUMP
230
SEAL RING FUEL LINE TO FEED PUMP
999
COVER BREATHING
999
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
999
CONNECTOR LINE CONNECTION
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: A3609902340
