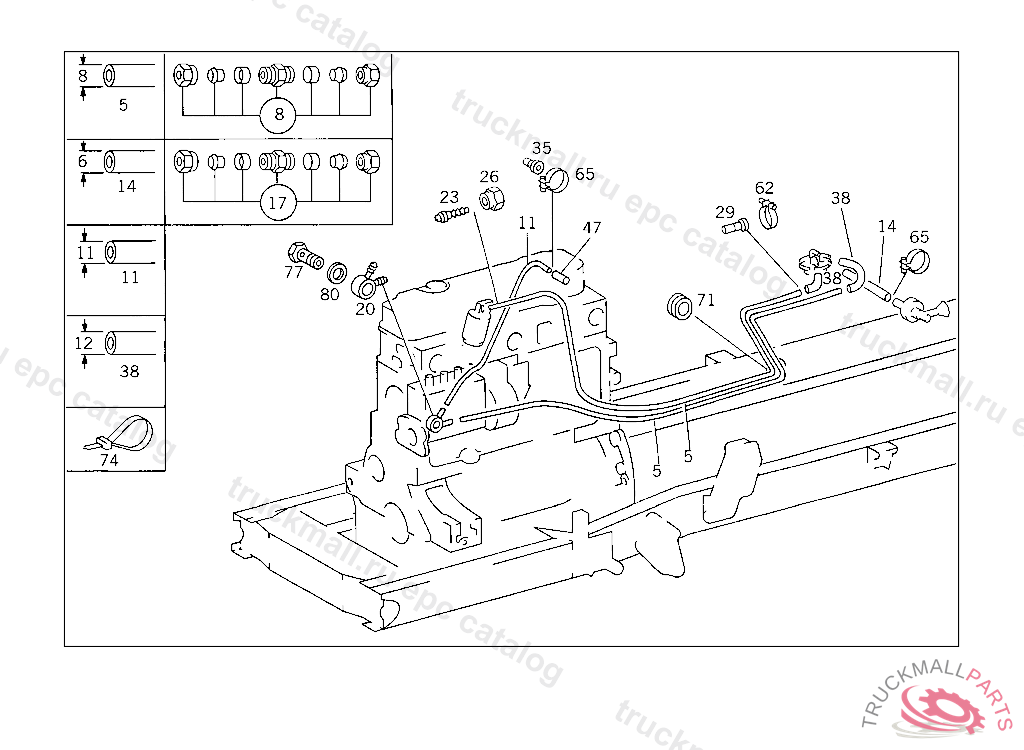

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING , Replaced By: A0029905971
8
FITTING (PARTS KIT),LINE RUPTURE
11
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
14
PLASTIC PIPE RISING PIPE 4X6 MM
14
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
17
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
20
BANJO UNION FEED LINE
23
FITTING RETURN LINE
26
UNION NUT
29
SLEEVE LINE CONNECTION
35
SLEEVE LEAK LINE
38
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
47
HOSE LEAK LINE, ORDER BY THE METER
62
CLAMP LINE CONNECTION
62
LOOM TIE VENT VALVE TO FUEL TANK
62
LOOM TIE , Replaced By: N916002012100
65
CLAMP CHECK VALVE,K 169122
65
CLAMP LINE MOUNTING
71
GROMMET FOR PASSAGE OF LINE
71
GROMMET BATTERY CABLE THRU SIDE MEMBER
74
LOOM TIE LINE MOUNTING
74
LOOM TIE LINE MOUNTING 280 MM
77
HOLLOW SCREW , Replaced By: N915036010108
77
HOLLOW SCREW FUEL LINE TO FEED PUMP
80
SEAL RINGTO 000 553 03 05,000 553 18 05,
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
