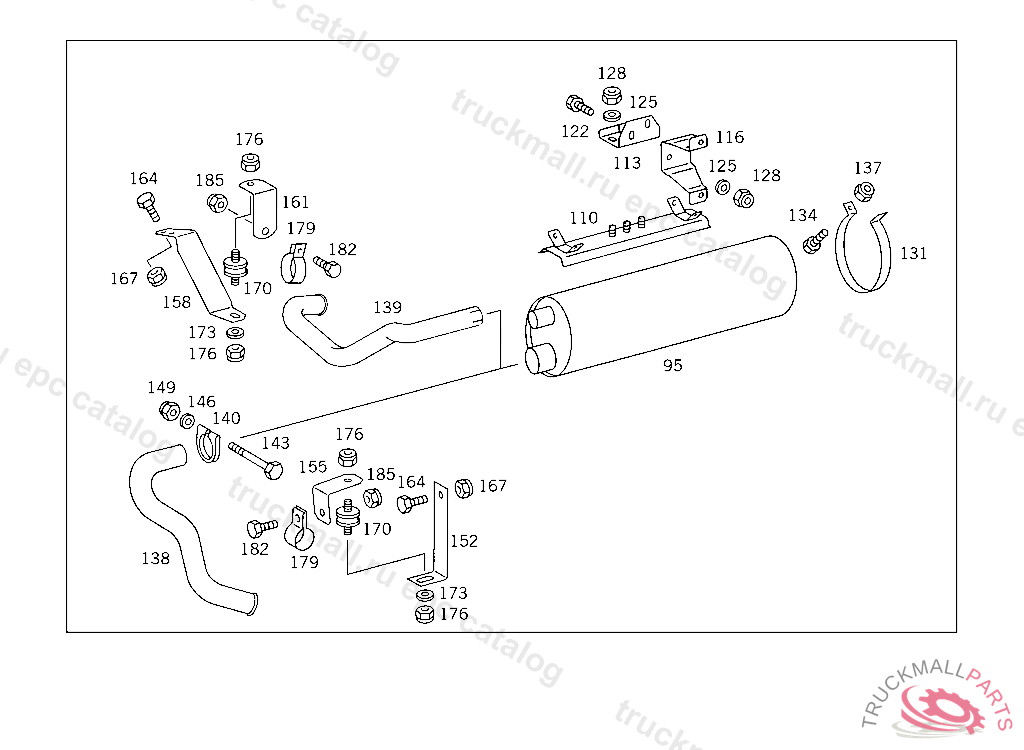

Поз.
Артикул
Описание
95
EXHAUST MUFFLER , NOT USED
110
SUPPORT EXHAUST MUFFLER TO BRACKET
113
BRACKET EXHAUST MUFFLER TO BRACKET
116
BRACKET EXHAUST MUFFLER
122
SCREW EXHAUST PIPE TO SIDE MEMBER
125
WASHER , Replaced By: N007349010007
125
WASHER STRUT TO CROSS MEMBER
128
NUT , Replaced By: N910113010000
128
NUT STRAP TO BRACKET
131
STRAP EXHAUST MUFFLER TO SIDE MEMBER
131
BRACKET , Replaced By: A6744914541
134
SCREW , Replaced By: N910105010009
134
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
137
NUT , Replaced By: N910113010000
137
NUT STRAP TO BRACKET
138
REAR EXHAUST PIPE TAIL PIPE,FRONT
139
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 743553
140
CLAMP REAR EXHAUST PIPE TO MUFFLER
143
SCREW , Replaced By: N910143008014
143
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
146
WASHER , Replaced By: N000125008443
146
WASHER EXHAUST MUFFLER TO STRAP
149
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
149
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
149
NUT , Replaced By: N913004008001
152
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
155
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
158
BRACKET ON AIR CLEANER BRACKET
161
BRACKET ON AIR CLEANER BRACKET
164
SCREW , Replaced By: N304017008021
164
SCREW PIPE CLAMP
164
SCREW PIPE CLAMP
167
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
167
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
167
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
167
NUT , Replaced By: N913004008001
170
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
173
WASHER , Replaced By: N006902011100
173
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
173
WASHER , Replaced By: N006902011102
176
NUT , Replaced By: N910113010000
176
NUT STRAP TO BRACKET
179
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
182
SCREW , Replaced By: N910105010011
182
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
185
NUT , Replaced By: N910113010000
185
NUT STRAP TO BRACKET
